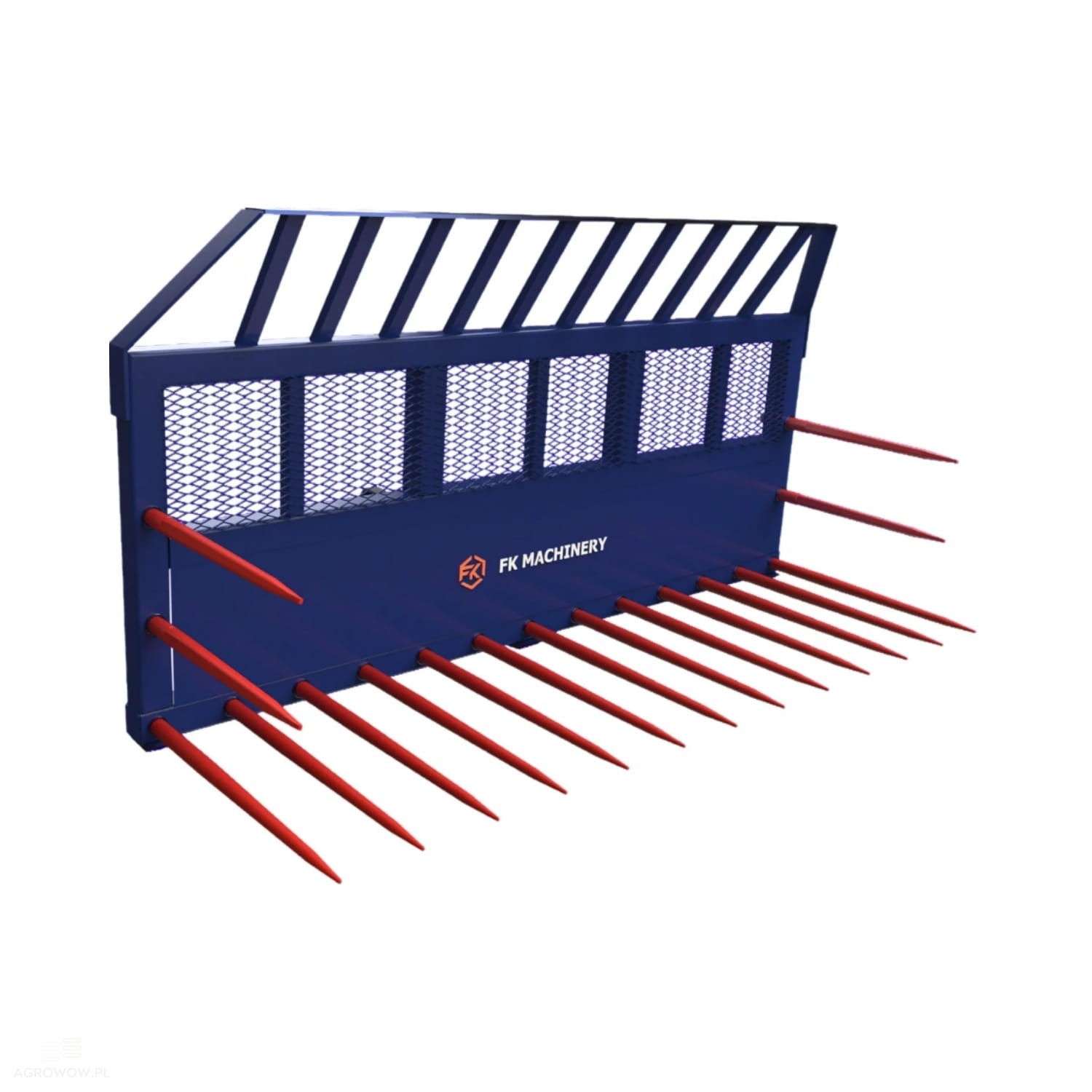

Kołaszewski manure fork MAXI TELESKOP 2.2 x 1.35 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KXLMMF220

- Manufacturer's name: MAXI TELESKOP manure fork

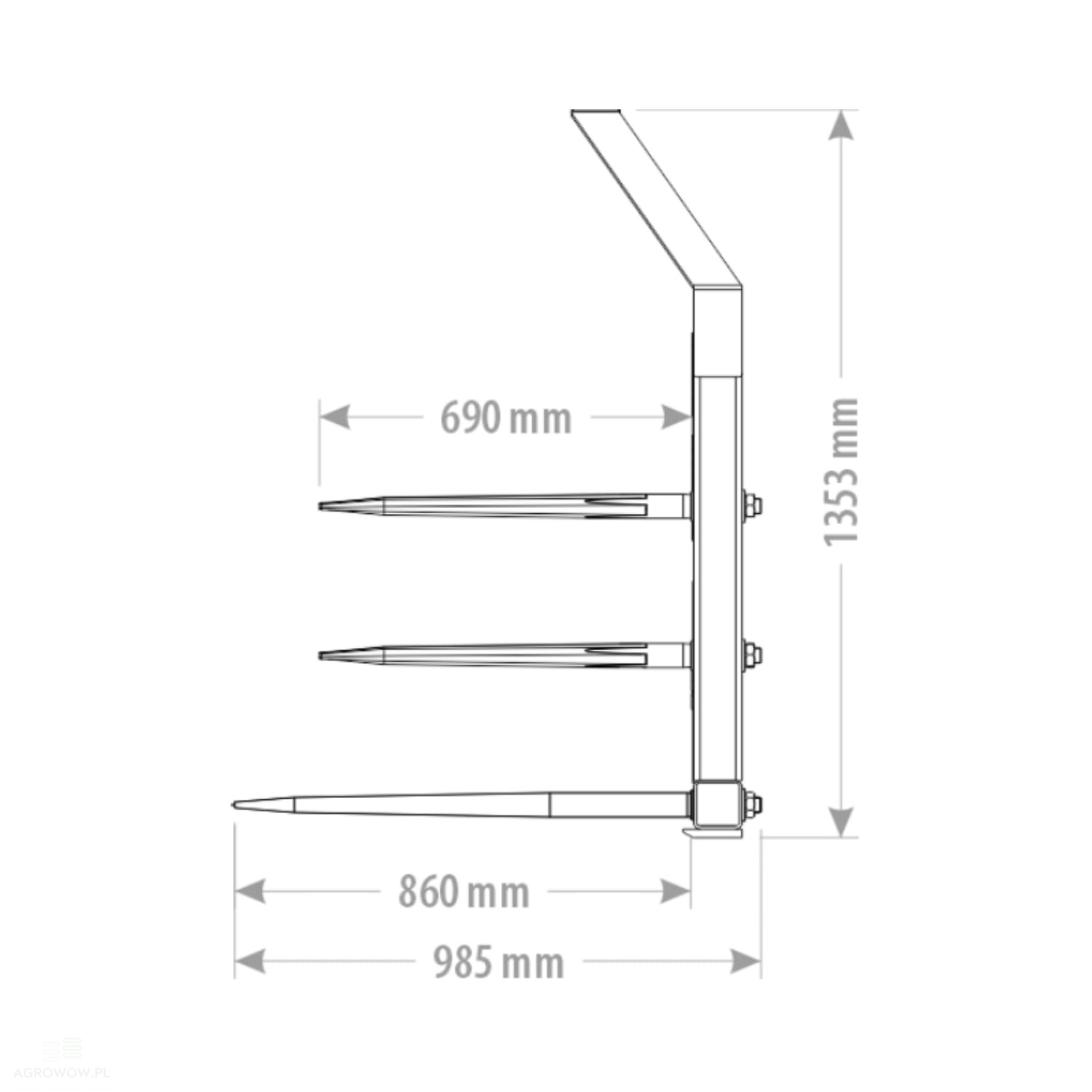

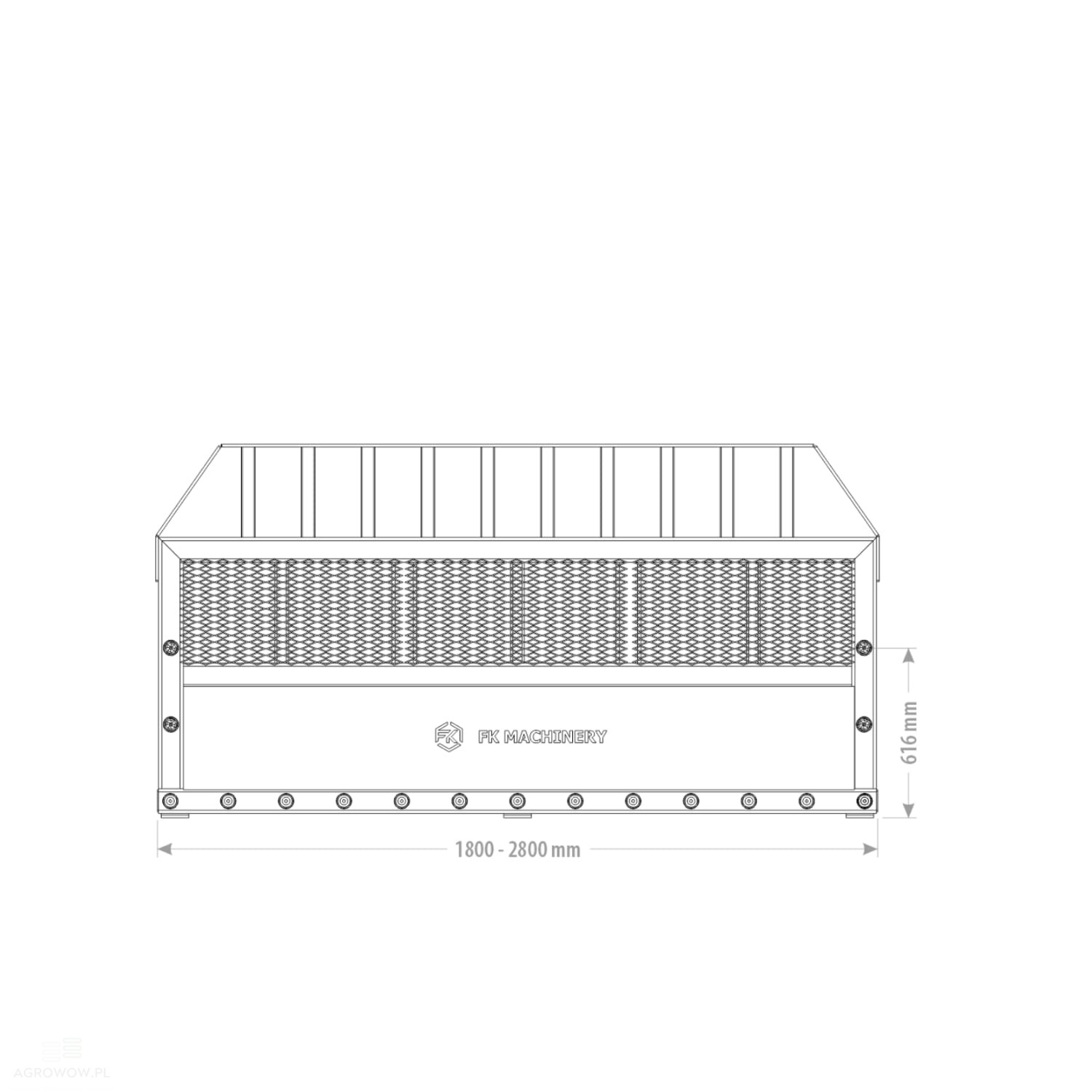

- Width: 2200 mm

- Length: 985 mm

- Tine length: 860 mm

- Height: 1353 mm

- Capacity: 1.67 m³

- Weight: 369 kg

- Number of tines: 11

- Heavy-walled profile construction

- Tine mountings reinforced with conical sleeves

- Tines: forged

- Mesh screen for better visibility

Detailed Description:

• The MAXI TELESKOP manure fork with a width of 2200 mm is a solid and efficient tool designed for demanding working conditions on large agricultural farms. Adapted for telehandlers, it enables efficient handling of a wide range of organic materials, such as manure, silage, straw, compost, or other agricultural waste, even when highly compacted and moist.



• The working width of 2200 mm and a capacity of 1.67 m³ allow for the single loading of a significant amount of material, which helps reduce the number of work cycles and shortens operational time. Dimensions of 985 mm in length and 1353 mm in height ensure stability and full utilization of the telehandler's potential when working at various heights and in challenging spatial conditions.



• The construction is made of heavy-walled steel profiles, which provides exceptional durability and resistance to stress, twisting, and mechanical damage. Thanks to this, the tool performs perfectly during intensive, daily exploitation, even in the most demanding terrain conditions.



• The model is equipped with eleven forged tines with a length of 860 mm, the distribution of which has been optimized to ensure an even distribution of the load. These tines feature high resistance to bending, wear, and deformation, which translates into their long service life and effective penetration into compacted materials.



• The tine mounting system has been reinforced with conical sleeves, which significantly increases the rigidity of the connections, prevents them from loosening during work, and minimizes the need for frequent service inspections. This is a practical and durable solution that increases the reliability of the entire tool.



• The total weight of the fork is 369 kg, which guarantees high stability even under full load. Despite its substantial mass, the tool maintains good maneuverability, allowing for precise operation also in restricted working spaces while fully utilizing the power of the telehandler.



• The operator's visibility during work is supported by a steel protective mesh screen, which not only increases maneuvering safety but also facilitates accurate scooping of material near obstacles, clamp walls, or inside enclosed farm buildings.



• The fork is equipped with an EURO-type mounting system, which allows for quick and easy attachment to most available telehandler models without the need for additional adapters. Such versatility facilitates its deployment across various conditions and loading systems.



• The MAXI TELESKOP 2200 mm model performs excellently both during regular, daily farm tasks and for more intensive seasonal jobs. Thanks to its large capacity and durability, the tool significantly increases the pace of work and allows for the efficient management of bulk materials on the farm.



• With proper use and maintenance, the fork retains its technical properties for many seasons, offering safety, comfort, and high performance. It is an investment that translates into real savings and more effective resource management in modern agriculture.
