Kołaszewski manure fork MAXI TELESKOP 2.4 x 1.35 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KXLMMF240

- Manufacturer's name: MAXI TELESKOP manure fork

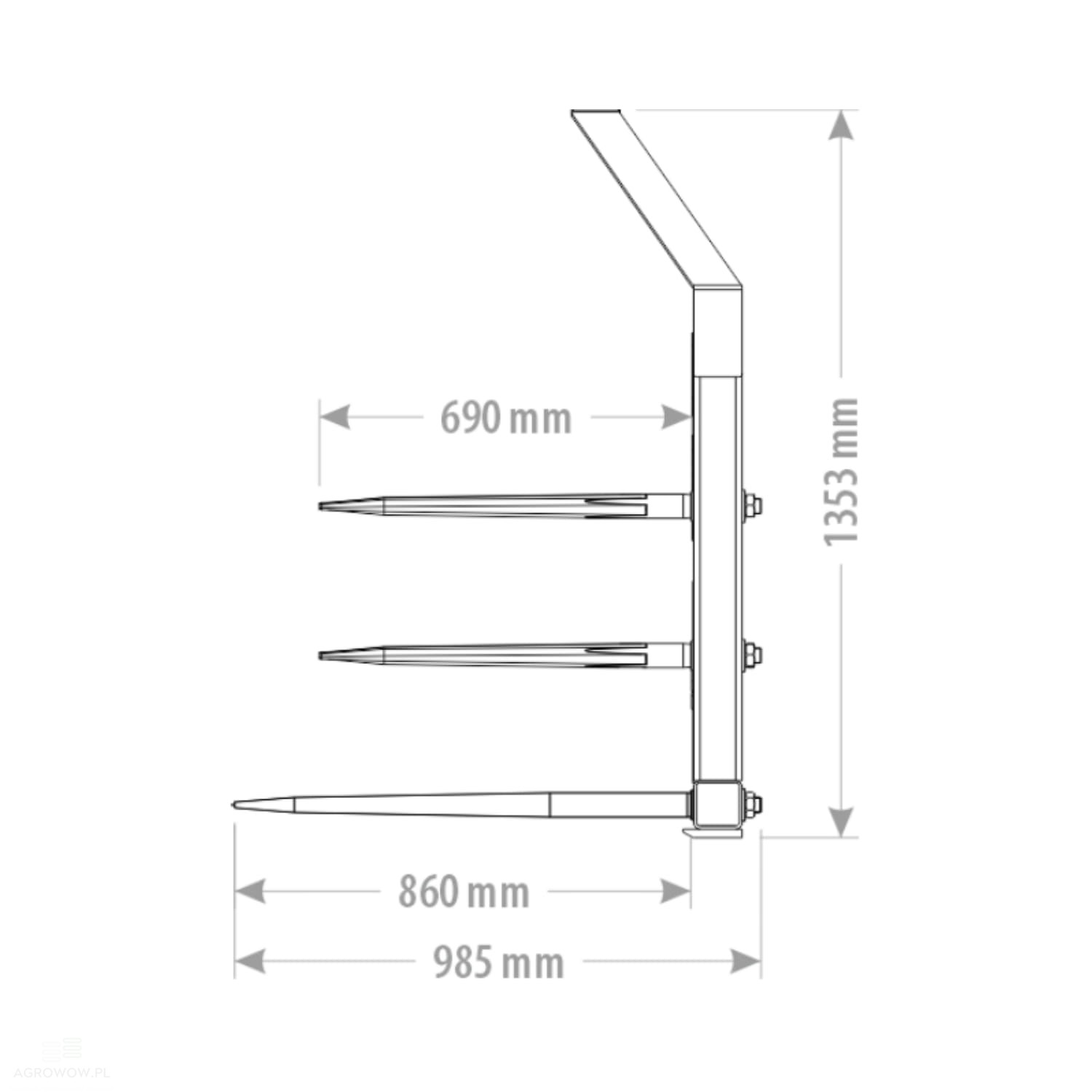

- Width: 2400 mm

- Length: 985 mm

- Tine length: 860 mm

- Height: 1353 mm

- Capacity: 1.82 m³

- Weight: 401 kg

- Number of tines: 12

- Heavy-walled profile construction

- Tine mountings reinforced with conical sleeves

- Tines: forged

- Mesh screen for better visibility

Detailed Description:

• The MAXI TELESKOP manure fork with a width of 2400 mm is a durable and high-capacity tool built for intensive exploitation on large agricultural farms. Designed to work in combination with telehandlers, it is perfectly suited for loading and transporting manure, silage, straw, compost, and other materials with high moisture content and compaction.

• The impressive working width of 2400 mm and a capacity of 1.82 m³ enable the loading of a large amount of material at one time, which significantly shortens working hours and reduces the number of field runs. Dimensions of 985 mm in length and 1353 mm in height provide stability and allow for full utilization of the telehandler's capabilities when working at various heights and in diverse terrain conditions.

• The construction of the fork is based on heavy-walled steel profiles, which guarantees resistance to intensive loads, impacts, and deformations. The well-thought-out design allows for long-term operation even in difficult working conditions, without the risk of mechanical damage.

• The tool is equipped with twelve forged tines with a length of 860 mm, which are characterized by high resistance to wear, bending, and cracking. Their distribution has been designed to allow an even distribution of force, which translates into effective penetration into compacted materials and greater comfort for the operator.

• In order to increase the durability and rigidity of the entire structure, reinforced tine mountings using conical sleeves were applied. This solution eliminates the risk of connections loosening and extends the service life of the tool even during intensive use.

• The unladen weight of the fork, amounting to 401 kg, provides a solid foundation for working with heavy loads, while guaranteeing an appropriate balance between strength and maneuverability. Well-chosen proportions allow for stable and safe operation without overloading the carrier machine.

• To increase operator comfort and safety, the construction is equipped with a steel mesh screen, which improves visibility and facilitates precise maneuvering, especially in tight spaces or near obstacles.

• The universal EURO-type mounting system allows for quick and trouble-free connection of the tool to most telehandler models available on the market. This makes the fork extremely functional and easy to integrate into an existing machinery fleet.

• The MAXI TELESKOP 2400 mm model performs excellently both in daily work and during intensive seasonal tasks. The large capacity and solid construction ensure high efficiency and streamline the organization of work on the farm.

• Regular maintenance and use in accordance with the manufacturer's recommendations guarantee a long service life and reliability of the tool. The MAXI TELESKOP 2400 mm fork is a practical and effective solution for modern farms that focus on professionalism and maximum work efficiency.
