Kołaszewski manure fork MIKRO 1.0 x 0.5 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KAMMF10

- Manufacturer's name: MIKRO manure fork

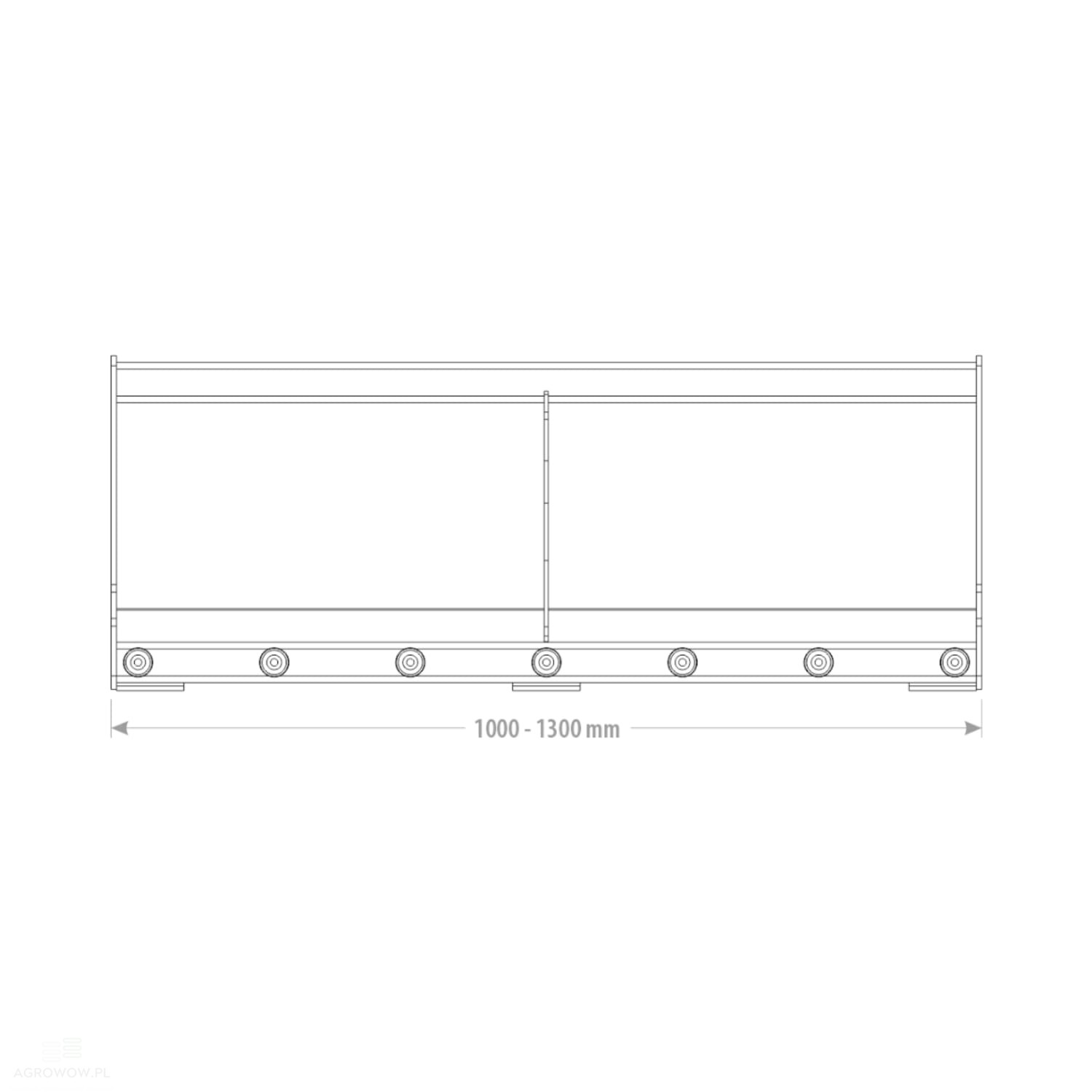

- Width: 1000 mm

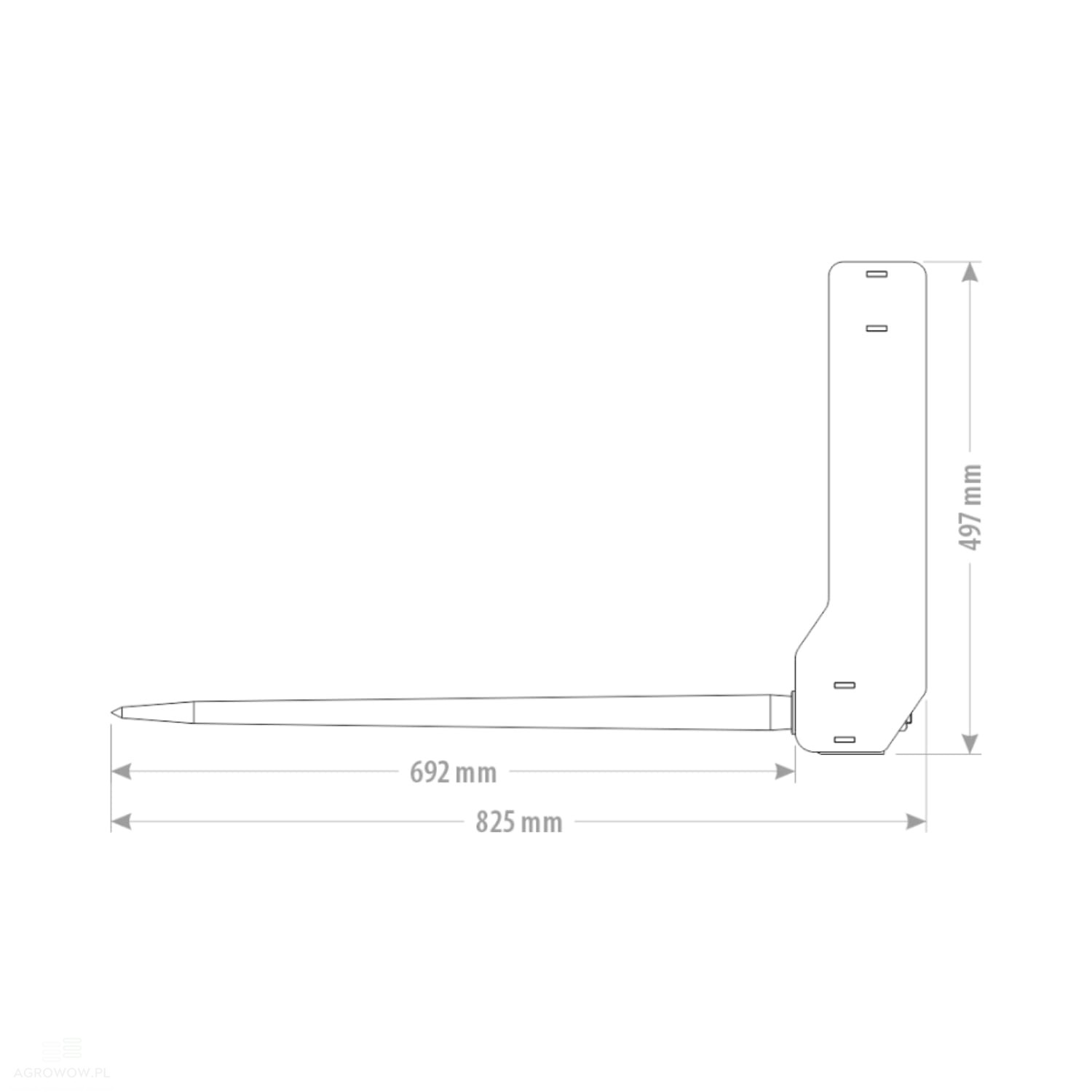

- Length: 825 mm

- Tine length: 692 mm

- Height: 497 mm

- Capacity: 0.35 m³

- Weight: 76 kg

- Number of tines: 6

- Side plate thickness: 5 mm

- Heavy-walled profile construction

- Tine mountings reinforced with conical sleeves

- Tines: forged L-810 M22

Detailed Description:

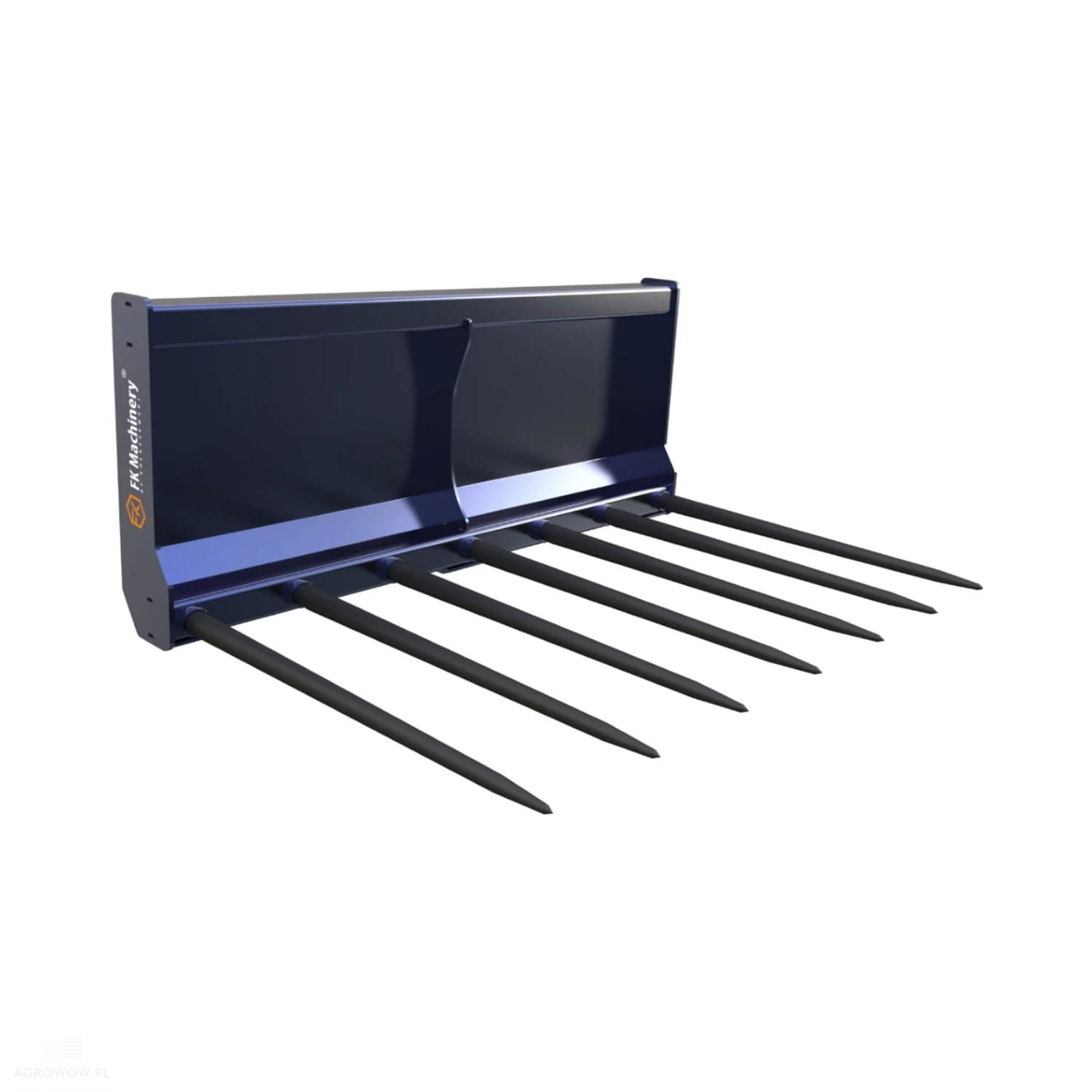

• The MIKRO manure fork with a width of 1000 mm is a compact and durable agricultural tool, ideal for working on smaller farms and in areas with limited space. Despite its small dimensions, the design retains full functionality and durability, ensuring efficient movement of manure, silage, straw, compost, or other bulk materials.

• The working width of 1000 mm and capacity of 0.35 m³ make the fork highly maneuverable and well-suited for tight barns, narrow corridors, and other hard-to-reach places. The overall length of 825 mm and height of 497 mm allow for precise equipment operation while maintaining appropriate stability during work.

• The entire construction is made of heavy-walled, high-strength steel profiles, translating into resistance against deformation, impacts, and mechanical loads. This solution ensures a long service life and safe usage even under difficult operating conditions.

• Equipped with six forged L-810 M22 tines with a length of 692 mm, the fork ensures effective penetration into compacted material. The tines are spaced to distribute the load evenly, which increases loading efficiency and protects the structure from excessive wear.

• To increase the tool's stability and lifespan, conical sleeves are utilized at the tine mounting points. This type of solution prevents the loosening of joints and increases the rigidity of the entire structure, even during intensive operation.

• An unladen weight of just 76 kg makes the fork lightweight and easy to handle, which translates into lower fuel consumption, a reduced load on the machine's running gear, and easier maneuvering—particularly important on small farms and when working with loaders of limited lifting capacity.

• The standard EURO-type mounting system allows for quick and trouble-free connection of the fork to most popular models of front loaders and telehandlers, enabling flexible use of the equipment across various agricultural tasks.

• Thanks to its design and universal application, the MIKRO 1000 mm fork performs excellently during both daily tasks and seasonal work, enabling efficient work organization and a reduction in material losses.

• Regular maintenance and proper operation keep the tool fully functional for many years. It is a practical and economical choice for farms that value quality, reliability, and simplicity of use.

• The MIKRO manure fork with a width of 1000 mm is an excellent combination of compactness, durability, and functionality, successfully meeting the daily challenges of any modern, even small-scale, farm.
