Kołaszewski manure fork MIKRO 1.4 x 0.5 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KAMMF14

- Manufacturer's name: MIKRO manure fork

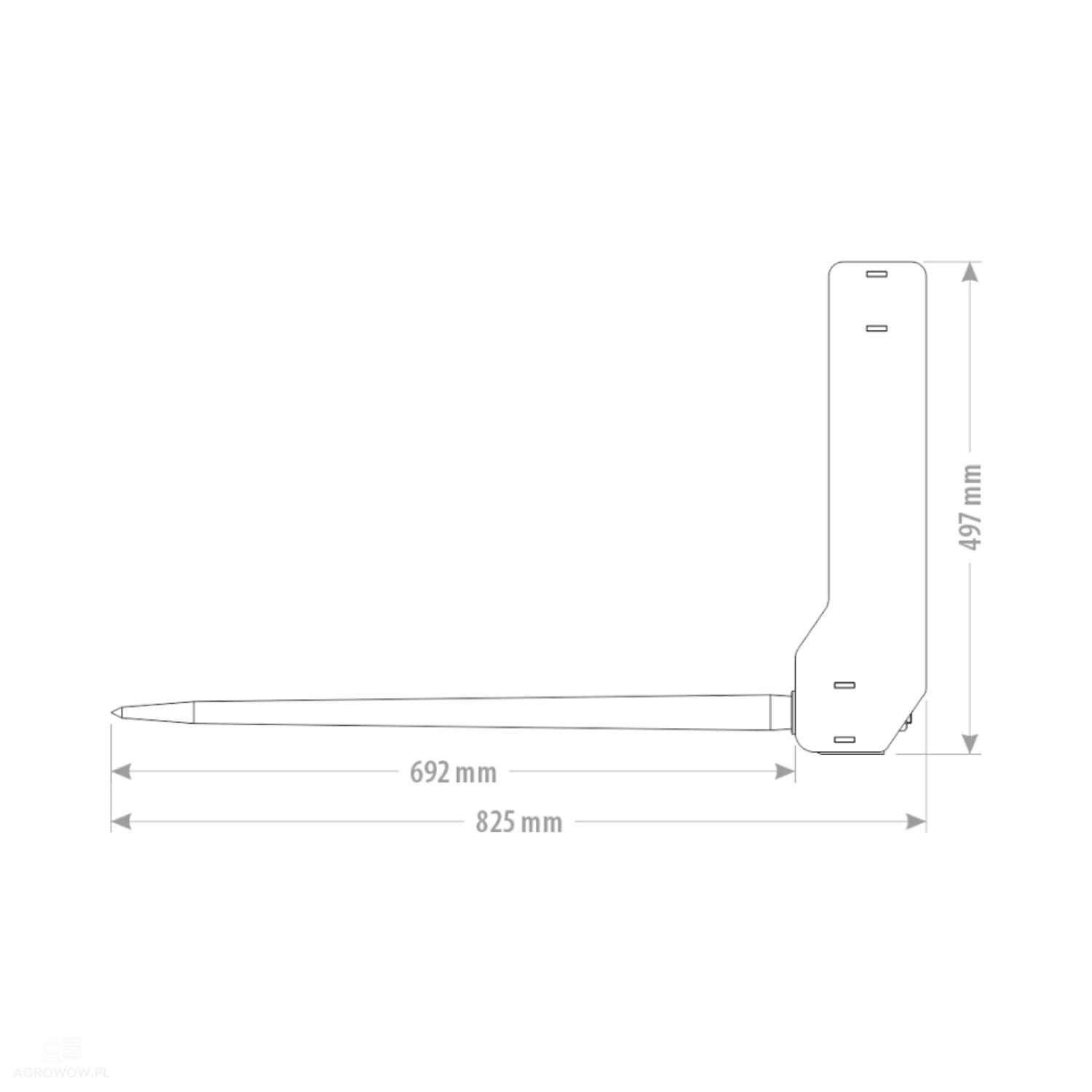

- Width: 1400 mm

- Length: 825 mm

- Tine length: 692 mm

- Height: 497 mm

- Capacity: 0.45 m³

- Weight: 88 kg

- Number of tines: 7

- Side plate thickness: 5 mm

- Heavy-walled profile construction

- Tine mountings reinforced with conical sleeves

- Tines: forged L-810 M22

Detailed Description:

• The MIKRO manure fork with a width of 1400 mm is a compact yet highly efficient tool dedicated to daily use on small and medium-sized agricultural farms. Its design has been developed for the comfortable and quick movement of manure, straw, silage, compost, and other bulk materials, even in areas with limited workspace.

• Thanks to a working width of 1400 mm and a capacity of 0.45 m³, the fork offers an advantageous combination of increased efficiency and agile maneuverability. The total structural length is 825 mm and the height is 497 mm, which translates into stability and operating precision, regardless of spatial conditions or the type of work being performed.

• The main frame is made of solid, heavy-walled steel profiles, which guarantee high resistance to impacts, twisting, and other mechanical stresses. This type of construction performs well when working with wet, compacted material, ensuring the reliability and durability of the tool over many seasons.

• The model is equipped with seven forged L-810 M22 tines with a length of 692 mm, designed for maximum resistance to bending and abrasive wear. These tines enable effective penetration into dense material, and their distribution guarantees an even distribution of force, which enhances efficiency and safety during use.

• To increase the stability of the construction and its lifespan, conical sleeves have been utilized at the tine mounting points. This solution eliminates the risk of loosening and limits mechanical wear, increasing the equipment's reliability during long-term use.

• Despite its larger width, the total unladen weight is only 88 kg, keeping the tool lightweight and easy to maneuver. The low weight limits the load on the cooperating machine and reduces fuel consumption, while simultaneously enhancing operating comfort, particularly when working in tight or unpaved areas.

• The MIKRO 1400 mm fork is adapted to the standard EURO-type mounting system, allowing for quick and trouble-free connection to most popular models of front loaders and telehandlers. This universality significantly facilitates daily operation and increases the functionality of the attachment.

• Thanks to its solid workmanship and compact dimensions, the tool performs excellently across a wide range of tasks—from daily loading work and material transport to organizing space on the farm. It provides effective support in improving work speed and reducing material loss.

• Regular care and compliance with operating recommendations allow the fork to be kept in excellent technical condition for many years. It is a practical solution that offers high quality of use and daily comfort at work.

• The MIKRO manure fork with a width of 1400 mm is a well-thought-out choice for any farmer looking for a lightweight yet durable tool that will perform well in both daily use and more demanding field conditions.
