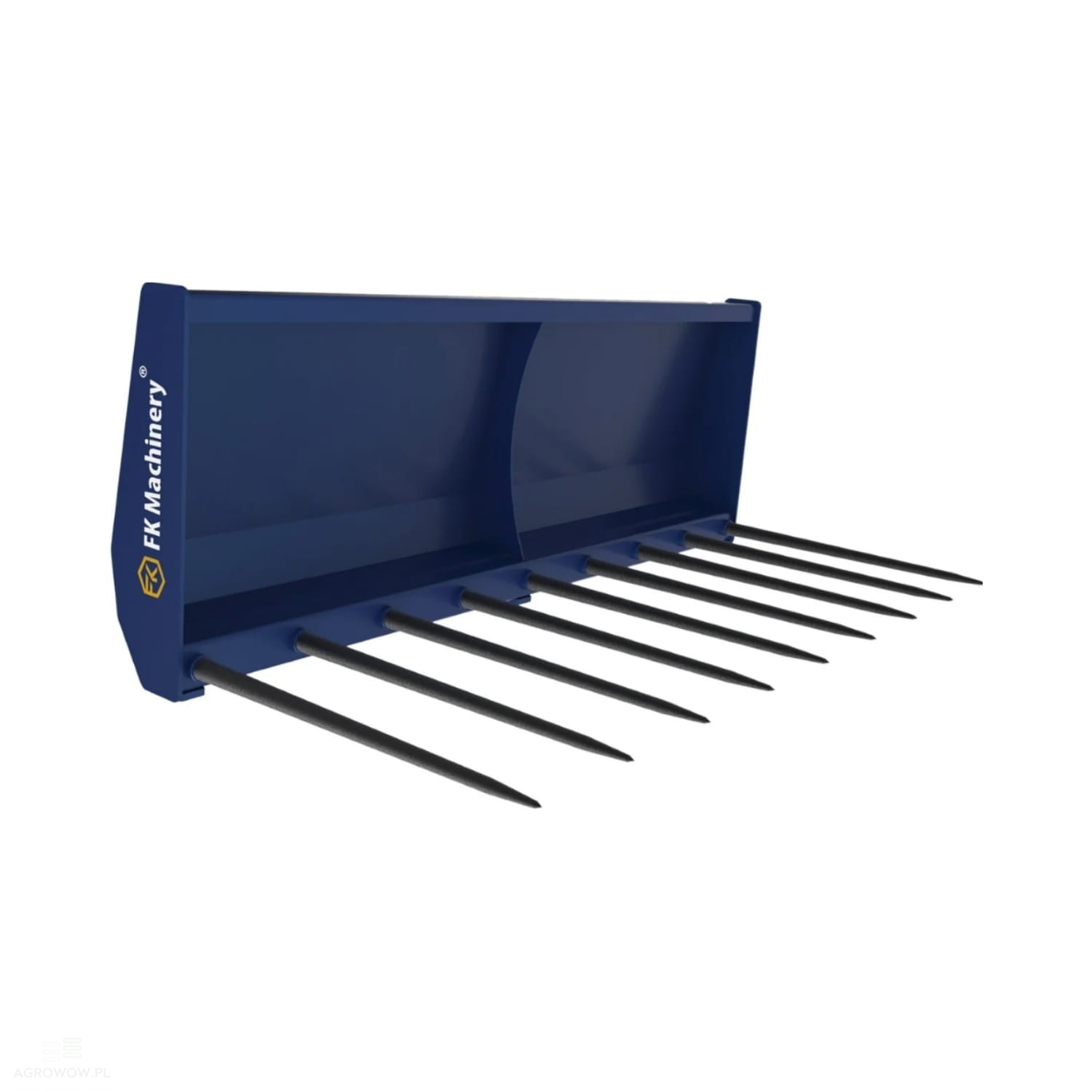

Kołaszewski manure fork STANDARD 1.4 x 0.64 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KMMF14

- Manufacturer's name: STANDARD manure fork

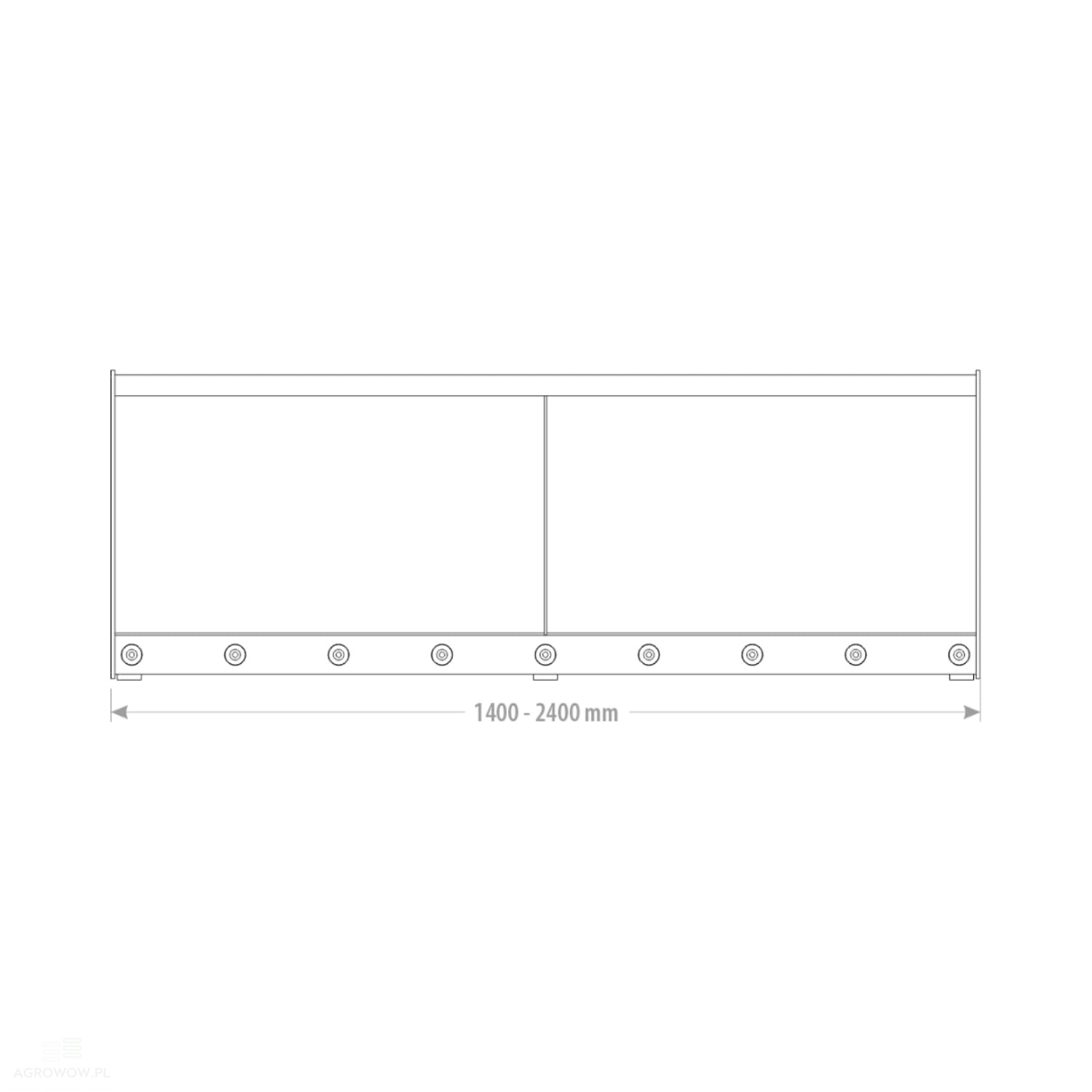

- Width: 1400 mm

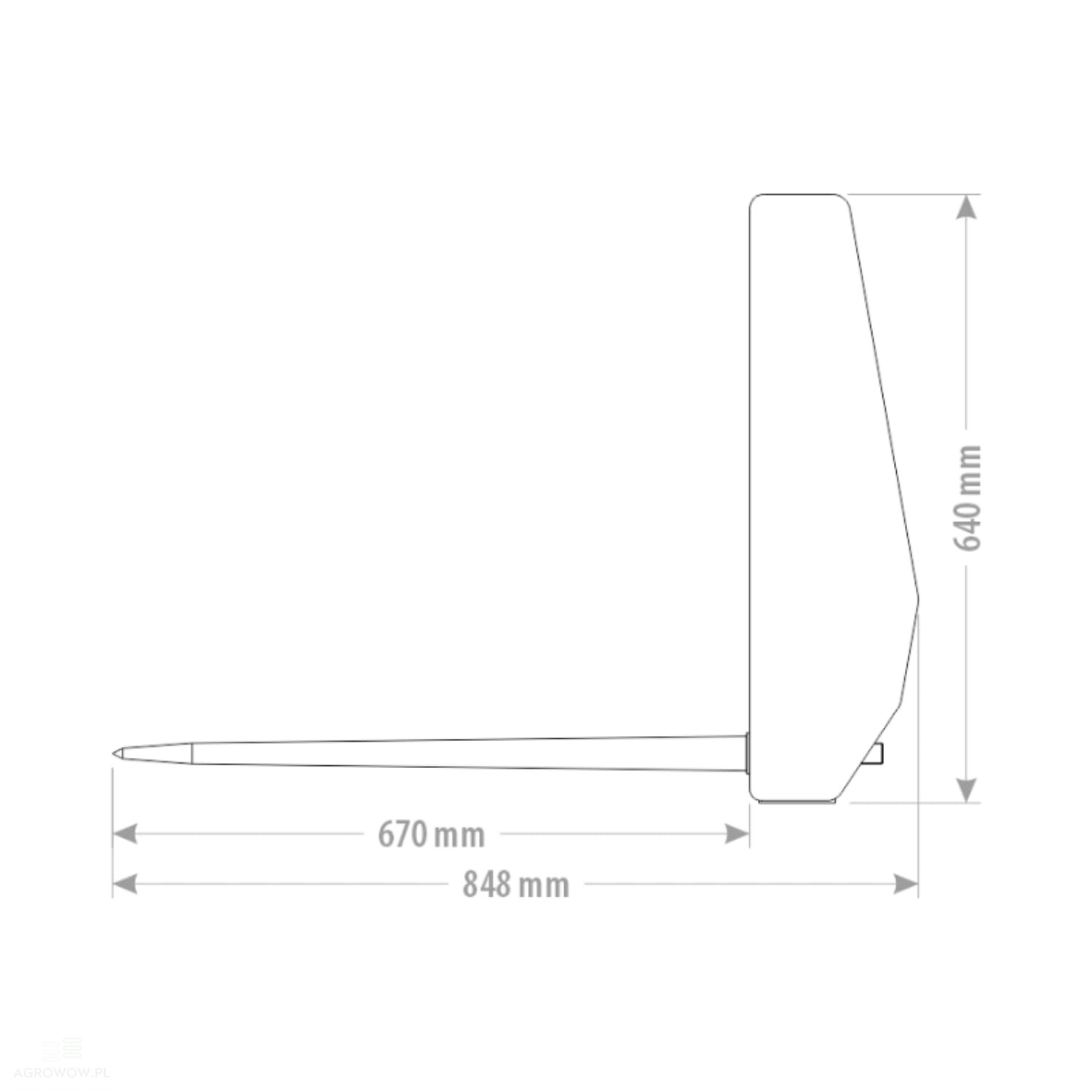

- Length: 848 mm

- Tine length: 670 mm

- Height: 640 mm

- Capacity: 0.62 m³

- Weight: 90 kg

- Number of tines: 8

- Side plate thickness: 5 mm

- Tine mountings reinforced with conical sleeves

- Heavy-walled profile construction

- Tines: forged L-810 M22

Detailed Description:

• The STANDARD manure fork is a modern, solidly manufactured tool designed for intensive and long-term work on agricultural farms. Its primary task is the efficient handling of manure, but thanks to its universal design, it also works great for loading haylage, straw, or other bulk materials.

• A working width of 1400 mm and a capacity of 0.62 m³ make it a tool with a very good compromise between maneuverability and efficiency. It enables quick completion of daily work while ensuring precise operation even in tight workspaces, such as the interiors of farm buildings or between rows of piles.

• The entire construction is made of heavy-walled steel profiles, which give the device appropriate rigidity and resistance to bending, cracking, and material fatigue. This is particularly important when working with heavy, wet manure or other compacted material.

• The overall length of the tool, measuring 848 mm, and height of 640 mm allow for comfortable maneuvering and good visibility for the operator, directly translating into safety as well as accuracy during loading and unloading operations.

• The STANDARD model is equipped with 8 forged tines with a length of 810 mm (type L-810 M22), which stand out for their high resistance to bending, cracking, and abrasive wear. Their distribution ensures an even distribution of forces and effective penetration of even tightly compacted material.

• Thanks to the use of reinforced conical sleeves at the tine mounting points, additional stability and secure seating are achieved. This solution protects against loosening and increases the service life of the entire attachment.

• The entire construction weighs only 90 kg, making the fork exceptionally lightweight in its class while maintaining high durability. The low unladen weight translates into reduced fuel consumption, lesser load on the machine's hydraulic system, and better operational economics.

• The STANDARD manure fork has been designed with quick installation and easy operation in mind—it can be used with popular front loader models and other agricultural carriers equipped with a standard EURO-type mounting system.

• Its versatility and durability make it an exceptionally functional tool, regardless of the type of work and material. It represents an excellent addition to the equipment of any farm focused on modern, efficient agricultural production.

• Regular maintenance and proper operation ensure many years of reliability and stable performance. The STANDARD fork is an investment that pays off through time savings, improved work comfort, and greater efficiency in material management.
