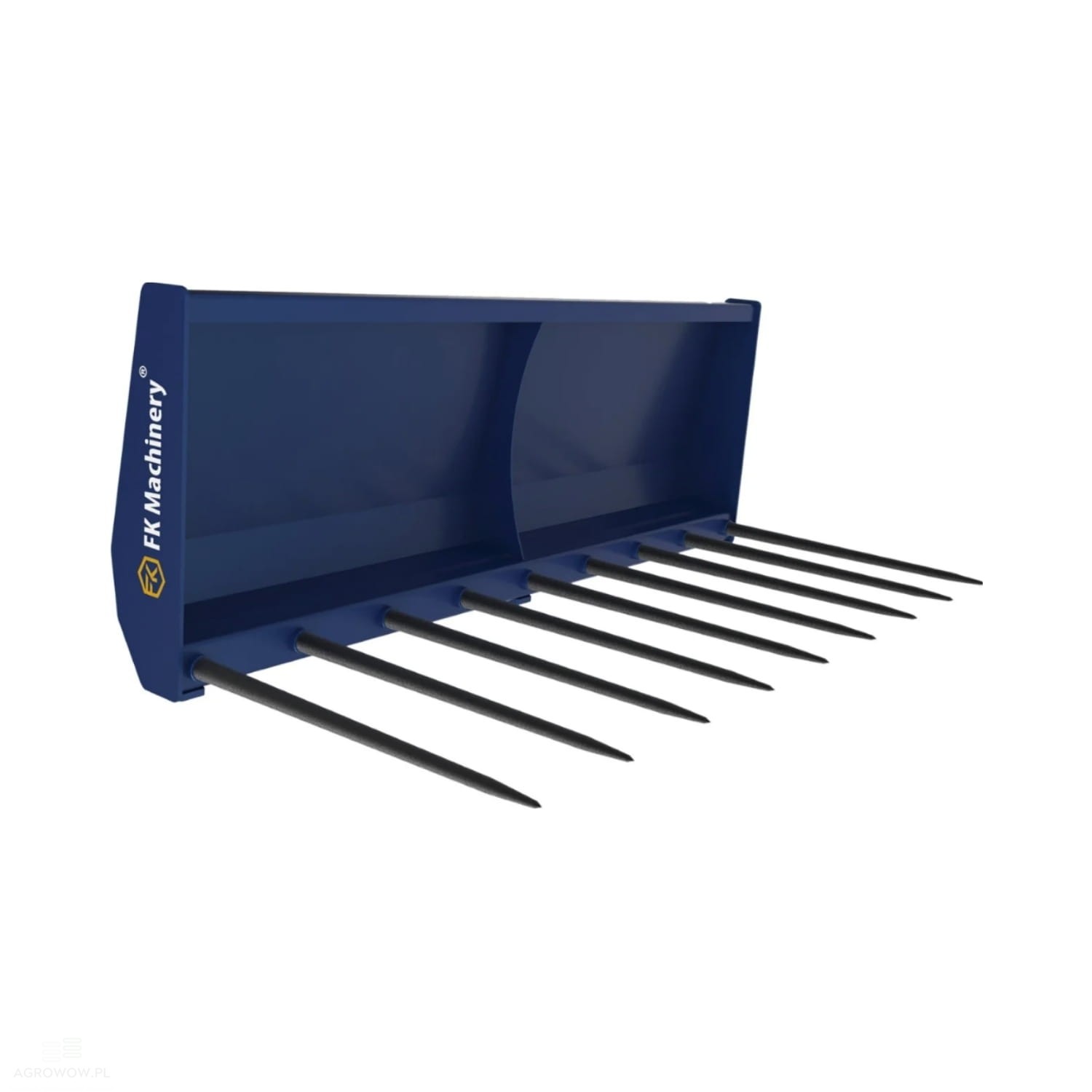

Kołaszewski manure fork STANDARD 1.6 x 0.64 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KMMF16

- Manufacturer's name: STANDARD manure fork

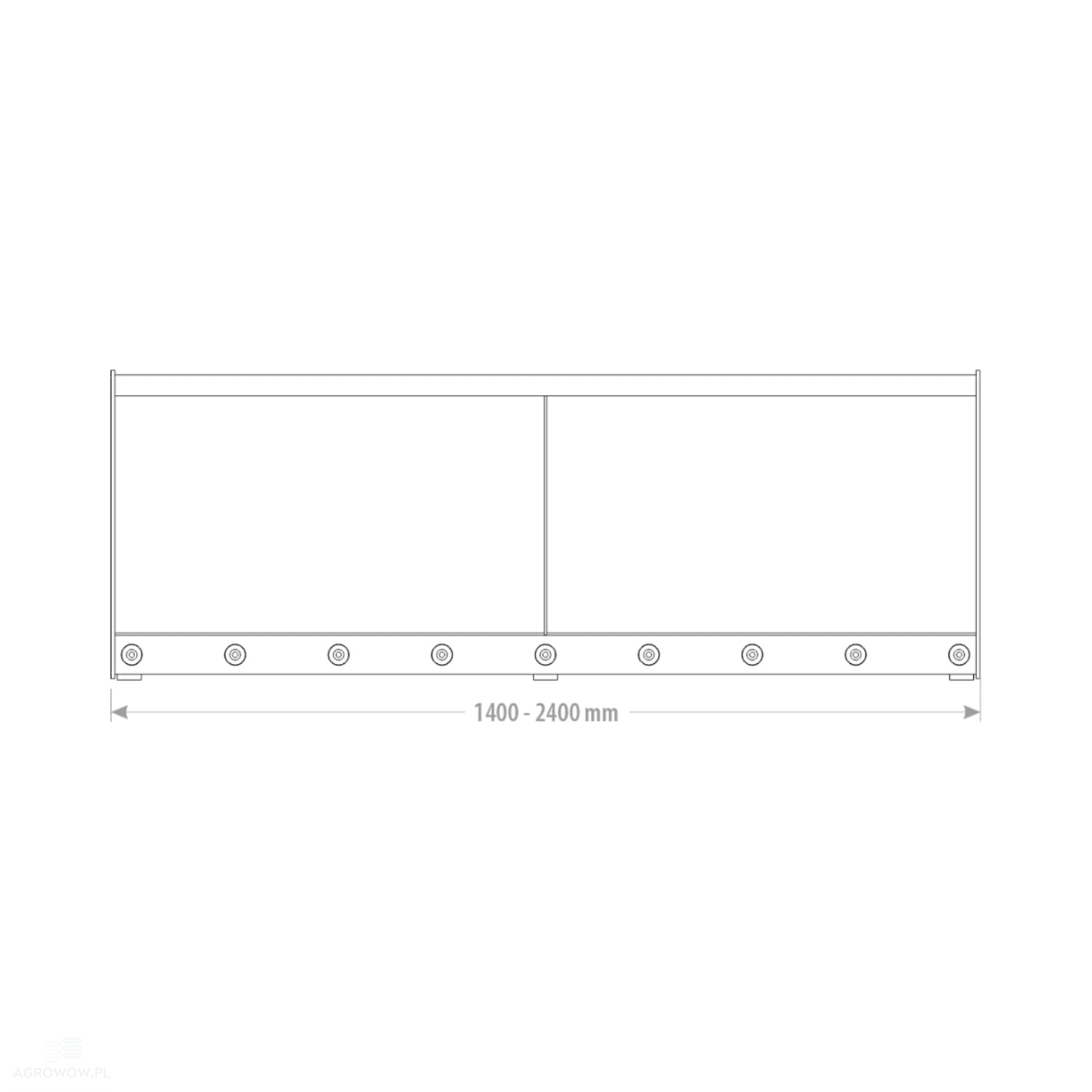

- Width: 1600 mm

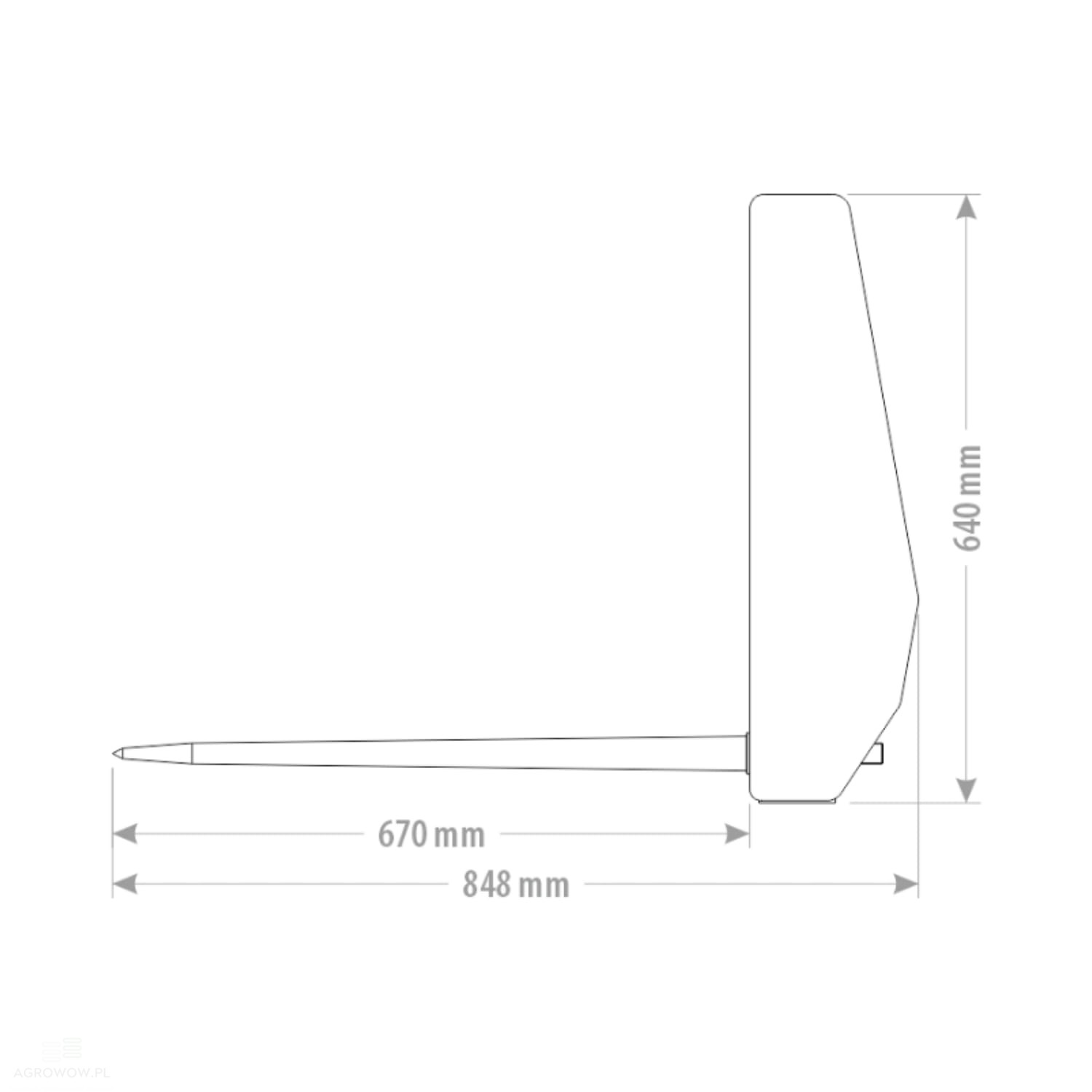

- Length: 848 mm

- Tine length: 670 mm

- Height: 640 mm

- Capacity: 0.70 m³

- Weight: 100 kg

- Number of tines: 9

- Side plate thickness: 5 mm

- Heavy-walled profile construction

- Tine mountings reinforced with conical sleeves

- Tines: forged L-810 M22

Detailed Description:

• The STANDARD manure fork with a width of 1600 mm is a professional, solidly manufactured agricultural tool designed for daily use on farms focused on the efficient and reliable handling of organic materials. The primary function of this attachment is the smooth handling and loading of manure, but thanks to its well-thought-out design, the tool also performs perfectly when handling haylage, straw bales, compost, or various types of loose bulk materials.

• Equipped with a working width of 1600 mm and a usable capacity of 0.70 m³, the STANDARD fork allows for smooth and efficient work, shortening the time needed to complete daily tasks. The structural length of 848 mm and height of 640 mm ensure good maneuverability and appropriate stability, enabling safe use both in open spaces and in enclosed facilities such as barns, stables, or narrow technological corridors.

• The fork's construction is based on solid, heavy-walled steel profiles, which guarantee high resistance to stress, deformation, and intensive use in harsh working conditions. This type of structural solution ensures a long service life for the tool, as well as resistance to corrosion and mechanical damage, even when working with heavy, wet, or compacted material.

• The model is equipped with nine forged L-810 M22 tines, each 810 mm long, which are designed for maximum resistance to bending, snapping, and abrasive wear. Forged tines stand out for their high elasticity, allowing them to effectively penetrate challenging material while minimizing the risk of damage. The tines are evenly distributed, which ensures an optimal distribution of force and increases loading efficiency.

• An additional reinforcement to the construction is the use of conical sleeves at the tine mounting points. This type of solution significantly improves the stability of the entire structure and eliminates the risk of components loosening during intensive operation. These sleeves also increase the life of the fork by reducing wear on the mounting points and improving operator safety.

• Despite its solid and durable construction, the total unladen weight of the fork is only 100 kg, making it a lightweight tool in its class. The low weight translates to reduced stress on the drivetrain and hydraulic system of the carrier machine, which saves fuel and improves the overall economic efficiency of work on the farm. Additionally, the lightweight design facilitates easier maneuvering and operation, even for less experienced users.

• The STANDARD manure fork is designed for simple and quick installation—fitting popular models of front loaders and telehandlers equipped with a standard EURO-type mounting system. Thanks to this, its application is universal, and integration with already owned agricultural equipment does not require extra adapters or modifications.

• Its practicality and durability make it an exceptionally functional tool for daily tasks such as loading, transporting, and unloading various types of organic materials. It perfectly complements the equipment of any modern agricultural farm that focuses on reliability, comfort, and work efficiency.

• Regular maintenance, proper use, and storage according to the manufacturer's recommendations allow the tool to be kept in excellent technical condition for many years. The STANDARD 1600 mm fork is an investment that translates into real time savings, improved work organization, and increased agricultural production efficiency.

• It is a proven and trustworthy piece of equipment for any farm, which can be successfully used in both seasonal and daily operations, ensuring reliability and high performance over a long period of use.
