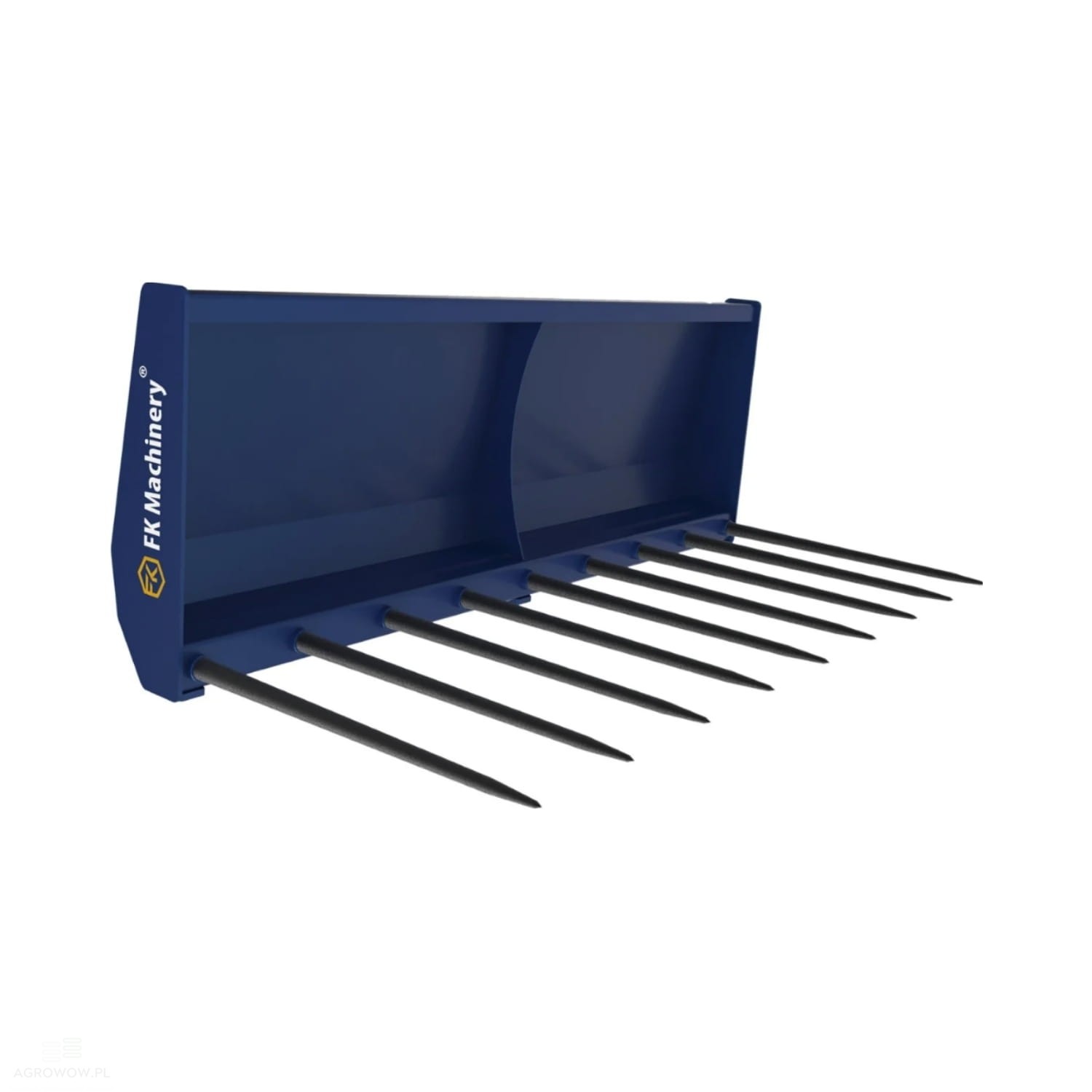

Kołaszewski manure fork STANDARD 2.0 x 0.64 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KMMF20

- Manufacturer's name: STANDARD manure fork

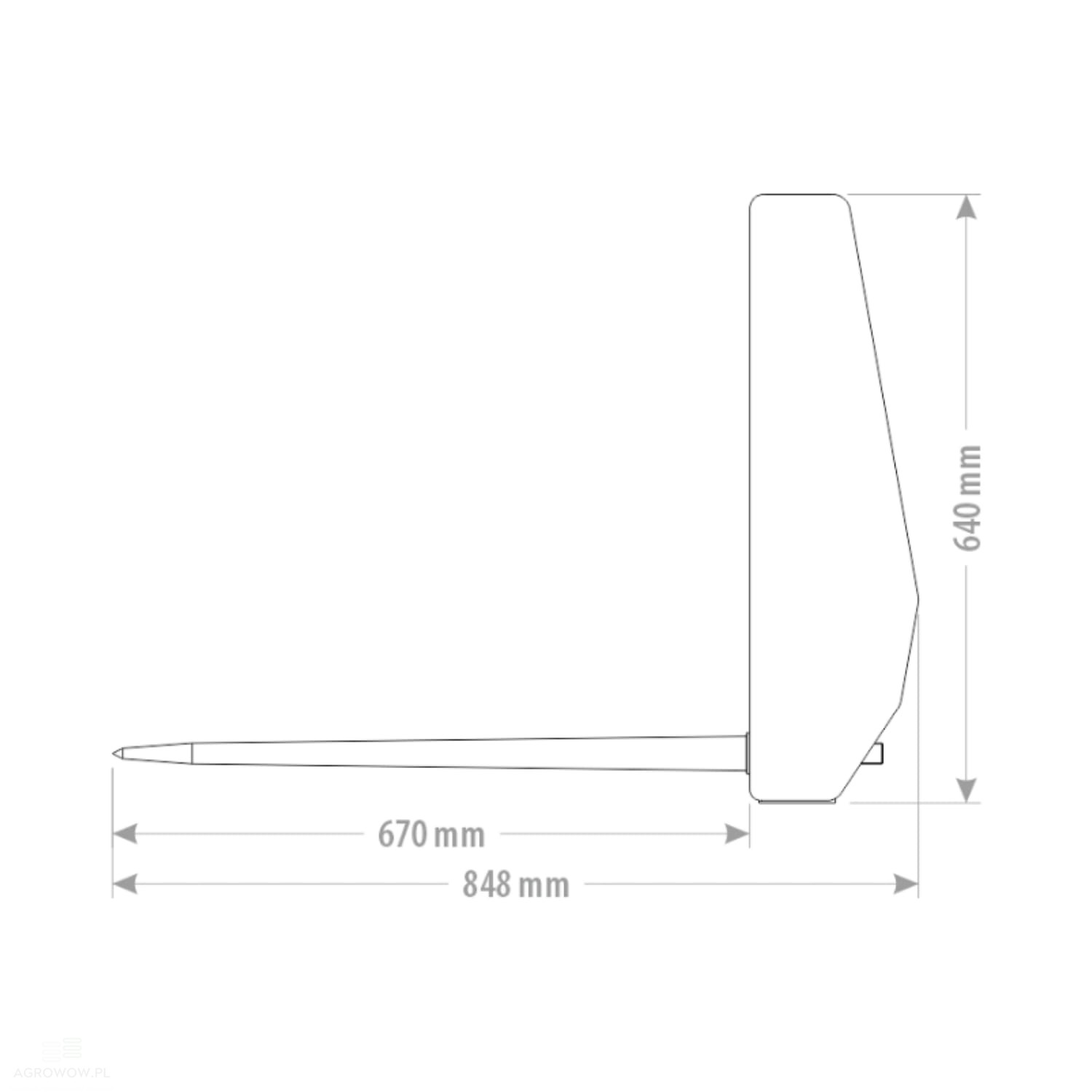

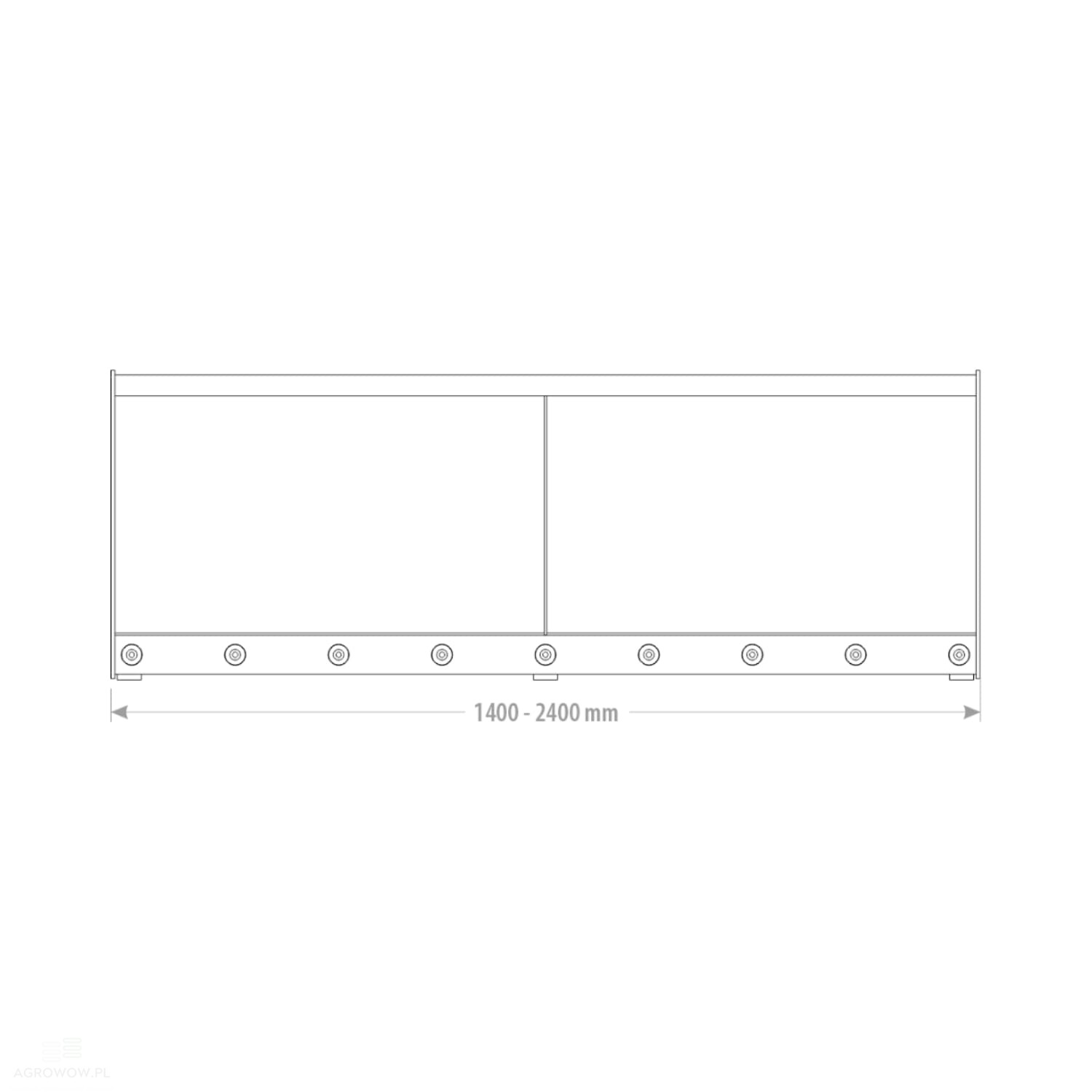

- Width: 2000 mm

- Length: 848 mm

- Tine length: 670 mm

- Height: 640 mm

- Capacity: 0.88 m³

- Weight: 120 kg

- Number of tines: 10

- Tine mountings reinforced with conical sleeves

- Side plate thickness: 5 mm

- Heavy-walled profile construction

- Tines: forged L-810 M22

Detailed Description:

• The STANDARD manure fork with a width of 2000 mm is a durable and professional agricultural tool designed for intensive use on large farms. Its construction has been engineered for the efficient movement of manure, but it performs equally well when handling silage, straw, compost, and other bulk materials, making it a versatile addition to any farm's equipment.

• Thanks to an impressive working width of 2000 mm and a capacity of 0.88 m³, the tool enables loading a large amount of material at one time, which translates to shorter operational times and a reduced number of work cycles. The overall length of 848 mm and height of 640 mm provide an appropriate balance between capacity and ease of maneuvering, both in open spaces and inside farm buildings.

• The tool's frame is made of heavy-walled steel profiles, which provide exceptional resistance to heavy loads, impacts, and deformation. This construction allows for trouble-free operation even with wet, heavy, or compacted material, while guaranteeing a long service life and user safety.

• The model is equipped with ten forged L-810 M22 tines, each 810 mm long. These tines are designed for high resistance to bending and abrasive wear. Their even distribution allows for optimal force dispersion, resulting in easy penetration of even tightly compacted material and increased loading and unloading efficiency.

• An additional advantage of the design is the use of conical sleeves at the tine mounting points, which increase connection rigidity, prevent loosening, and reduce mechanical wear. This technical solution significantly extends the tool's period of trouble-free operation and increases its reliability in daily use.

• Despite its large size, the unladen weight of the tool is only 120 kg. The lightweight construction helps lower fuel consumption and reduces the load on the drivetrain of the cooperating machine. This is also a significant asset for easy maneuvering, especially when working in confined spaces or on unpaved ground.

• The fork is equipped with a standard EURO-type mounting system, allowing for a quick and trouble-free connection with most front loaders and telehandlers available on the market. This versatility permits immediate deployment into work without the need for additional adapters or modifications.

• The design of the fork has been thought out for multitasking. It finds application in numerous daily farm tasks, both during the peak season and throughout year-round production. It helps increase the pace of work, improve internal logistics, and limit operational costs.

• When proper operation rules and regular maintenance are maintained, the STANDARD 2000 mm manure fork offers many years of durability and reliability. It is a tool that genuinely impacts the increase of productivity and comfort in daily work, representing a well-considered and profitable investment for any farm.

• Its robustness, functionality, and compatibility make it an indispensable piece of equipment wherever efficiency, reliability, and simplicity of operation matter—both in field operations and under a roof.
