Kołaszewski manure fork STANDARD 2.2 x 0.64 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KMMF22

- Manufacturer's name: STANDARD manure fork

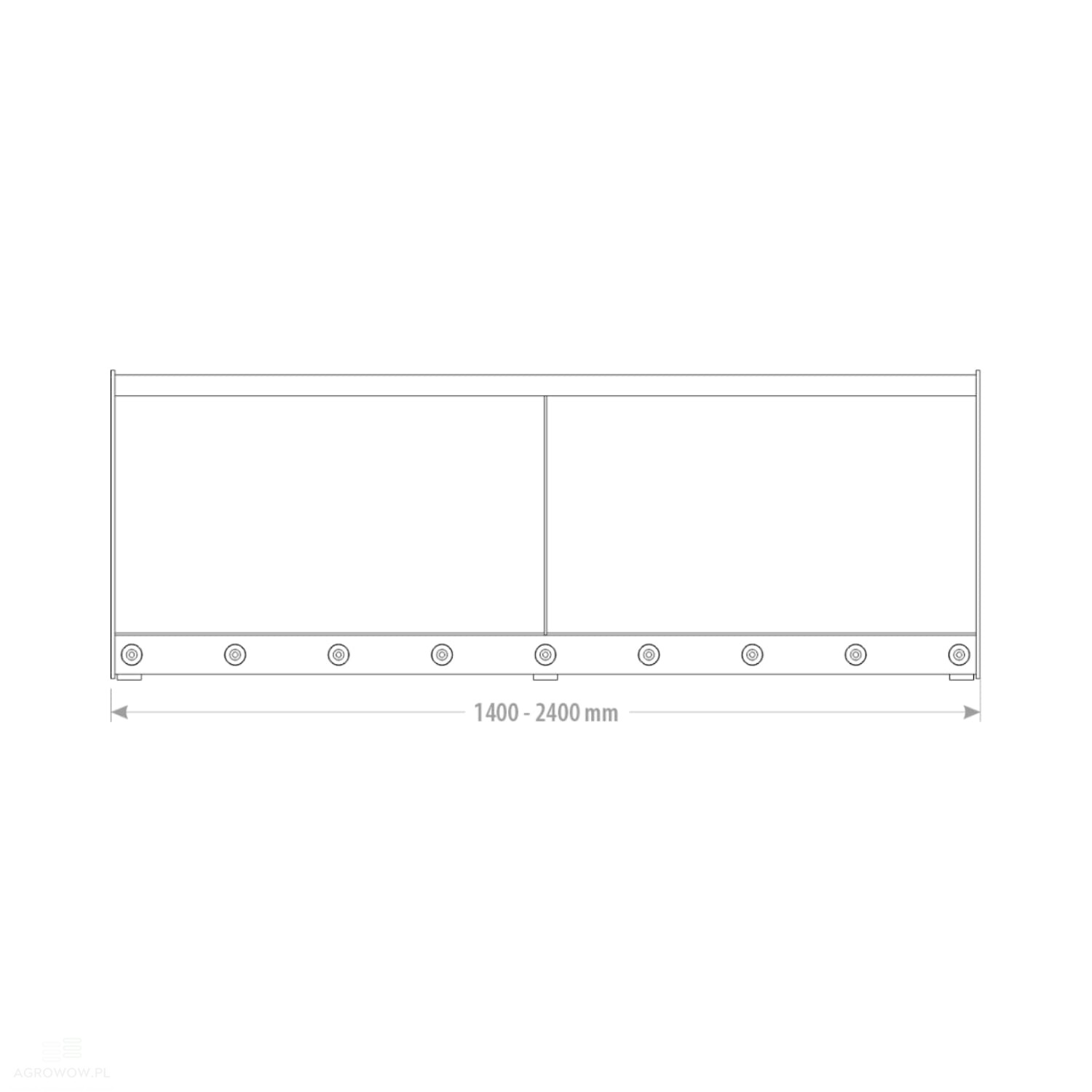

- Width: 2200 mm

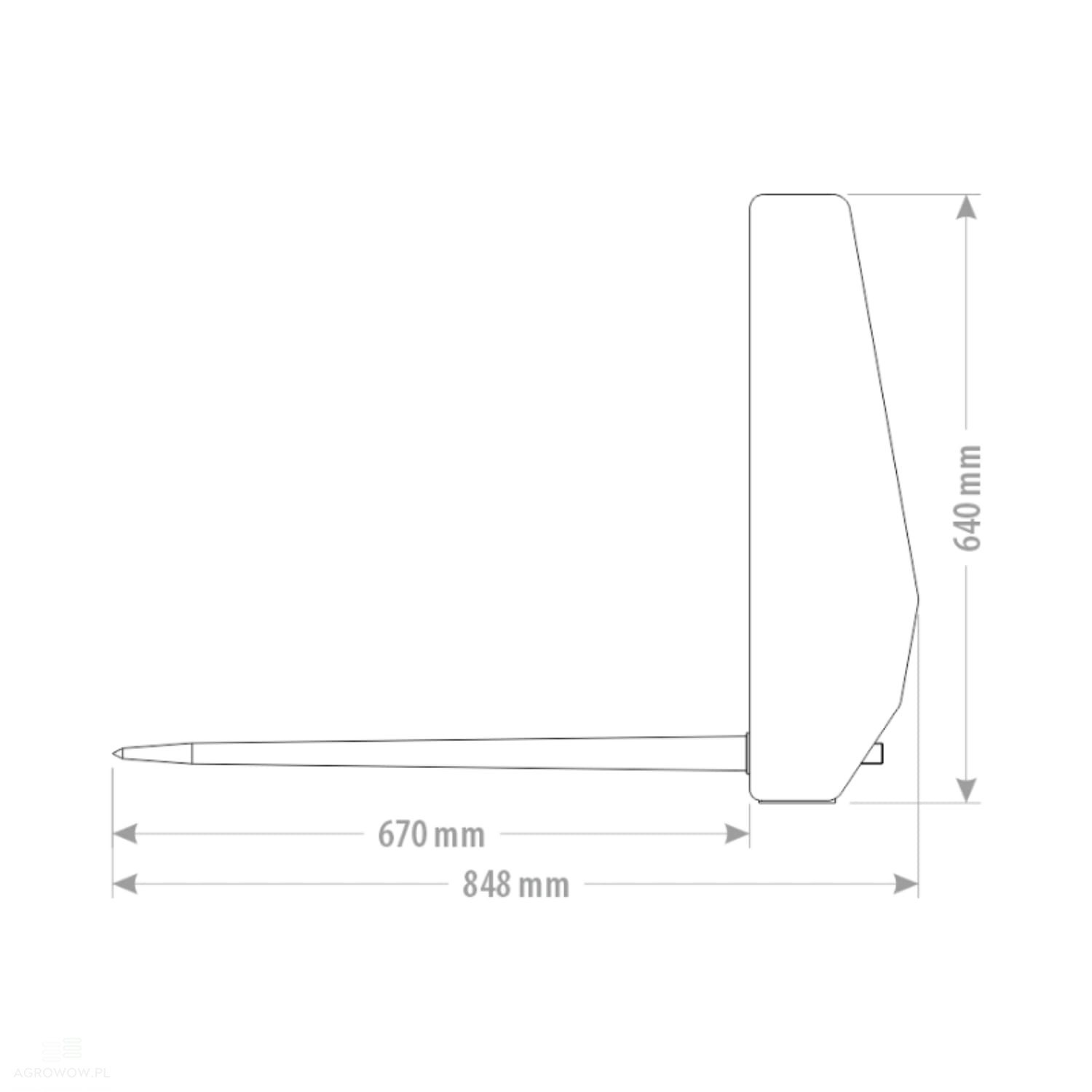

- Length: 848 mm

- Tine length: 670 mm

- Height: 640 mm

- Capacity: 0.97 m³

- Weight: 130 kg

- Number of tines: 11

- Side plate thickness: 5 mm

- Heavy-walled profile construction

- Tine mountings reinforced with conical sleeves

- Tines: forged L-810 M22

Detailed Description:

• The STANDARD manure fork with a width of 2200 mm is a solid and professional tool created for large agricultural farms where efficiency and reliability in daily work are essential. Designed for the fast handling and loading of manure, it also performs excellently when handling silage, straw, compost, and other bulk materials, offering great versatility of application.

• A large working width of 2200 mm and a usable capacity of 0.97 m³ allow for collecting larger quantities of material in a single cycle, which effectively shortens working times and reduces the number of runs. The design dimensions—length of 848 mm and height of 640 mm—ensure good maneuverability and stability, enabling comfortable operation both in open spaces and within livestock buildings.

• The main frame of the tool is made of heavy-walled steel profiles, which ensures exceptional durability and resistance to high overloads, mechanical damage, and variable weather conditions. This structural solution enables trouble-free operation even with heavy, wet, or compacted material, while maintaining a long service life.

• The model is equipped with eleven forged L-810 M22 tines, each 810 mm long. These tines are distributed in a way that guarantees an even distribution of forces during operation, translating into effective penetration even into compacted material. Forged steel provides high resistance to bending, abrasive wear, and other damages occurring during intensive use.

• Conical sleeves are used at the tine mounting points, which significantly improves the stability of the entire structure and minimizes the risk of the tines loosening during long-term operation. This solution increases the tool's durability, reduces the risk of failure, and ensures greater safety during use.

• Despite its large width, the weight of the fork is only 130 kg, making it light for its class. This design helps reduce fuel consumption and relieves the drivetrain and hydraulic system of the cooperating machine. The low weight additionally facilitates easy maneuvering and handling in various terrain conditions.

• The fork is equipped with a standard EURO-type mounting, enabling quick and trouble-free connection to the most popular models of front loaders and telehandlers without the need for additional adapters or extensions. This solution increases flexibility and working comfort on the farm.

• Thanks to its well-thought-out design and high durability, the fork performs perfectly in many daily tasks—from loading to transporting materials. Its multi-tasking capability allows for effective management of time and resources on the farm, regardless of the season or the type of work being performed.

• Regular maintenance and operation in accordance with the manufacturer's guidelines allow the fork to maintain full efficiency over a long period of use. It represents a well-considered investment for any farm that values high quality, efficiency, and safety in daily operations.

• The STANDARD manure fork with a width of 2200 mm is a universal tool that can be successfully used in both daily and seasonal work, offering the user robustness, functionality, and durability even in the most demanding conditions.
