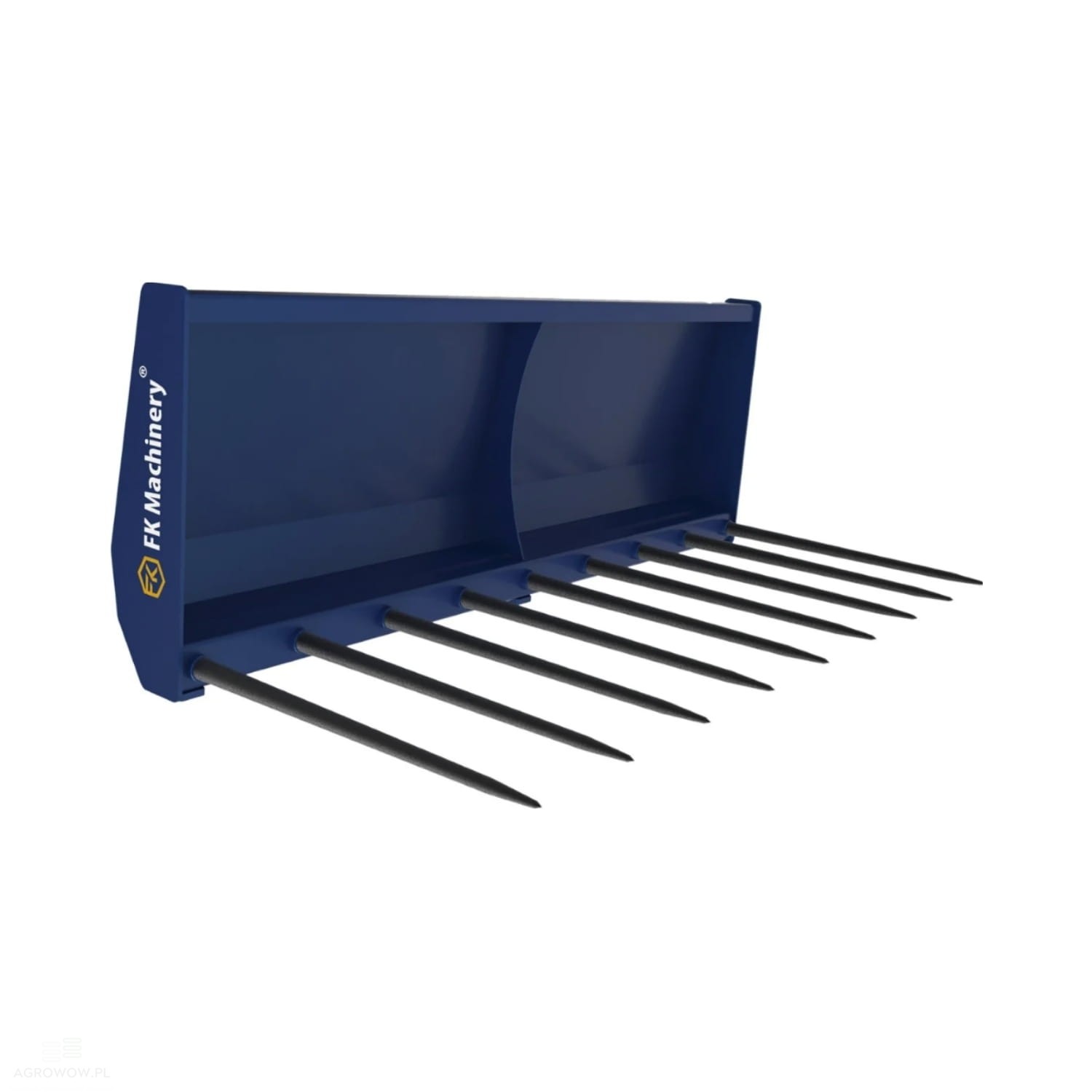

Kołaszewski manure fork STANDARD 2.4 x 0.64 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KMMF240

- Manufacturer's name: STANDARD manure fork

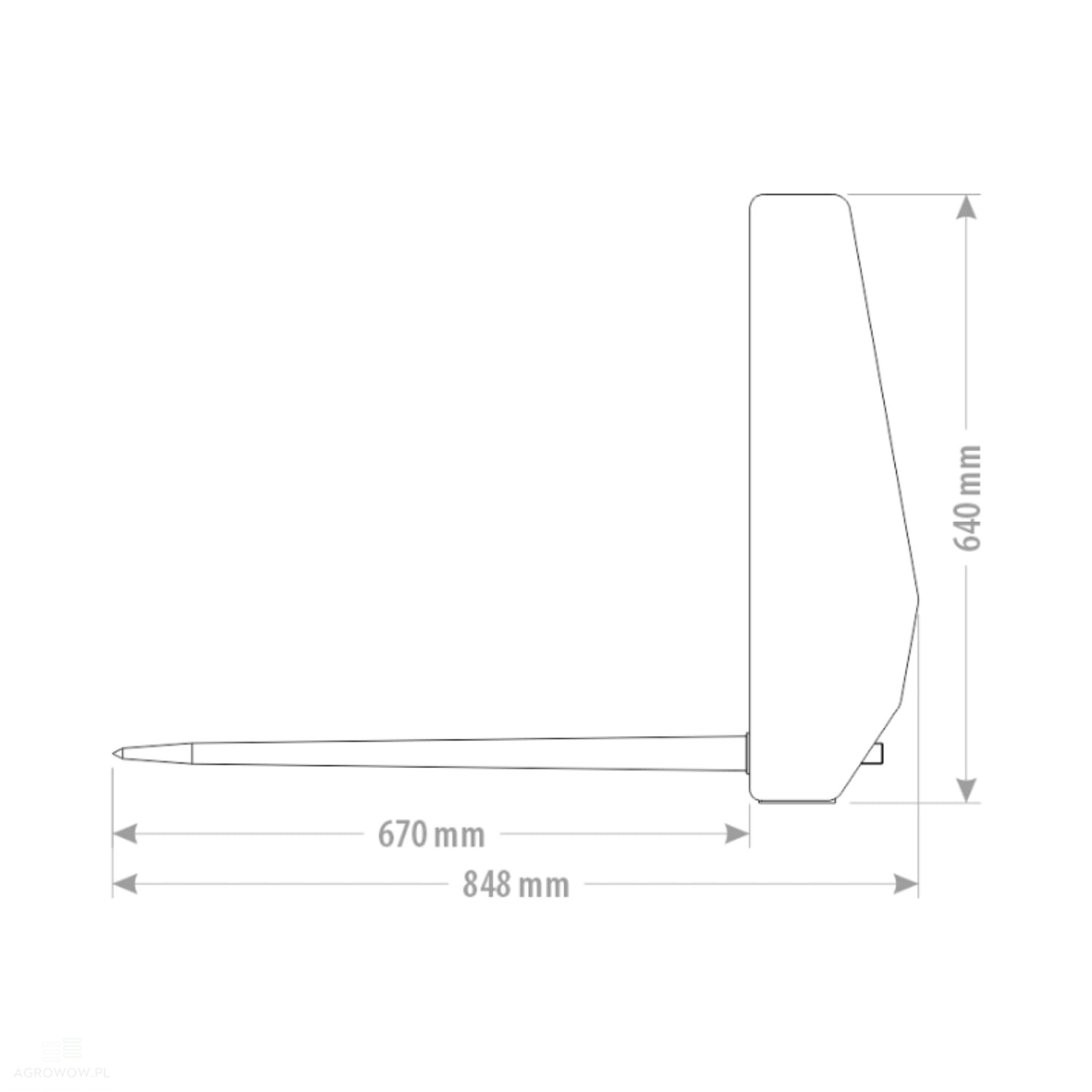

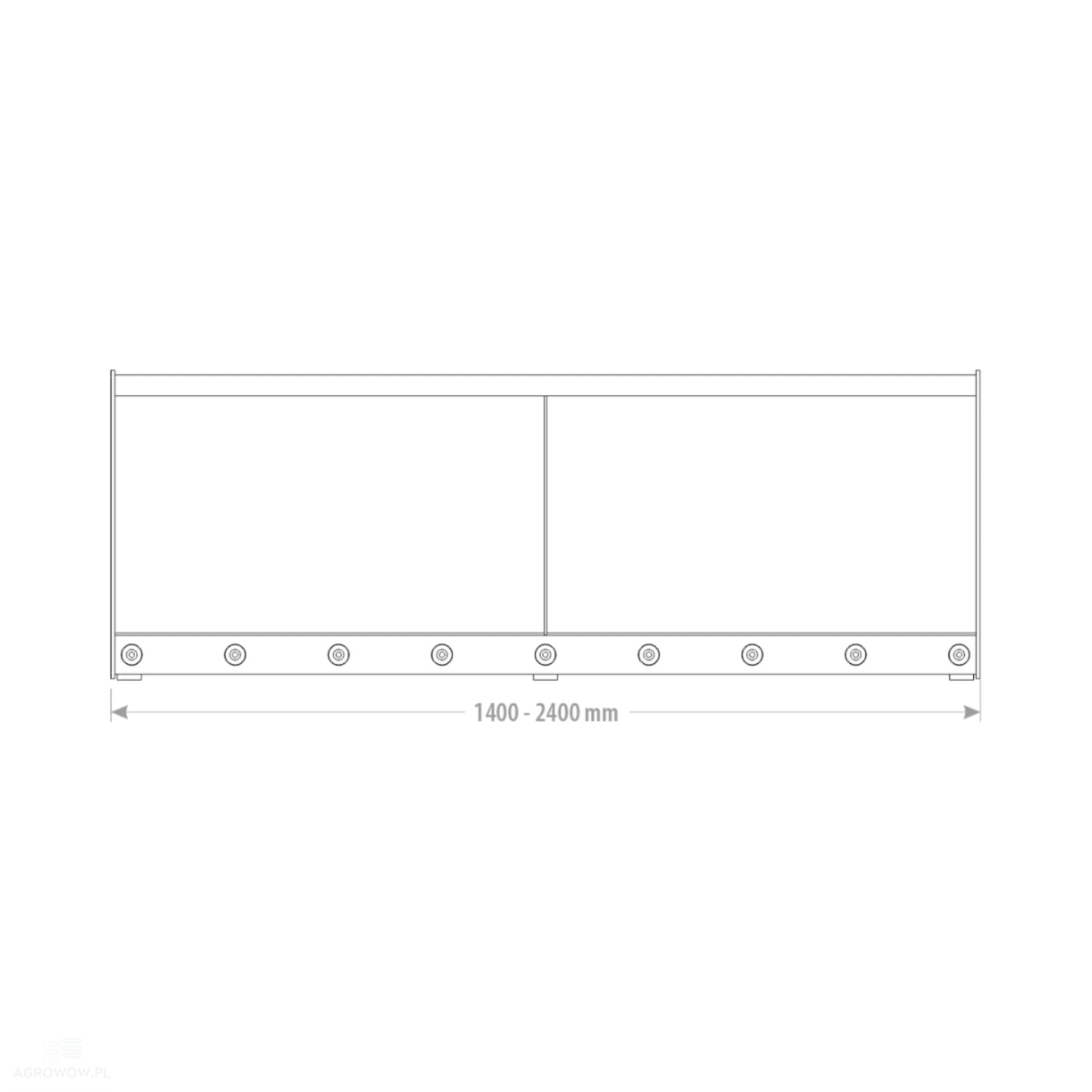

- Width: 2400 mm

- Length: 848 mm

- Tine length: 670 mm

- Height: 640 mm

- Capacity: 1.06 m³

- Weight: 140 kg

- Number of tines: 12

- Side plate thickness: 5 mm

- Heavy-walled profile construction

- Tine mountings reinforced with conical sleeves

- Tines: forged L-810 M22

Detailed Description:

• The STANDARD manure fork with a width of 2400 mm is a durable and functional tool created for large agricultural farms where fast, safe, and efficient handling of organic materials is a priority. The construction has been designed for the smooth handling of manure, and it also excels at manipulating silage, straw, natural fertilizers, and other loose or bulk materials.
• A substantial working width of 2400 mm and a capacity of 1.06 m³ enable the loading of large quantities of material in a single cycle, which significantly shortens working times and reduces the number of runs. The overall dimensions of the tool—length of 848 mm and height of 640 mm—ensure stability and maneuverability even in more challenging conditions, such as inside barns or in narrow processing lanes.
• The frame is made of heavy-walled steel profiles, providing resistance to impacts, deformation, and intensive use under harsh conditions. Such a solid construction guarantees a long service life for the tool and high resistance to external factors such as moisture, mud, or high dynamic loads.
• The model is equipped with twelve forged L-810 M22 tines with a length of 810 mm, which, thanks to their strength and elasticity, perfectly handle compacted, wet material. The distribution of the tines has been optimized for an even distribution of forces and maximum working efficiency under all conditions.
• Conical sleeves are used at the tine mounting points, which effectively prevents components from loosening, increases the rigidity of the entire structure, and reduces the risk of mechanical damage resulting from repeated loading and unloading of heavy material.
• Despite its large working width, the total unladen weight of the tool is only 140 kg. This weight, combined with the robust design, ensures a perfect balance between strength and operational economy—resulting in lower fuel consumption and less stress on the hydraulic system of the cooperating machine.
• The STANDARD 2400 mm fork features a standard EURO-type mounting system, making it compatible with a wide range of front loaders and telehandlers. Installation is quick and intuitive, increasing the flexibility of utilizing the tool for various agricultural tasks.
• Thanks to its large capacity, durability, and well-thought-out design, this fork excels in daily tasks related to the loading and transport of organic masses, contributing to increased efficiency, cost reduction, and better work organization on the farm.
• Regular maintenance and proper operation ensure a long service life for the tool, allowing it to serve reliably for many seasons. It is a practical solution that combines high-quality workmanship, functionality, and user comfort.
• The STANDARD manure fork with a width of 2400 mm is an ideal tool for farmers seeking a solid, high-capacity, and highly reliable attachment for intensive use on a modern farm.
