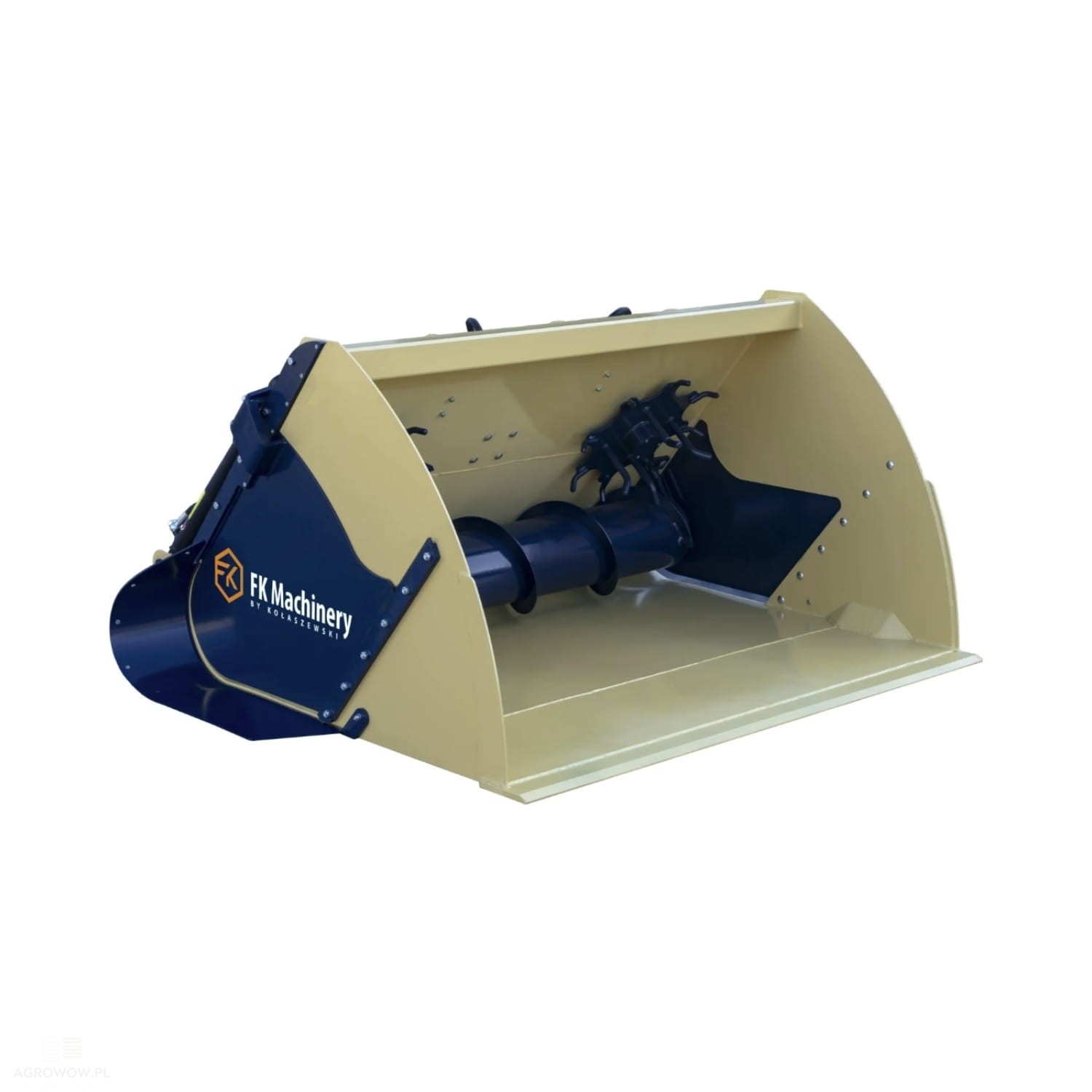

Kołaszewski screw feeder bucket 1.4 x 1.16 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KFBSV140

- Manufacturer's name: Screw feeder bucket

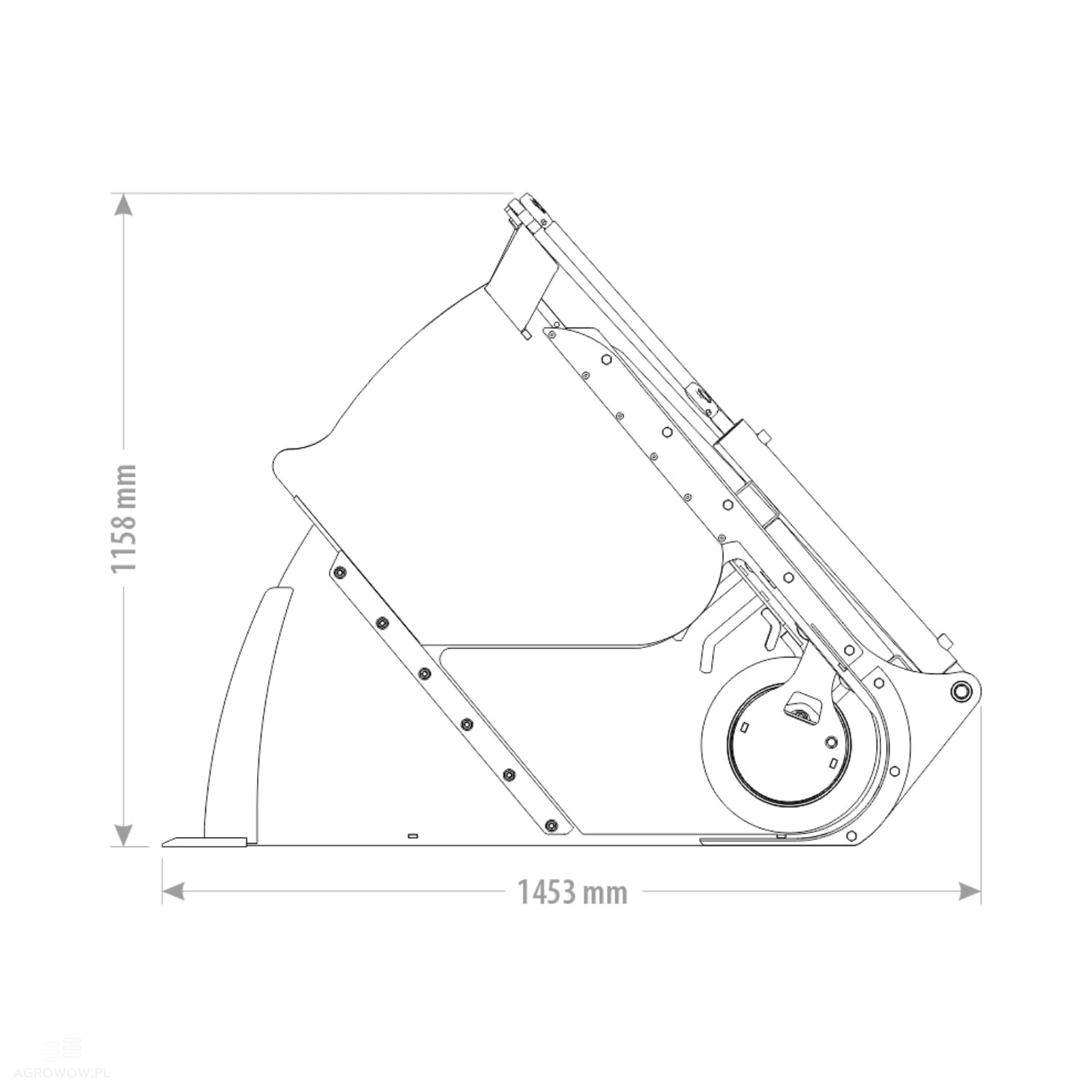

- Width: 1400 mm

- Length: 1453 mm

- Height: 1158 mm

- Capacity: 0.99 m³

- Weight: 471 kg

- Side wall thickness: 6 mm

- Main shell thickness: 5 mm

- HB500 cutting edge: 150x16 mm

- Dual-side discharge: Capable of feeding to both left and right sides

- Agitators: Internal anti-bridging agitators to prevent feed blockage

- Recommended oil flow: 45 L/min

Optional Equipment (Extra Charge):

- VMP Relief Valve

The VMP relief valve plays an important role in hydraulic systems, ensuring the safety of the system. Its primary task is to regulate pressure by discharging excess working fluid from the circuit when the pressure reaches a predetermined limit. Installing a VMP valve protects the system from overloads and potential damage, while also ensuring the operational stability of the entire hydraulic system. The valve is adjustable, allowing the working pressure to be adapted to the specific needs of the equipment.

- Additional Motor

Recommended for feed with grass and straw mixtures. An additional hydraulic motor is used to increase torque and improve the efficiency of the device, especially during intensive use or when working under challenging conditions. Thanks to the installation of an additional motor, the load is distributed evenly, which improves operational efficiency and provides better control over the attachment. In systems requiring greater power or a faster duty cycle, the additional motor delivers essential support, contributing to an extended service life for the drive system.

Detailed Description:

• The screw feeder bucket is an advanced, reliable tool that performs perfectly on cattle, pig, and poultry farms where both the speed and efficiency of feed dispensing are of key importance.

• This device combines high functionality with a durable construction, making it an irreplaceable piece of equipment for modern agricultural farms.

• The bucket is designed with a spacious hopper featuring a capacity of 0.99 m³, which allows for a larger volume of feed to be loaded in a single cycle, increasing efficiency and shortening the time dedicated to delivering it to the animals.

• This optimal capacity enables the dispensing of loose feeds, such as grains and meals, as well as mixtures with grass and straw additives, significantly increasing work productivity on the farm.

• The rugged construction of the bucket, including 6 mm thick side walls and a 5 mm thick main shell, ensures strength and resistance to mechanical damage, guaranteeing reliable, long-term operation even during intensive use in difficult working conditions.

• The cutting edge, made of HB500 steel measuring 150x16 mm, delivers exceptional resistance to abrasion, ensuring the long-term performance of the tool even under heavy-duty utilization.

• As a key component of the system, the cutting edge efficiently processes the feed, ensuring uniform delivery of the material to the animals, which optimizes the feeding process and increases its overall effectiveness.

• The built-in auger mechanism enables precise feed dosing.

• Thanks to an adjustable rotational speed, the user can adapt the dispensing rate to the individual needs of the herd, allowing for better control over the feeding routine.

• The dual-side discharge capability allows for even feed distribution, which increases efficiency and saves time during both loading and unloading.

• Internal agitators inside the bucket prevent the feed from bridging, ensuring its uniform delivery and preventing material from clumping.

• This ensures that the feed reaches the livestock in correct quantities, promoting better feed utilization.

• The design of the equipment also prioritizes easy maintenance, providing quick access to the pin lubrication points, which simplifies routine inspections and extends the service life of the tool.

• A recommended oil flow of 45 L/min guarantees stability and operational output of the attachment, ensuring its dependability across all working conditions.

• The screw feeder bucket is an indispensable tool that brings significant time savings, boosting productivity on agricultural farms and contributing to better management of the animal feeding routine.
