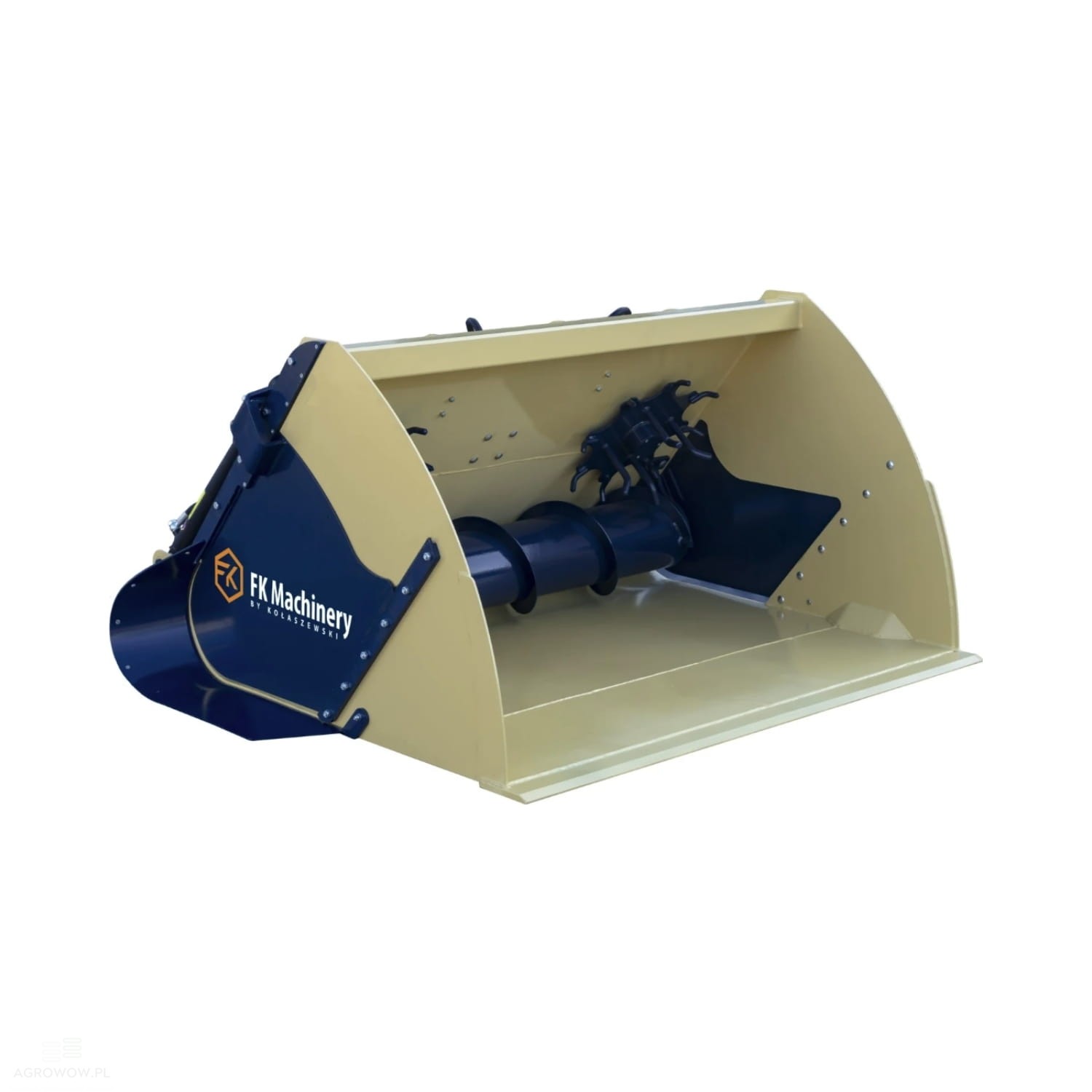

Kołaszewski screw feeder bucket 1.6 x 1.16 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

Jesteśmy w stanie przygotować mocowanie do każdego rodzaju sprzętu — traktora, koparki, ładowarki, wózka widłowego i wielu innych maszyn

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KFBSV160

- Manufacturer's name: Screw feeder bucket

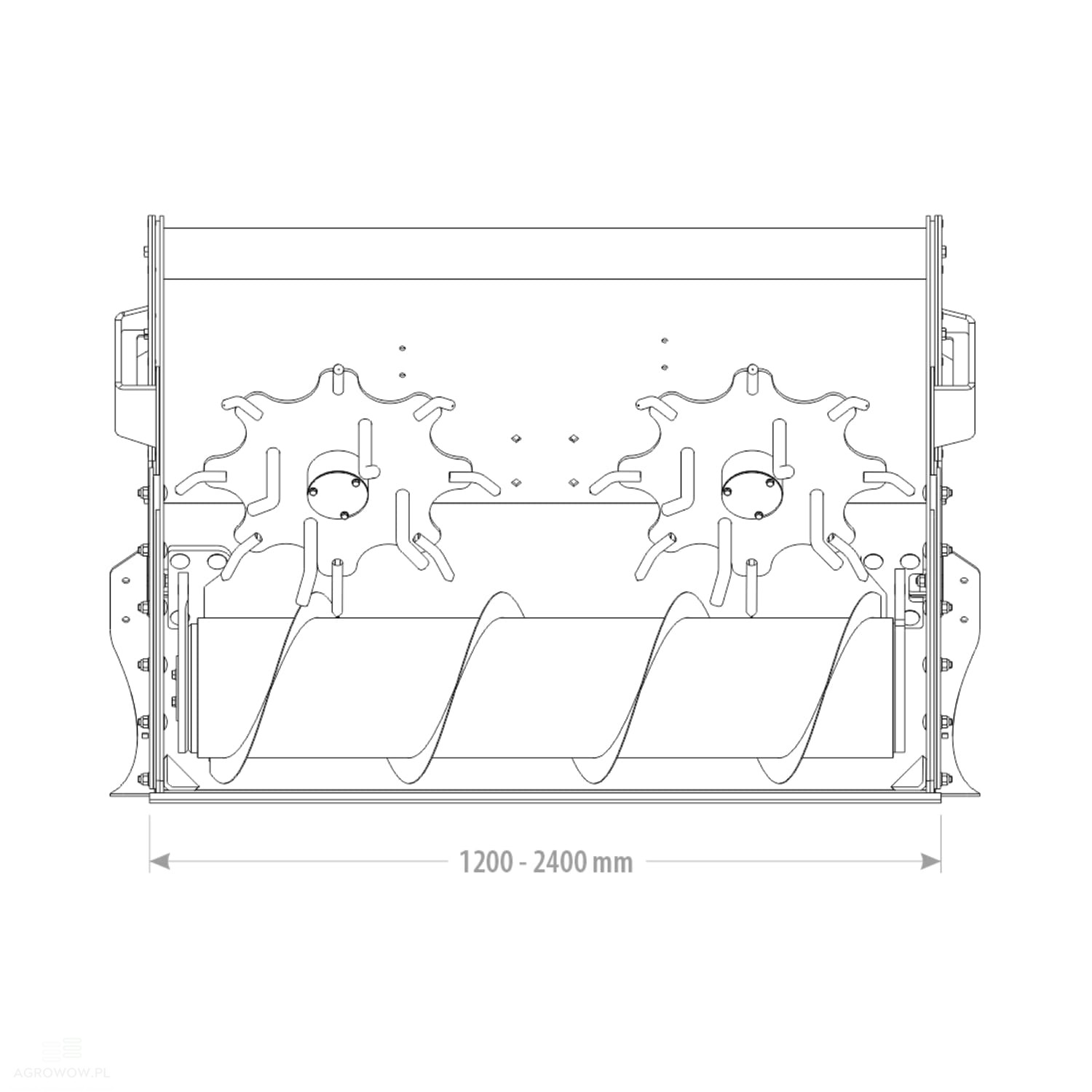

- Width: 1600 mm

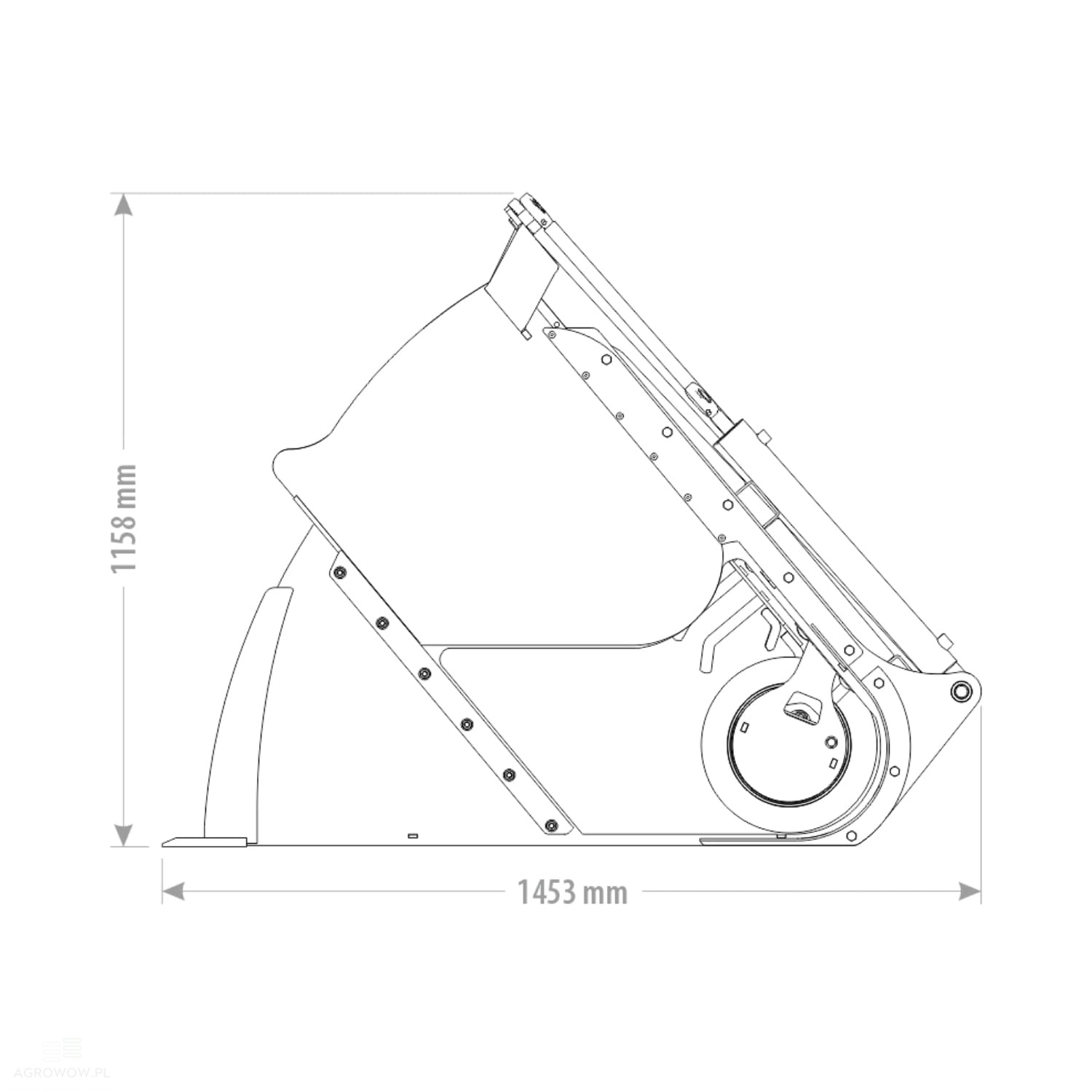

- Length: 1453 mm

- Height: 1158 mm

- Capacity: 1.14 m³

- Weight: 503 kg

- Side wall thickness: 6 mm

- Main shell thickness: 5 mm

- HB500 cutting edge: 150x16 mm

- Dual-side discharge: Capable of feeding to both left and right sides

- Agitators: Internal anti-bridging agitators to prevent feed blockage

- Recommended oil flow: 45 L/mi

Optional Equipment (Extra Charge):

- VMP Relief ValveThe VMP relief valve plays an important role in hydraulic systems, ensuring the safety of the system. Its primary task is to regulate pressure by discharging excess working fluid from the circuit when the pressure reaches a predetermined limit. Installing a VMP valve protects the system from overloads and potential damage, while also ensuring the operational stability of the entire hydraulic system. The valve is adjustable, allowing the working pressure to be adapted to the specific needs of the equipment.

- Additional Motor

Recommended for feed with grass and straw mixtures. An additional hydraulic motor is used to increase torque and improve the efficiency of the device, especially during intensive use or when working under challenging conditions. Thanks to the installation of an additional motor, the load is distributed evenly, which improves operational efficiency and provides better control over the attachment. In systems requiring greater power or a faster duty cycle, the additional motor delivers essential support, contributing to an extended service life for the drive system.

Detailed Description:

• The screw feeder bucket is a modern, reliable tool that performs perfectly on cattle, pig, and poultry farms where both the efficiency and speed of feed dispensing are critical.

• This device combines high functionality with dependability, serving as an irreplaceable tool on agricultural farms that require smooth and precise feed dosing.



• Equipped with a hopper featuring a capacity of 1.14 m³, the bucket allows for a larger volume of feed to be loaded in a single cycle, which increases efficiency and shortens the time dedicated to transporting feed to the animals.

• This optimal capacity enables the dispensing of loose feeds, such as grains and meals, as well as mixtures with grass and straw, contributing to time savings and improving efficiency in daily chores.



• The rugged construction, featuring 6 mm thick side walls and a 5 mm thick main shell, ensures strength and resistance to mechanical damage, guaranteeing reliable, long-term operation even under difficult working conditions.

• The cutting edge, made of HB500 steel measuring 150x16 mm, delivers excellent resistance to abrasion, ensuring the long-term performance of the tool even during heavy-duty use.

• As a key component of the bucket, the cutting edge efficiently processes the feed, ensuring its uniform delivery and supporting the optimization of the animal feeding routine.



• The built-in auger mechanism enables precise feed dosing.

• Thanks to an adjustable rotational speed, the user can adapt the dispensing rate to the specific needs of the herd, increasing control over the feeding routine.

• The dual-side discharge capability allows for even feed distribution, which significantly shortens loading and unloading times, increasing the efficiency of the entire process.



• Internal agitators inside the bucket prevent the feed from bridging, ensuring its uniform delivery, which prevents material from clumping and improves feed utilization by the livestock.

• The bucket is engineered with easy maintenance in mind; direct access to the pin lubrication points simplifies routine inspections, and regular greasing ensures the long-term durability of the tool.

  A recommended oil flow of 45 L/min ensures stability and operational output of the attachment, guaranteeing dependable performance across all working conditions. The screw feeder bucket is an indispensable tool that boosts productivity on agricultural farms, contributing to better management of the feeding process and significant time savings.
