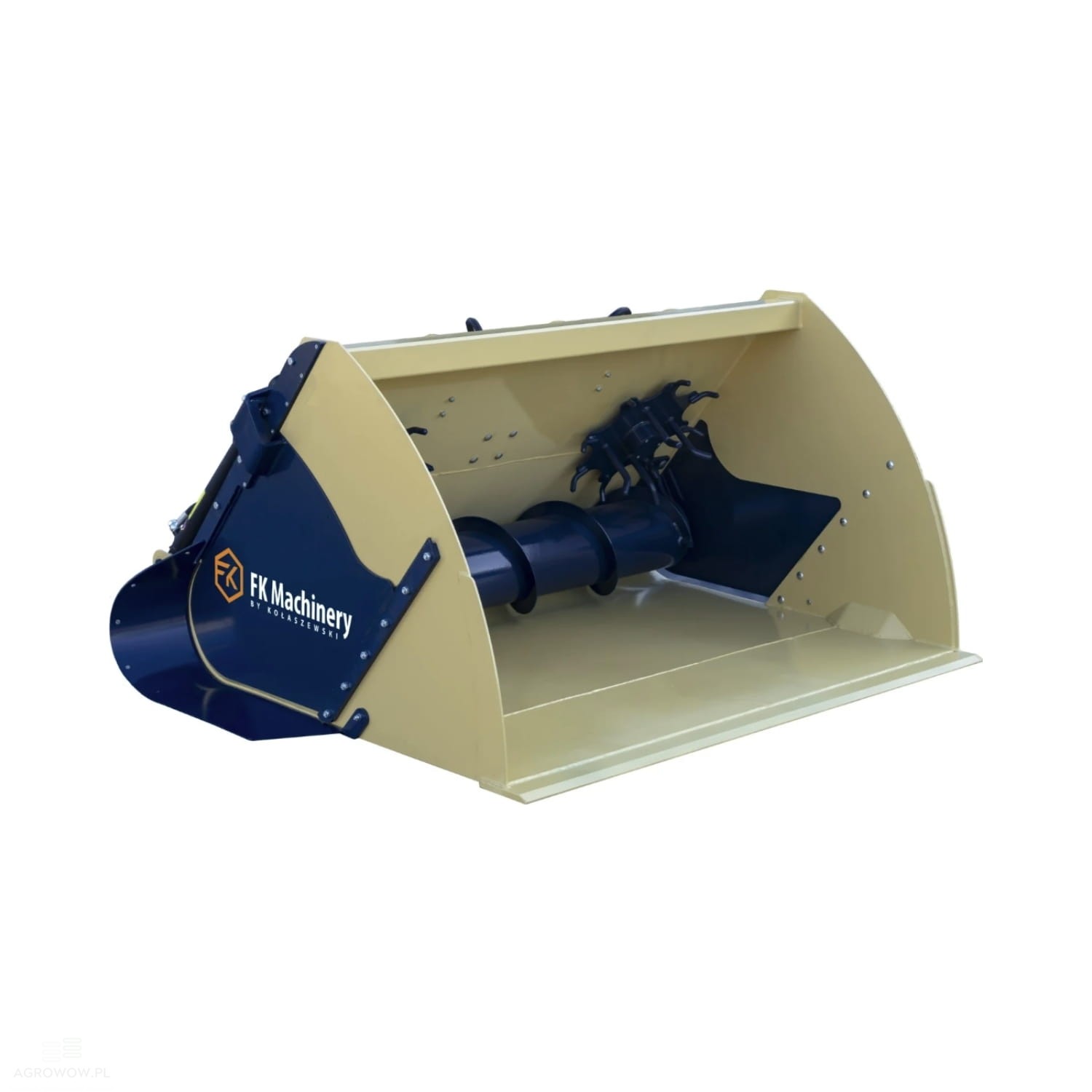

Kołaszewski screw feeder bucket 1.8 x 1.16 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KFBSV180

- Manufacturer's name: Screw feeder bucket

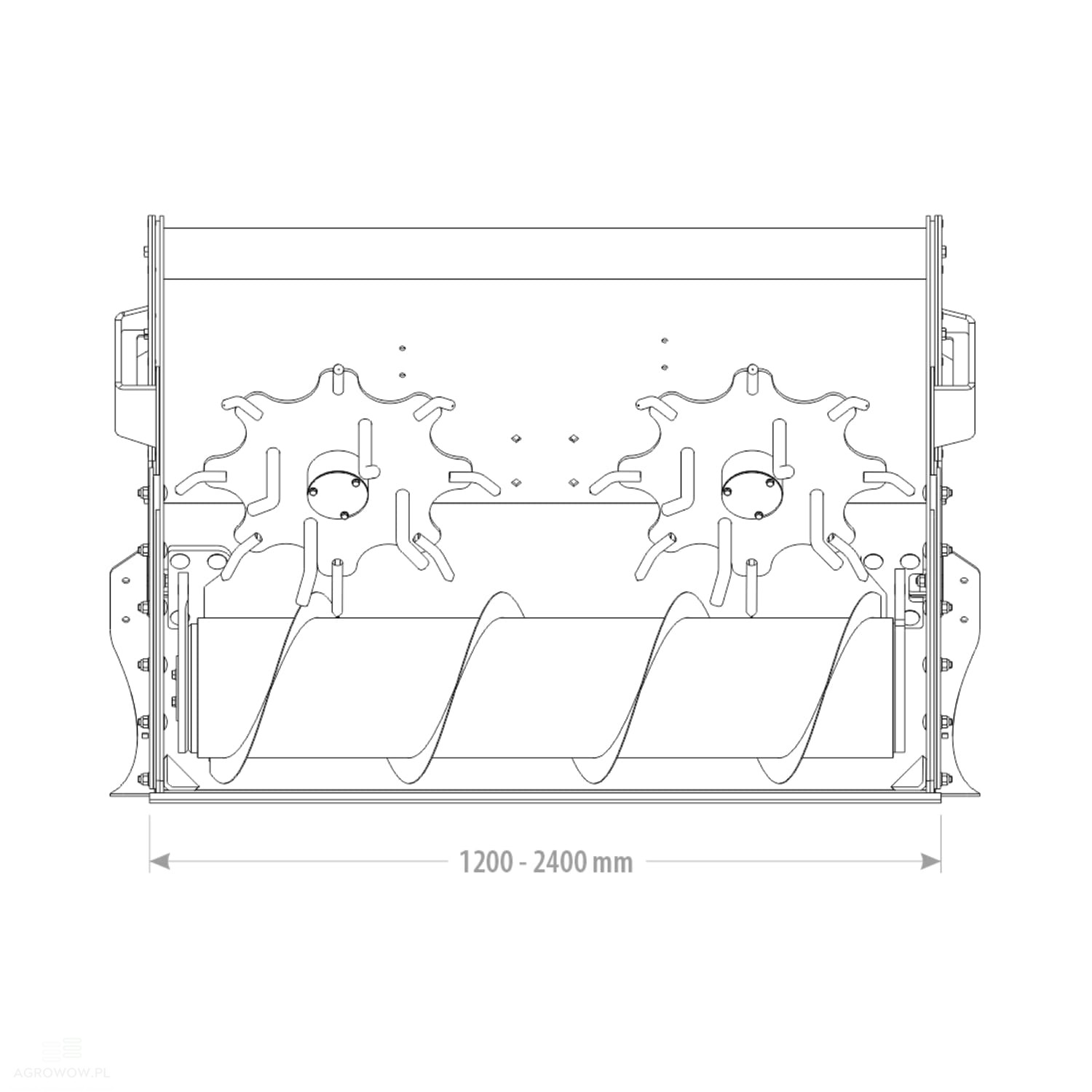

- Width: 1800 mm

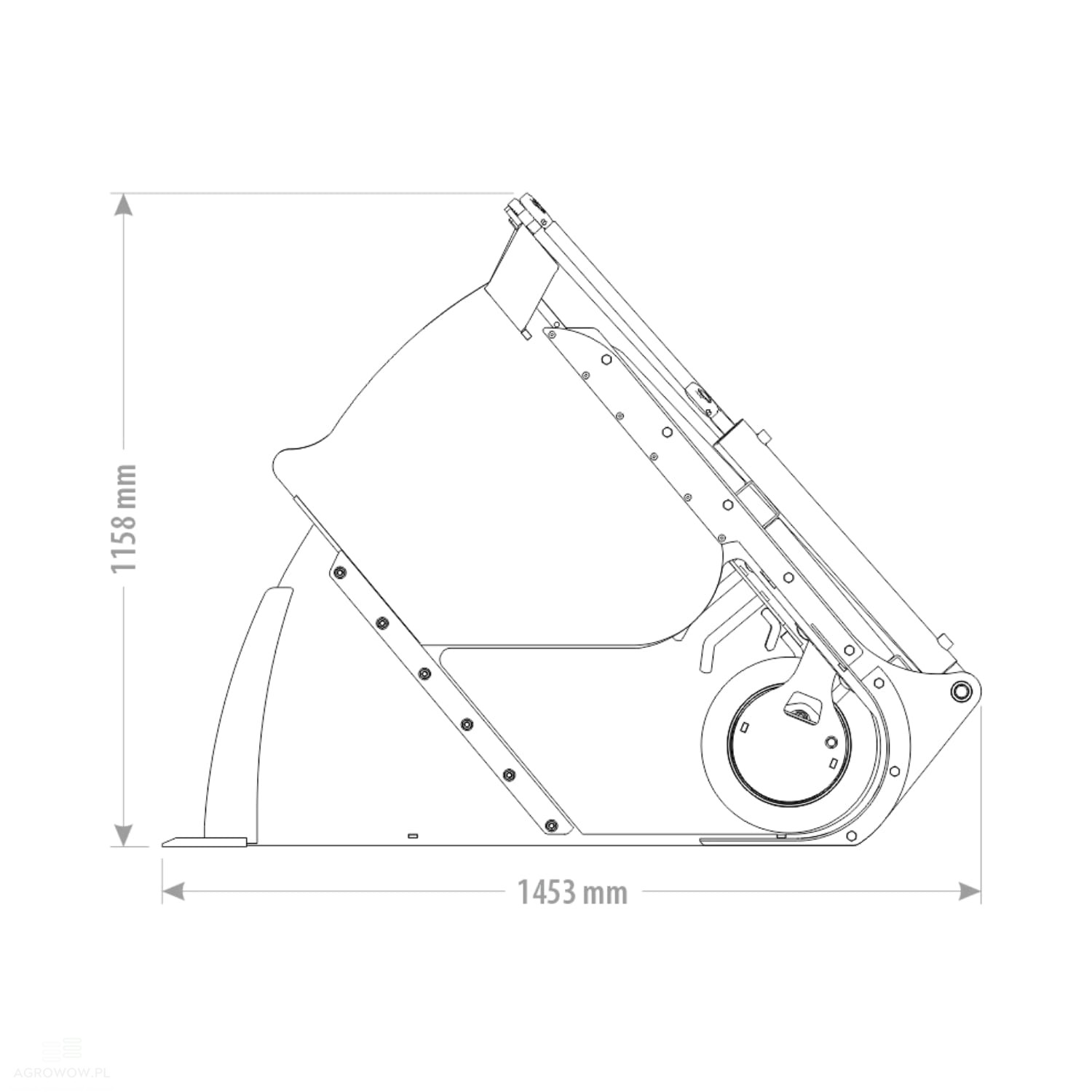

- Length: 1453 mm

- Height: 1158 mm

- Capacity: 1.28 m³

- Weight: 529 kg

- Side wall thickness: 6 mm

- Main shell thickness: 5 mm

- HB500 cutting edge: 150x16 mm

- Dual-side discharge: Capable of feeding to both left and right sides

- Agitators: Internal anti-bridging agitators to prevent feed blockage

- Recommended oil flow: 45 L/min

- Hydraulic motors: 2

Optional Equipment (Extra Charge):

- VMP Relief Valve

The VMP relief valve plays a crucial role in hydraulic systems, ensuring the stability and safety of the entire system. Its primary task is to control pressure by discharging excess working fluid from the circuit when the pressure exceeds a predetermined value. Installing this valve protects the system from overloads, preventing damage and ensuring stable hydraulic performance. The valve is adjustable, allowing the working pressure to be precisely tailored to the specific requirements of the machine.

- Additional Motor

Recommended for feed with grass and straw mixtures. An additional hydraulic motor is mounted to increase torque and improve the operational efficiency of the device, especially during intensive use or when working under challenging conditions. Installing an additional motor allows for an even load distribution, which improves efficiency and provides better control over the attachment. In systems requiring greater power or a faster duty cycle, the additional motor delivers vital support, which also extends the overall service life of the drive system.

Detailed Description:

• The screw feeder bucket is a modern, reliable tool that performs perfectly on cattle, pig, and poultry farms where both the speed and efficiency of feed dispensing are essential.

• This attachment combines exceptional functionality with dependability, serving as an irreplaceable component on agricultural farms that require precise feed dosing in a fast and effective manner.

• Equipped with a hopper featuring a capacity of 1.28 m³, the bucket enables a larger volume of feed to be loaded in a single cycle, which significantly raises work efficiency and shortens the time spent transporting feed to the animals.

• This optimal capacity allows for the dispensing of loose feeds, such as grains and meals, as well as mixtures with grass and straw additives, contributing to time savings and improving the efficiency of daily farm duties.

• The rugged construction, featuring 6 mm thick side walls and a 5 mm thick main shell, ensures high strength and resistance to mechanical damage, which guarantees reliable, long-term operation even under demanding working conditions.

• The cutting edge, made of high-quality HB500 steel measuring 150x16 mm, provides excellent resistance to abrasion, translating into long-term performance of the attachment even during intensive utilization.

• As a key component, the cutting edge efficiently processes the feed, ensuring its uniform delivery, which is essential for optimizing animal feeding routines.

• The built-in auger mechanism enables precise feed dosing.

• Thanks to an adjustable rotational speed, the user can adapt the dispensing rate to the specific needs of the livestock, increasing control over the feeding process.

• The dual-side discharge capability allows for even feed distribution, which increases loading and unloading efficiency while making better use of the working space on the farm.

• Internal agitators prevent the feed from bridging, ensuring uniform dosing and preventing material from clumping, which results in better feed utilization by the animals.

• The design of the screw feeder bucket also prioritizes easy maintenance; straightforward access to the pin lubrication points enables quick inspections, extending the service life of the tool.

• A recommended oil flow of 45 L/min ensures stability and high output of the attachment, guaranteeing dependable operation across all working conditions.

• The screw feeder bucket is an indispensable tool that boosts productivity on agricultural farms, contributing to the optimization of the feeding routine and significant time savings.
