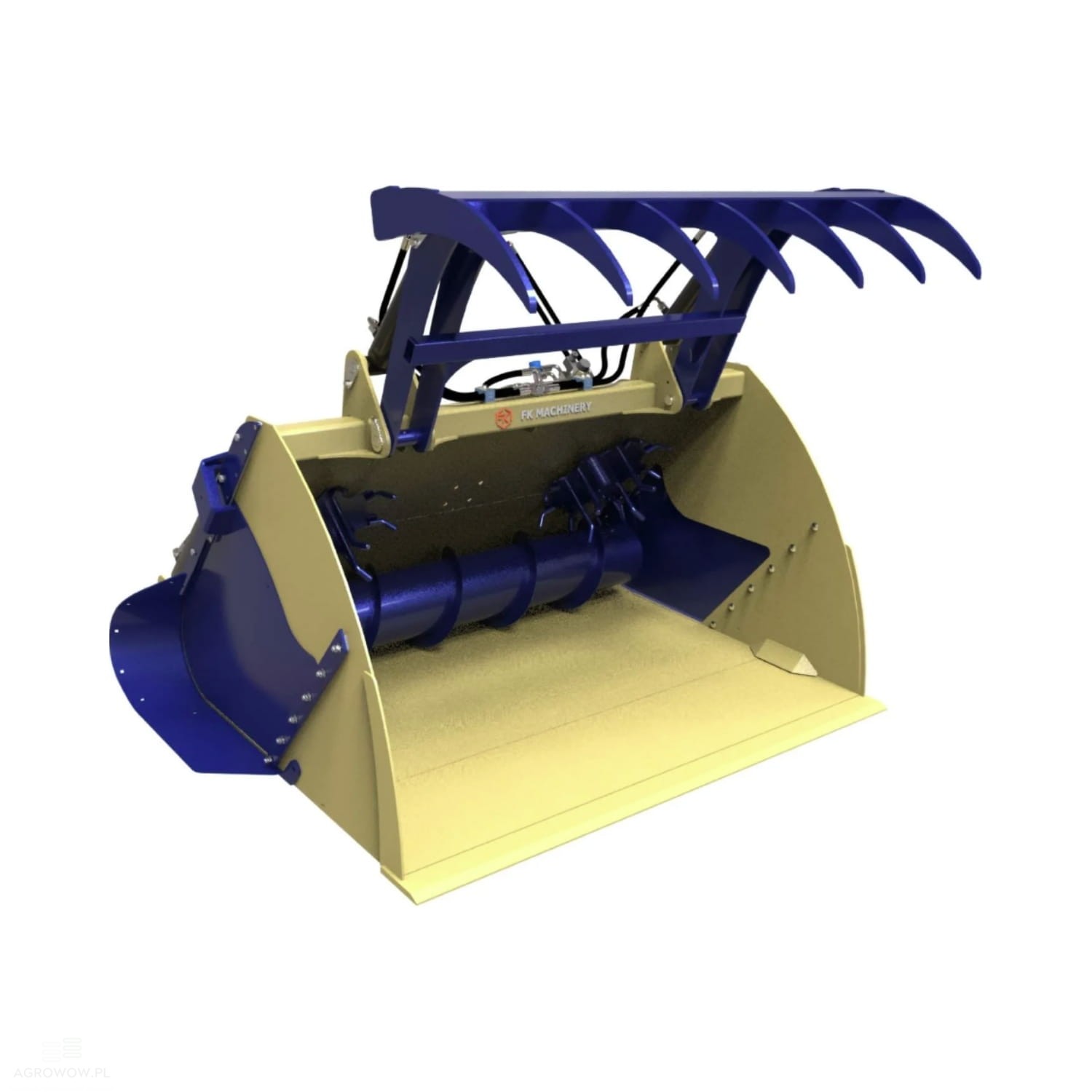

Kołaszewski screw feeder bucket with top clamp 1.8 x 1.05 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Adres e-mail: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KFBWGS180

- Manufacturer's name: Screw feeder bucket with top clamp

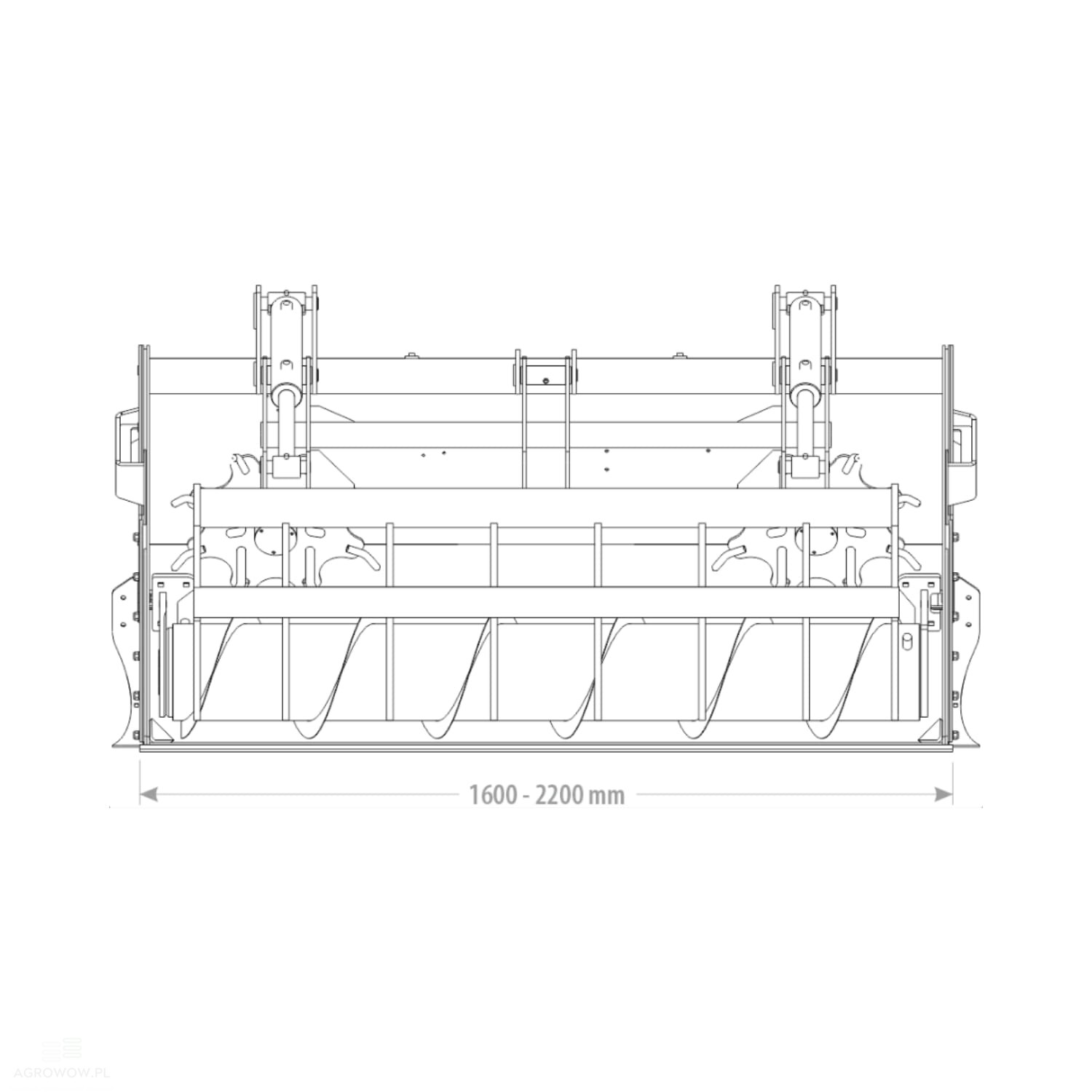

- Width: 1800 mm

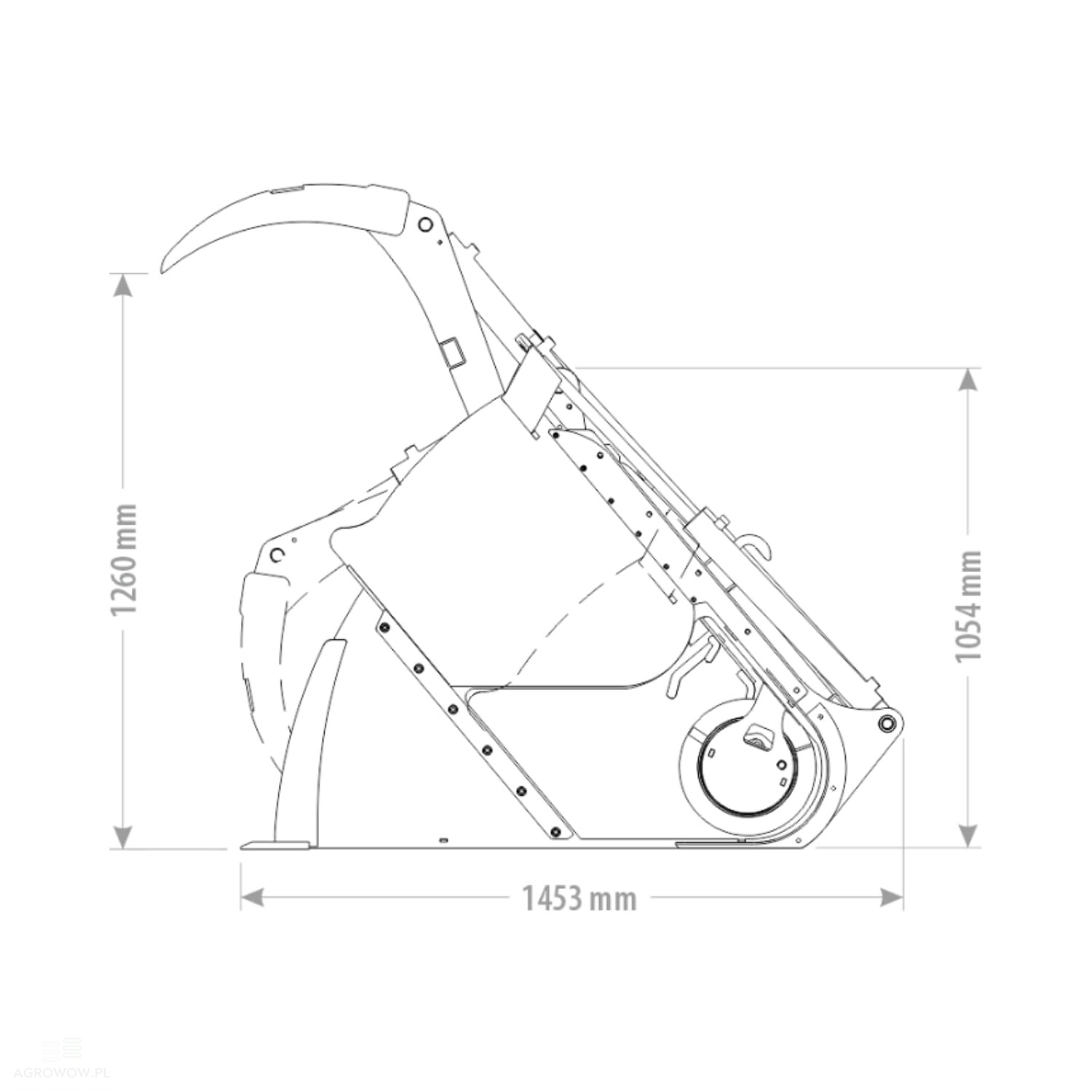

- Length: 1453 mm

- Bucket height: 1054 mm

- Bucket height with top clamp: 1260 mm

- Capacity: 1.28 m³

- Weight: 698 kg

- Side wall thickness: 6 mm

- Main shell thickness: 5 mm

- HB500 cutting edge: 150x16 mm

- Recommended oil flow: 45 L/min

- Hydraulic spool valves required: Only 1 double-acting hydraulic section required

- Hydraulic motors: 2

- Feeder motor: Integrated hydraulic motor in the feeder mechanism

- Holding clamp: Heavy-duty top clamp for feed harvesting and containment

Optional Equipment (Extra Charge):

- VMP Relief Valve

The VMP-type relief valve is an exceptionally important protective component in hydraulic systems, designed to maintain the operating pressure at a safe level. When the system pressure exceeds the maximum allowable limit, the valve automatically opens and discharges excess hydraulic fluid, thereby preventing overloads and damage to system components. The adjustability of the valve allows it to be precisely tailored to the individual requirements of a given system, ensuring the reliable, safe, and stable operation of the entire hydraulic circuit.

- Additional Motor

Recommended for feed with grass and straw mixtures. An additional hydraulic motor provides effective support for the drive system, particularly recommended when working with feeds containing high-fiber ingredients such as grass or straw. By increasing the torque, this motor improves the device's efficiency and ensures smoother operation. It contributes to a better distribution of loads within the system, reducing the risk of overloads and component wear, which translates into a longer lifespan and greater reliability of the system—even under intensive, daily use.

Detailed Description:

• The 1800 mm wide screw feeder bucket with a top clamp is a technologically advanced tool designed for intensive use on modern agricultural farms.

• It performs exceptionally well in both smaller livestock operations and large scales farms where efficiency, durability, and precise feed dosing are paramount.

• The well-thought-out dimensions—featuring a length of 1453 mm, a bucket height of 1054 mm (1260 mm with the clamp engaged)—combined with a working capacity of 1.28 m³, make this bucket perfectly suited for both spacious barns and narrow feed alleys, allowing for comfortable maneuvering and operation even in hard-to-reach places.

• The foundation of the device's functionality is the auger screw mechanism equipped with two hydraulic motors, which guarantee uniform, smooth, and safe feed dispensing—for both dry and slightly moist forage, including mixtures containing grass, straw, or other fibrous components.

• The rotational speed can be adjusted according to current needs, increasing control over the feeding process.

• Furthermore, the additional hydraulic motor integrated into the feeder mechanism increases torque under the most demanding conditions, protecting the system from overloads and streamlining the processing of feed with an irregular structure, which is crucial for intensive, all-day utilization.

• The built-in top clamp is a highly functional feature that enables efficient feed scooping directly from silos and silage pits, as well as stabilizing the material during transit.

• Thanks to this, the operator can work faster without the risk of spilling the load while moving across the farm yard.

• The heavy-duty construction of the bucket is fabricated from high-strength steel—featuring 6 mm thick side walls and a 5 mm main shell—ensuring high resistance to dynamic loads, mechanical impacts, and abrasion under daily working conditions.

• The lower scraping edge is fitted with a durable cutting edge made of wear-resistant HB500 steel (150x16 mm), which effectively aids the material scooping process from the ground while simultaneously protecting structural elements from intense wear.

• Operating the bucket requires only a single hydraulic section, making it extremely practical and easy to integrate with a wide range of agricultural equipment—from classic tractors with front loaders to compact wheel loaders.

• A recommended hydraulic oil flow of 45 L/min enables energy-efficient, quiet, and stable operation of the entire mechanism, guaranteeing precise and trouble-free feed dosing.

• The 1800 mm model is a smart investment for farmers looking for dependable, functional equipment that maximizes convenience during daily farm duties.

• Thanks to its modern design, high output, and long service life, this feeder bucket significantly contributes to raising the efficiency and ergonomics of the livestock feeding process.
