Kołaszewski screw feeder bucket with top clamp 2.0 x 1.05 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KFBWGS200

- Manufacturer's name: Screw feeder bucket with top clamp

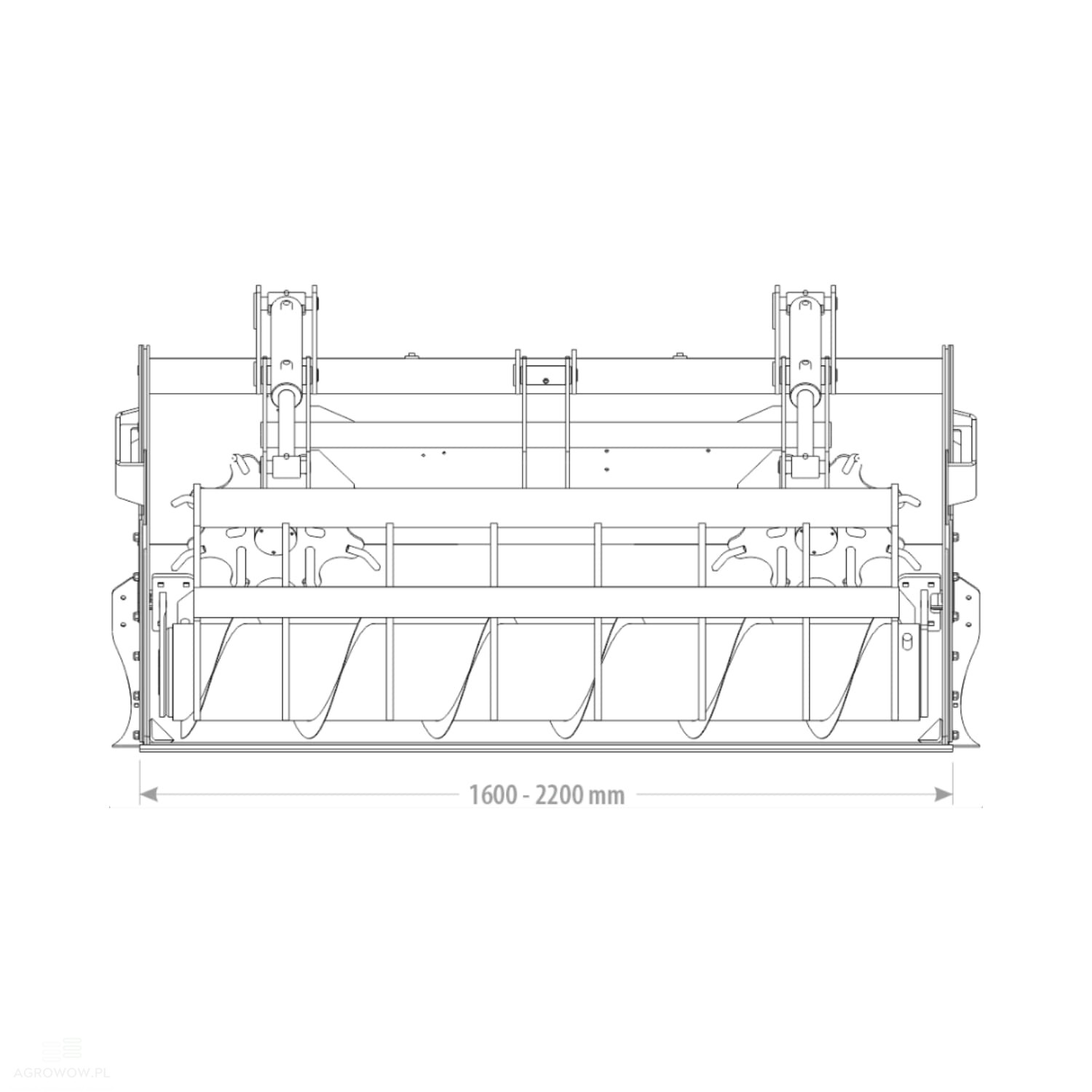

- Width: 2000 mm

- Length: 1453 mm

- Bucket height: 1054 mm

- Bucket height with top clamp: 1260 mm

- Capacity: 1.42 m³

- Weight: 765 kg

- Side wall thickness: 6 mm

- Main shell thickness: 5 mm

- HB500 cutting edge: 150x16 mm

- Recommended oil flow: 45 L/min

- Hydraulic spool valves required: Only 1 double-acting hydraulic section required

- Hydraulic motors: 2

- Feeder motor: Integrated hydraulic motor in the feeder mechanism

- Holding clamp: Heavy-duty top clamp for feed harvesting and containment

Optional Equipment (Extra Charge):

- VMP Relief Valve

The VMP relief valve serves an essential protective function in hydraulic systems, responsible for maintaining the pressure at an appropriate, safe level. When the maximum allowable operating pressure is exceeded, the valve automatically opens, allowing excess fluid to be discharged from the system. This protects the circuit from overload and potential component damage. Thanks to its adjustment feature, the valve can be tailored to the specific parameters of the installation, ensuring stable, trouble-free, and safe operation of the entire hydraulic system.

- Additional Motor

Recommended for feed with grass and straw mixtures. The optional hydraulic motor is an excellent addition to the main drive, especially when feeding materials with a high fiber content, such as straw or grass. It allows for an increase in torque, which improves the device's efficiency and operational smoothness. By distributing the loads evenly, the additional motor reduces the risk of overloads and mechanism wear, raising the overall reliability and lifespan of the machine—even during intensive and regular use in demanding conditions.

Detailed Description:

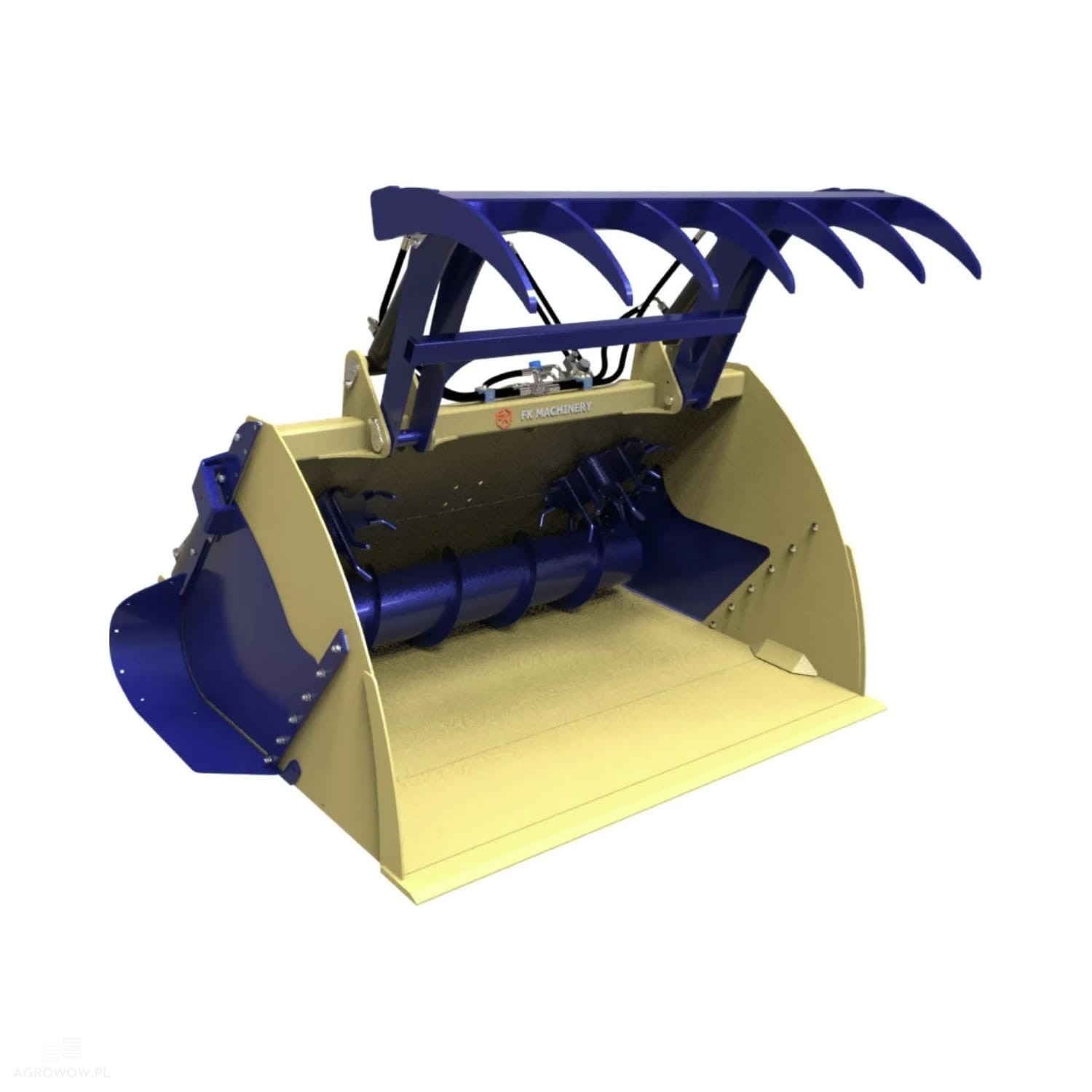

• The 2000 mm wide screw feeder bucket with a top clamp is an advanced tool created for intensive use on professional agricultural farms where reliability, efficiency, and precise livestock feeding are paramount.

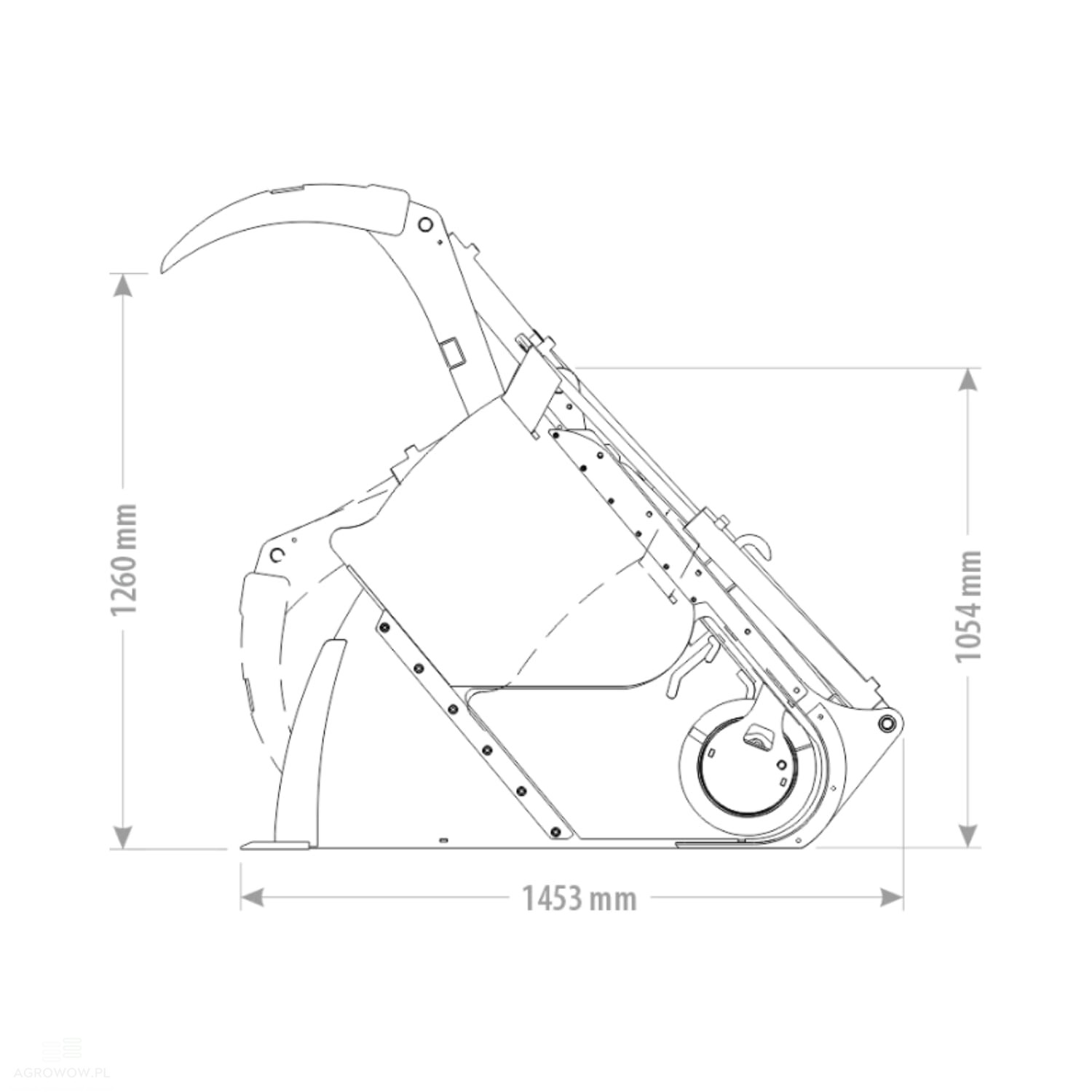

• The bucket's dimensions—a length of 1453 mm and a height of 1054 mm (1260 mm with the clamp engaged)—combined with a working capacity of 1.42 m³, allow for efficient and comfortable use both in large barns and tight feeding spaces.

• The design ensures easy maneuvering while maintaining high operational productivity.

• The main operation of the device is based on a robust auger mechanism powered by two hydraulic motors.

• This system enables uniform, controlled dispensing of a variety of feeds—ranging from dry mixes to those with higher moisture content containing grass, straw, or other fibrous ingredients.

• The rotational speed control allows the operator to adapt the dosing process to the needs of the herd and specific nutritional requirements.

• Further boosting performance, the additional hydraulic motor integrated into the feeder mechanism increases torque, which is particularly useful in more difficult working conditions.

• It supports the smooth operation of the entire system and safeguards the mechanism against overloads, guaranteeing uninterrupted and efficient performance even during intensive use.

• The built-in top clamp significantly enhances the functionality of the attachment—enabling effective feed harvesting directly from silage pits and silos, as well as stabilizing the material during transit.

• This minimizes spillage losses and increases operator working efficiency.

• The construction of the bucket is based on heavy-duty materials, featuring 6 mm thick side walls and a 5 mm main shell, which ensures high resistance to abrasion and intensive wear under daily farm conditions.

• The lower scraping edge is fitted with a durable cutting edge made of wear-resistant HB500 steel (150x16 mm), which effectively aids in clean material scooping from the ground while simultaneously protecting the lower sections of the structure from mechanical damage.

• Operating the bucket requires only a single hydraulic section, simplifying integration with your existing equipment.

• The model is highly compatible with most agricultural tractors equipped with front loaders, as well as compact loaders.

• A recommended hydraulic oil flow of 45 L/min ensures energy-efficient, stable, and quiet operation of the auger screw and the entire dosing mechanism.

• The 2000 mm model is an excellent choice for farms focused on modern, optimized livestock production.

• It combines high efficiency, rugged construction, and ease of operation, directly contributing to increased productivity in daily feeding routines.
