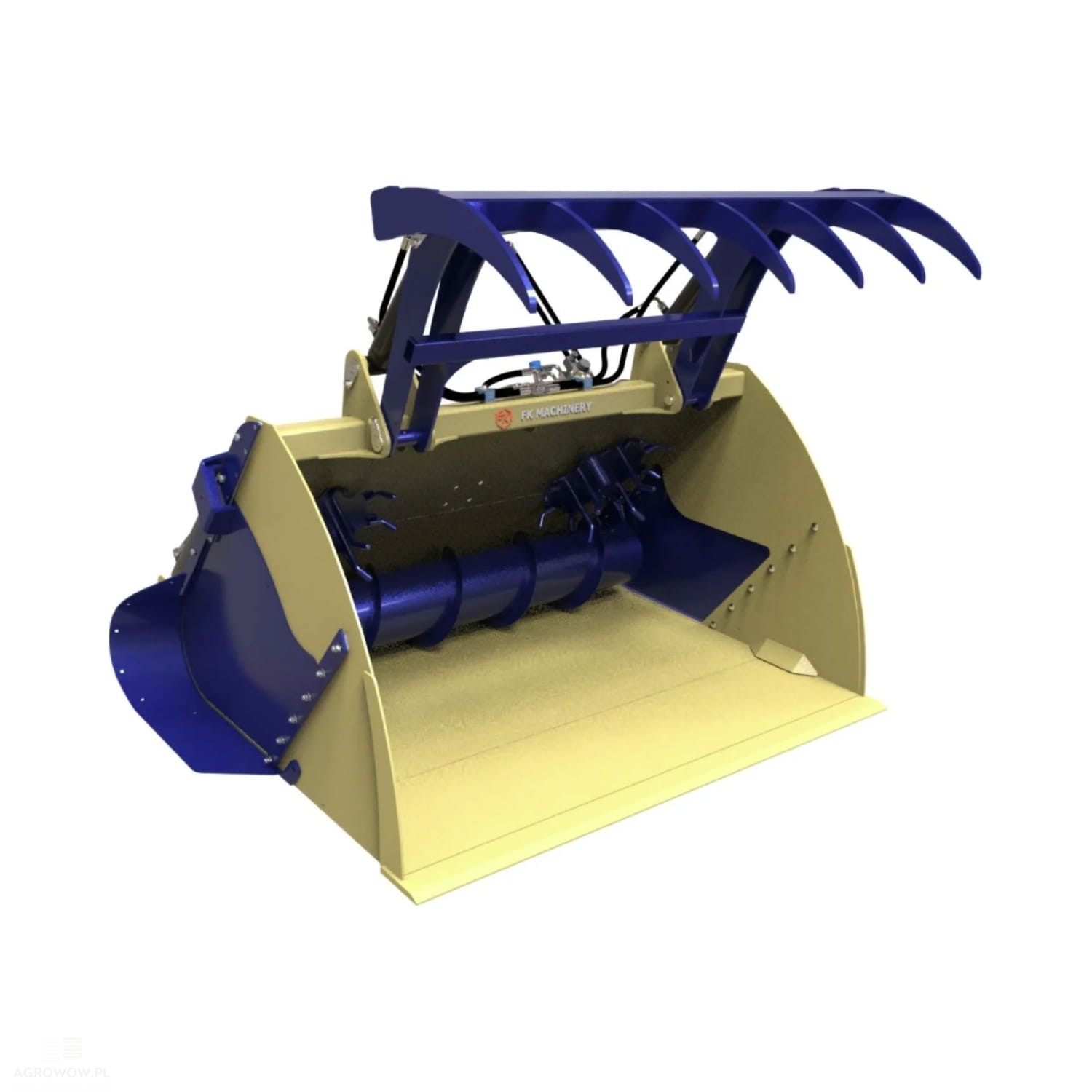

Kołaszewski screw feeder bucket with top clamp 2.2 x 1.05 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KFBWGS220

- Manufacturer's name: Screw feeder bucket with top clamp

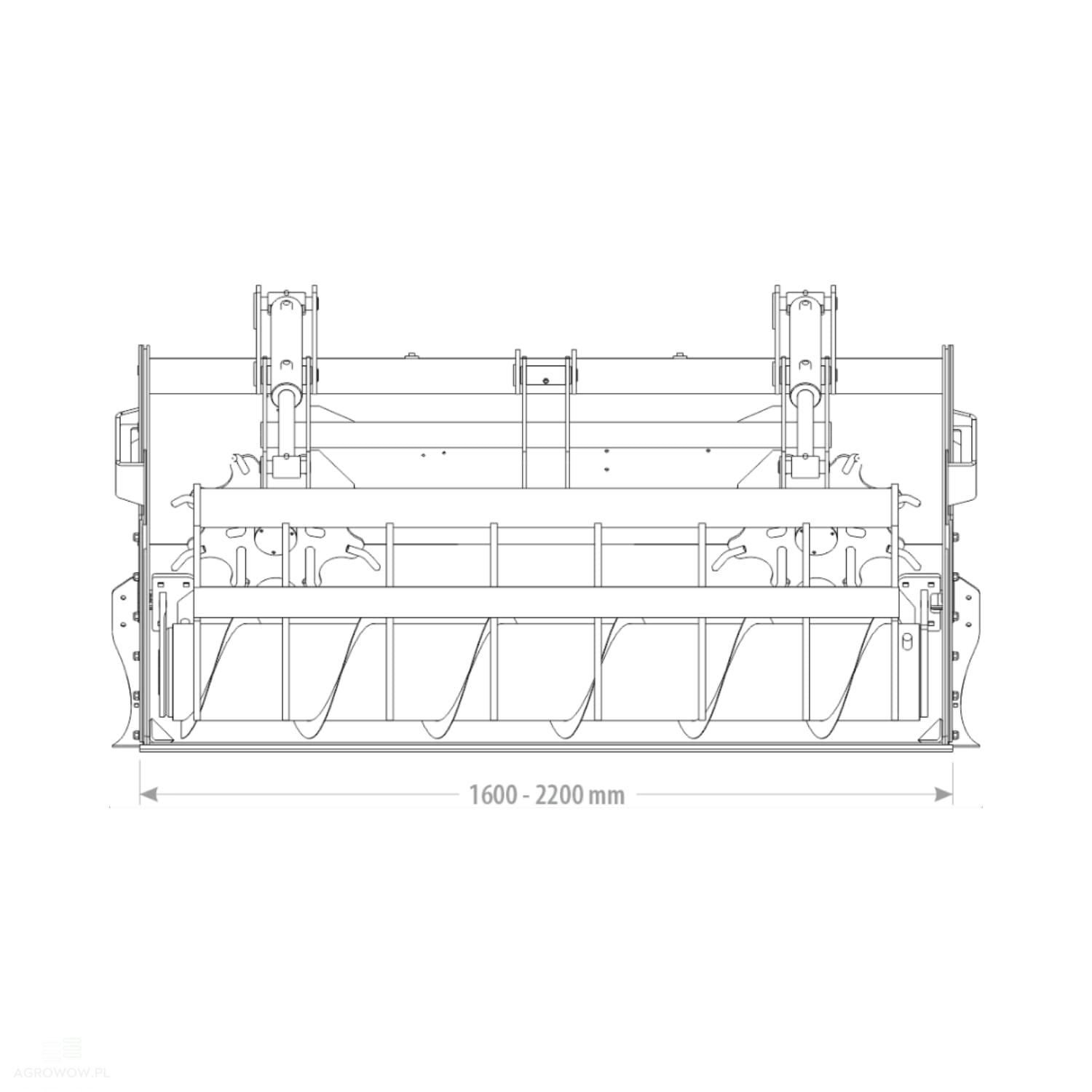

- Width: 2200 mm

- Length: 1453 mm

- Bucket height: 1054 mm

- Bucket height with top clamp: 1260 mm

- Capacity: 1.56 m³

- Weight: 819 kg

- Side wall thickness: 6 mm

- Main shell thickness: 5 mm

- HB500 cutting edge: 150x16 mm

- Recommended oil flow: 45 L/min

- Holding clamp: Heavy-duty top clamp for feed harvesting and containment

- Hydraulic spool valves required: Only 1 double-acting hydraulic section required

- Hydraulic motors: 2

- Feeder motor: Integrated hydraulic motor in the feeder mechanism

Optional Equipment (Extra Charge):

- VMP Relief Valve

The VMP-type relief valve is a crucial protective component in hydraulic systems, designed to maintain a safe operating pressure level. When the system pressure exceeds the preset limit, the valve automatically opens to discharge excess fluid, safeguarding the installation against overloads and potential component damage. The adjustability of the valve allows for precise tuning to the requirements of a specific system, resulting in reliable, stable, and safe operation of the entire hydraulic circuit.

-Additional Motor

Recommended for feed with grass and straw mixtures. An auxiliary hydraulic motor provides practical support for the main drive system, particularly when working with high-fiber feeds such as grass or straw. It boosts torque, which eases handling of more demanding materials while improving the overall smoothness of the system. Better distribution of the drive load results in a lower risk of overloads and mechanical wear, thereby extending the service life and reliability of the equipment, even during prolonged, intensive operation.

Detailed Description:

• The 2200 mm wide screw feeder bucket with a top clamp is a modern solution developed for large-scale agricultural farms that prioritize efficiency, precision, and reliability in daily livestock feeding routines.

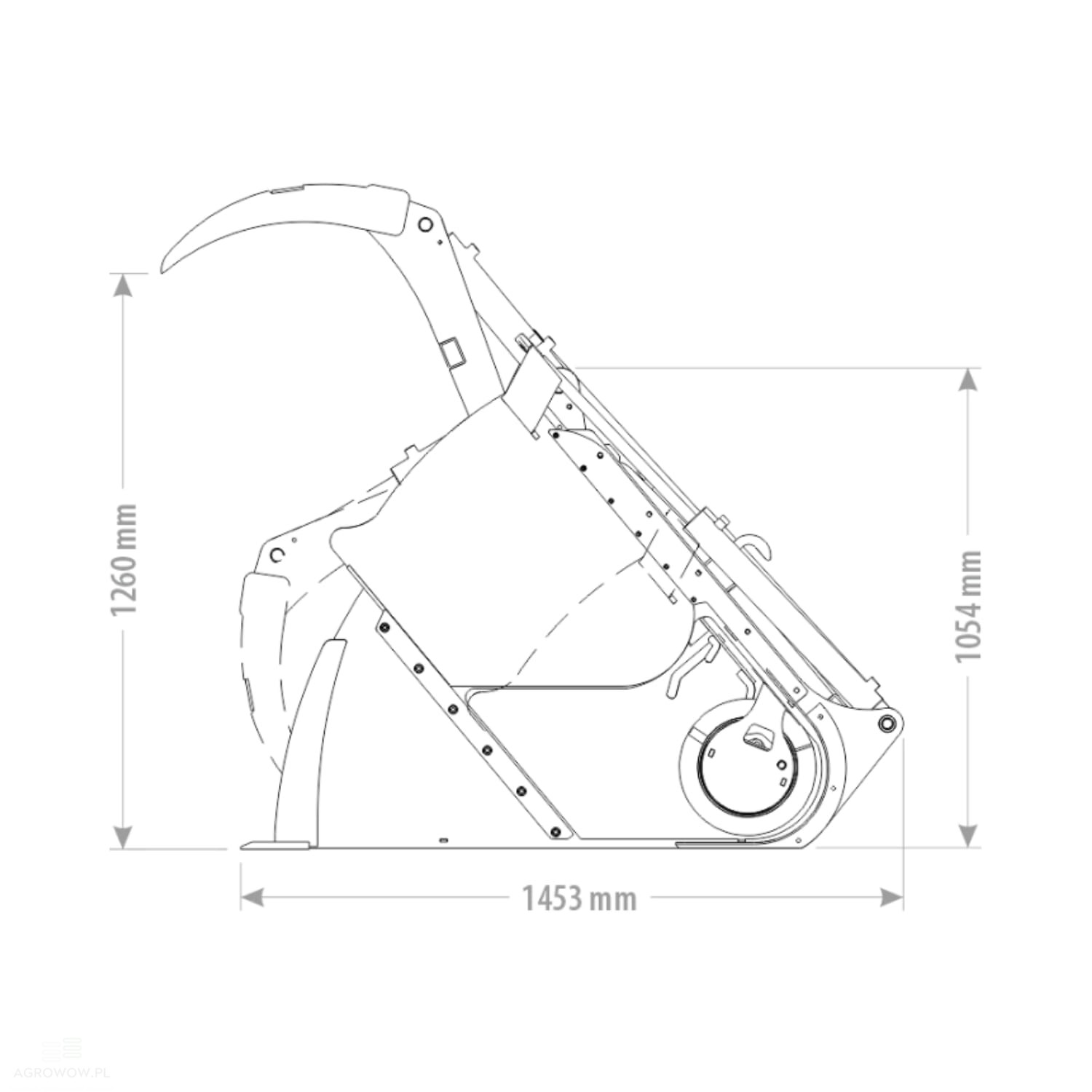

• Thanks to its well-thought-out dimensions—featuring a length of 1453 mm, a bucket height of 1054 mm (1260 mm with the clamp engaged), and a working capacity of 1.56 m³—the device allows for rapid loading and effective feed dosing, even in challenging space constraints.

• The design facilitates easy maneuvering in both wide feed alleys and tight feeding passages.

• The auger screw mechanism, powered by two hydraulic motors, guarantees smooth and uniform dispensing of various feed types—ranging from dry mixes to forage containing moist and fibrous ingredients like straw or grass.

• The adjustable speed control allows the operator to adapt the process to the individual needs of the herd.

• Furthermore, the additional hydraulic motor integrated into the feeder supports the main drive, translating into higher torque and increased operational reliability—even during intensive, continuous use with demanding materials.

• The front-mounted top clamp plays an essential role when harvesting feed directly from silage pits or silos—effectively securing the material and stabilizing its position during transit, which minimizes spillage losses and maximizes feeding efficiency.

• The heavy-duty frame is fabricated from high-grade steel elements—featuring 6 mm thick side walls and a 5 mm main shell—guaranteeing high resistance to mechanical damage and wear, making the attachment ideal for intensive use in demanding livestock environments.

• The lower section of the bucket is outfitted with a cutting edge made of wear-resistant HB500 steel (150x16 mm), which effectively aids in clean material scooping from the ground while providing extra protection for the bucket structure against mechanical wear.

• Operating the attachment requires only a single hydraulic section, greatly simplifying its integration with most agricultural tractors and loaders available on the market, including machinery from brands such as John Deere, Case IH, Zetor, New Holland, Ursus, Kubota, and Massey Ferguson.

• A recommended oil flow of 45 L/min ensures stable, energy-efficient operation of the auger mechanism and precise control over the dosing process, enhancing operator comfort and overall herd feeding efficiency.

• This 2200 mm model with a top clamp is an ideal choice for farms seeking a dependable, robust, ergonomic, and highly versatile tool optimized for peak daily performance.
