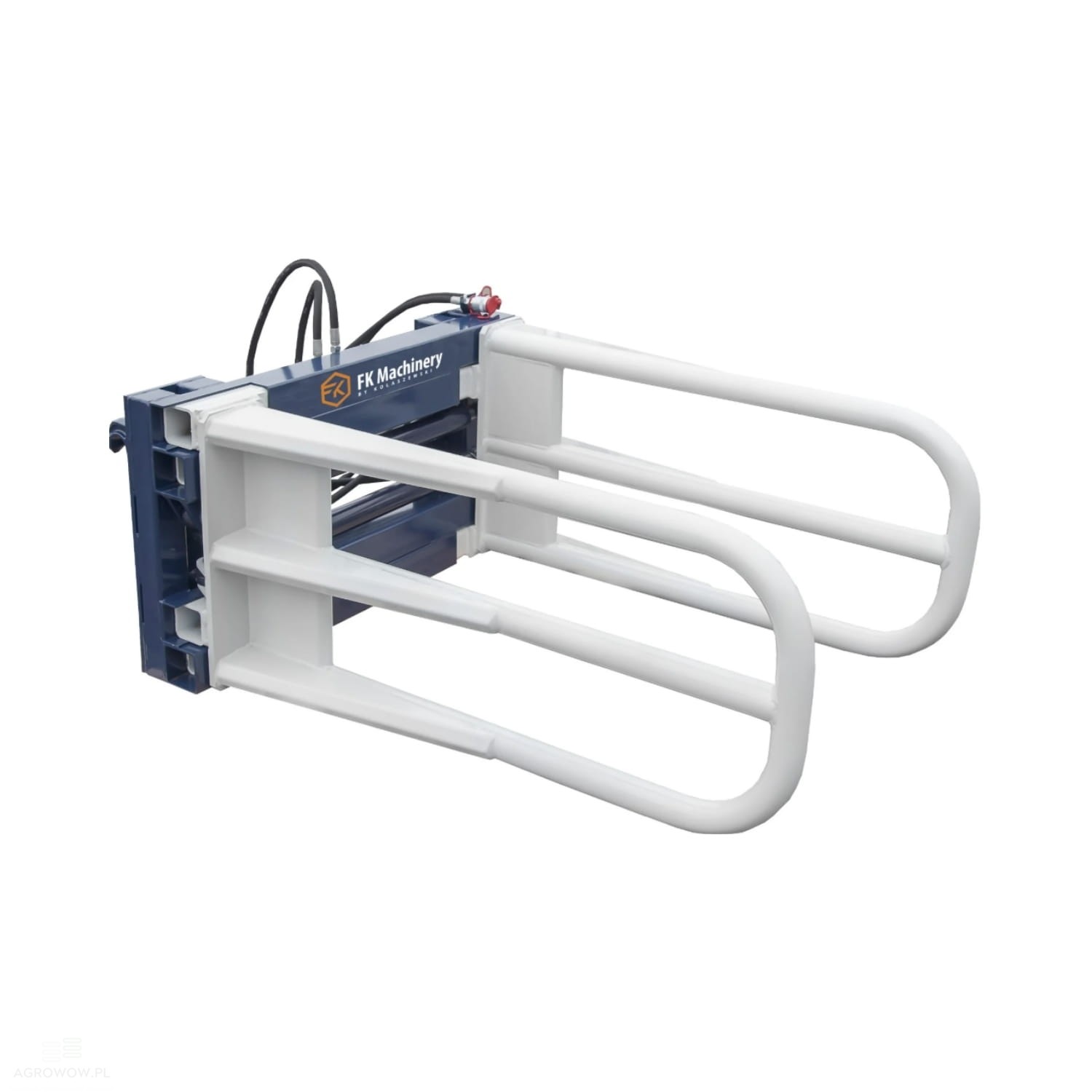

Kołaszewski square bale grabber G

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KUSBG

- Manufacturer's name: Square bale grabber

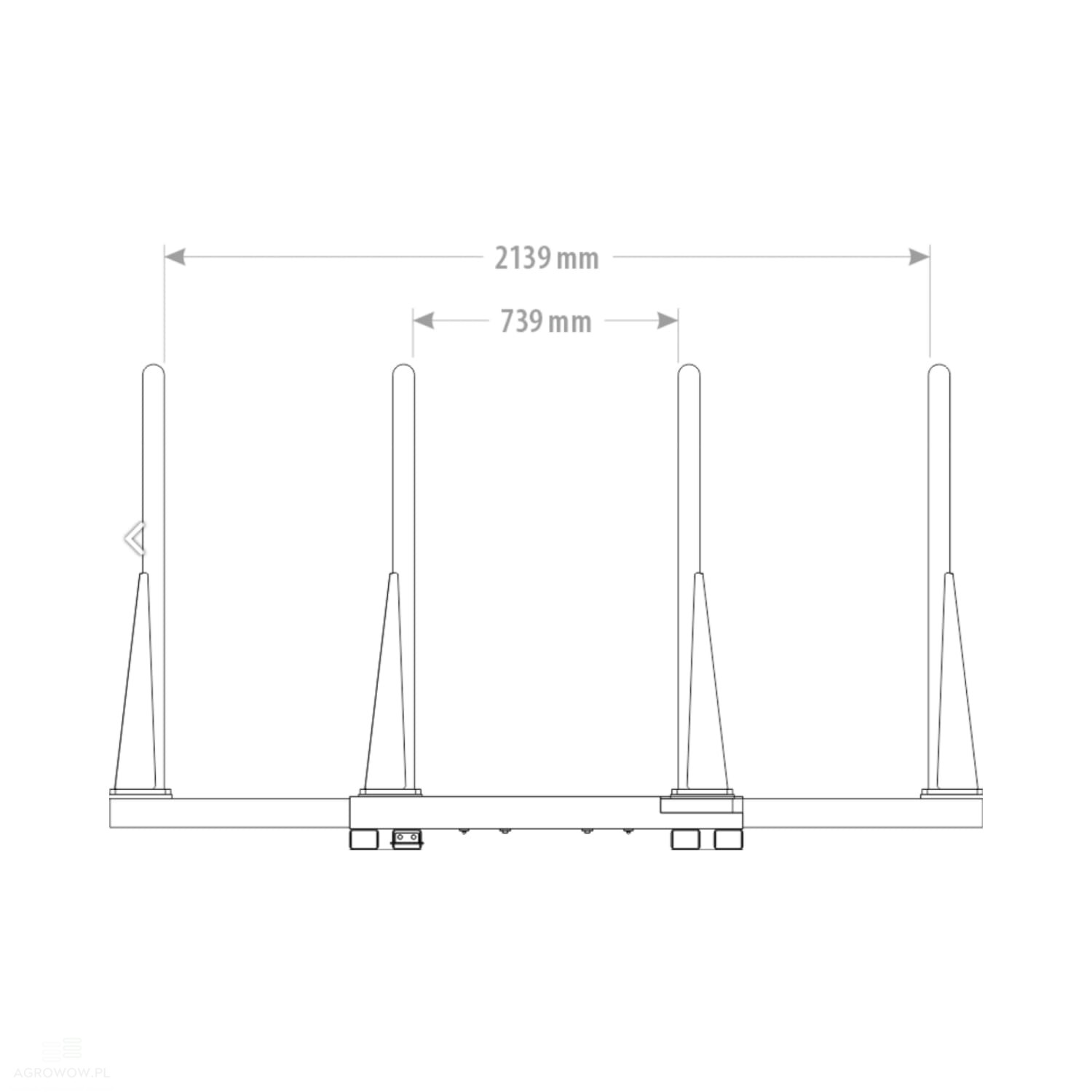

- Grabber width (closed/minimum): 739 mm

- Maximum grabber width (open): 2139 mm

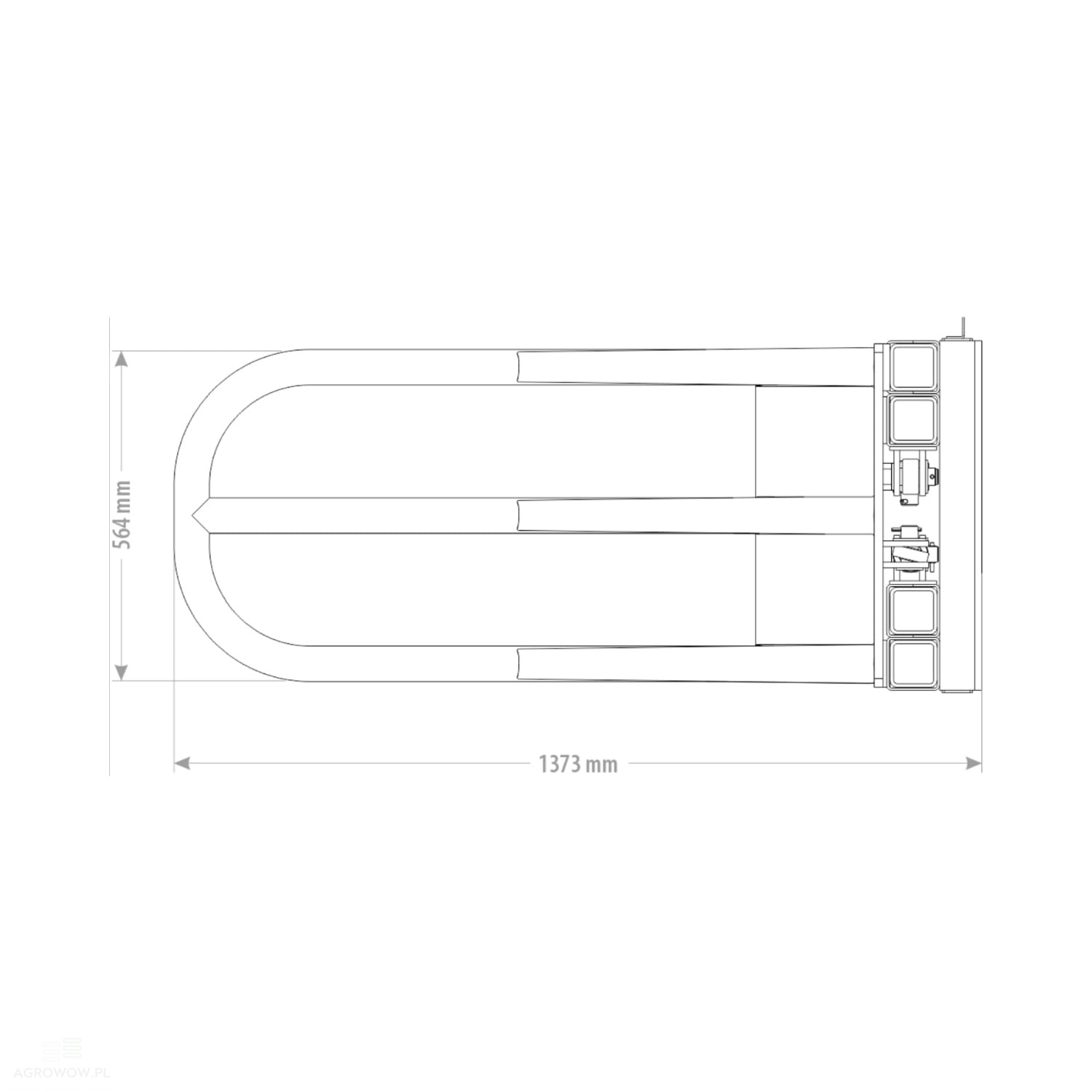

- Grabber length: 1373 mm

- Height: 564 mm

- Bale size range: 800–2100 mm

- Load capacity: 1000 kg

- Weight: 300 kg

- Arm tube dimensions: 60x3 mm

- Arm adjustment range: Wide span adjustment

- Hydraulic cylinders: 2

Optional Equipment (Extra Charge):

- DFL Flow Divider

An advanced hydraulic device designed to evenly distribute the flow of working fluid between different circuits in the hydraulic system. Thanks to its design, the divider ensures optimal efficiency and control over individual working systems, which is crucial in machines that require simultaneous management of multiple circuits. The device enables precise pressure distribution, which improves the operational efficiency of the entire system, while its robust construction guarantees reliability even in harsh operating conditions. The DFL flow divider is used across various industries, such as agriculture, construction, and the automotive sector, where precise fluid flow management is essential for proper machinery operation. Utilizing durable materials, easy maintenance, and longevity, this device ensures dependability in demanding work environments.

- VMP Relief Valve

An advanced hydraulic component whose primary purpose is to maintain proper pressure within hydraulic systems. Its function is to discharge excess working fluid from the system when the pressure exceeds a set limit, preventing overloads and damage to the system. Through this function, the VMP valve maintains the operational stability of the hydraulic system and ensures its high efficiency. Equipped with a pressure regulation mechanism, it allows precise adjustment of operating parameters to match the system's requirements. Additionally, the valve features sensors that monitor the pressure and temperature of the working fluid, transmitting this data to an electronic controller. Based on this information, the controller generates electrical impulses that alter the valve setting, precisely controlling the fluid flow and ensuring optimal system performance under varying working conditions. The VMP valve is used in agricultural and construction machinery, as well as other applications where fluid pressure control is critical for system safety and performance.

- Adjustable Support

A hydraulic or mechanical element used to stabilize working machinery, particularly in challenging terrain conditions. Thanks to its adjustable height, it enables the equipment to adapt to various surfaces and working environments, ensuring optimal stability and safety during operation. The design of the adjustable support allows for quick and easy height modification, which is indispensable for machines operating on uneven or unstable surfaces. This is especially important in sectors such as construction, agriculture, and transport, where machine stability directly affects work efficiency and precision. The adjustable support increases operator safety by preventing the machine from tipping over, while also providing more comfortable and precise machine handling under different working conditions. Due to its solid construction and ease of use, it is an irreplaceable component in many modern working machines.

Detailed Description:

• The bale grabber is a heavy-duty agricultural tool engineered for the efficient transport and handling of bales of various dimensions, such as straw, hay, or silage bales.

• Featuring a robust design, the grabber ensures outstanding stability and safety when operating under demanding agricultural conditions.

• Weighing 300 kg, the grabber can handle bales with a maximum load capacity of up to 1000 kg, guaranteeing adequate lifting force and stability even when transporting heavier bales.

• This tool is a perfect match for large agricultural farms where daily operations involving the transport and stacking of bales constitute a major part of the business.

• The grabber features a length of 1373 mm and a maximum arm opening width of 2139 mm, allowing it to handle bales with diameters ranging from 800 mm to 2100 mm, ensuring immense flexibility and operational versatility.

• This wide arm opening span makes the grabber highly universal, enabling safe and effective gripping of bales of various diameters, which significantly increases its functionality.

• The 60x3 mm thick arm tube provides exceptional durability and resistance to mechanical damage, which is crucial in challenging operating environments such as uneven terrain or intensively utilized areas.

• The grabber is equipped with two hydraulic cylinders that provide smooth, precise, and efficient arm operation, allowing for rapid gripping and releasing of bales.

• This twin-cylinder configuration delivers extra stability and workflow efficiency, ensuring long-term, trouble-free equipment operation while minimizing the risk of downtime.

• The grabber's geometry is designed to maximize reach, enabling convenient manipulation of bales of different diameters under varying working conditions, which provides even greater flexibility on the job.

• Additionally, the grabber features retractable parking stands that simplify storage and provide greater stability, especially when parking the attachment on uneven ground.

• Compatibility with front loaders and easy integration with agricultural machinery make this grabber an excellent solution for daily farm duties.

• It is a versatile tool that performs brilliantly across different types of farms, enabling the transport of straw, hay, silage bales, and other materials of similar dimensions.

• The adjustable arm span allows for the secure handling of bales of various diameters, providing great flexibility and convenience according to current needs.

• The solid structure and high-quality materials guarantee durability and resistance to mechanical wear, which extends the device's service life and ensures long-term reliability.

• Furthermore, the optimized hydraulic layout and precision engineering of all components ensure faultless operation—something particularly vital on farms where every minute of downtime impacts overall work efficiency.

• The bale grabber is a dependable tool that guarantees high efficiency and safety during bale transport, enabling quick and secure transfer.

• Thanks to its rugged build, high lifting capacity, and optimal adaptation to various bale types, this grabber elevates both productivity and comfort during farm operations.
