Kołaszewski volumetric screw feeder bucket 1.4 x 1.15 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: FBSV140

- Manufacturer's name: Volumetric screw feeder bucket

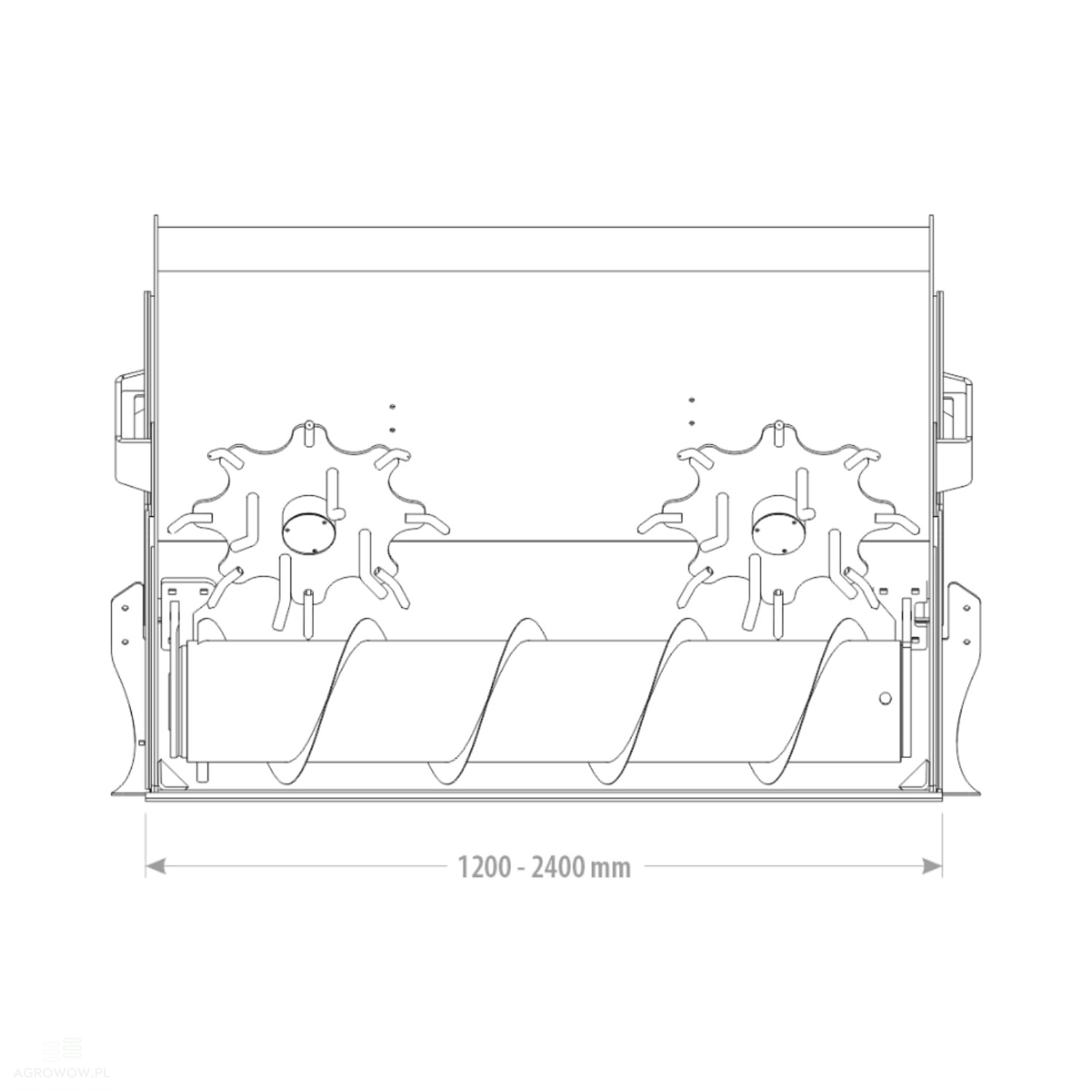

- Width: 1400 mm

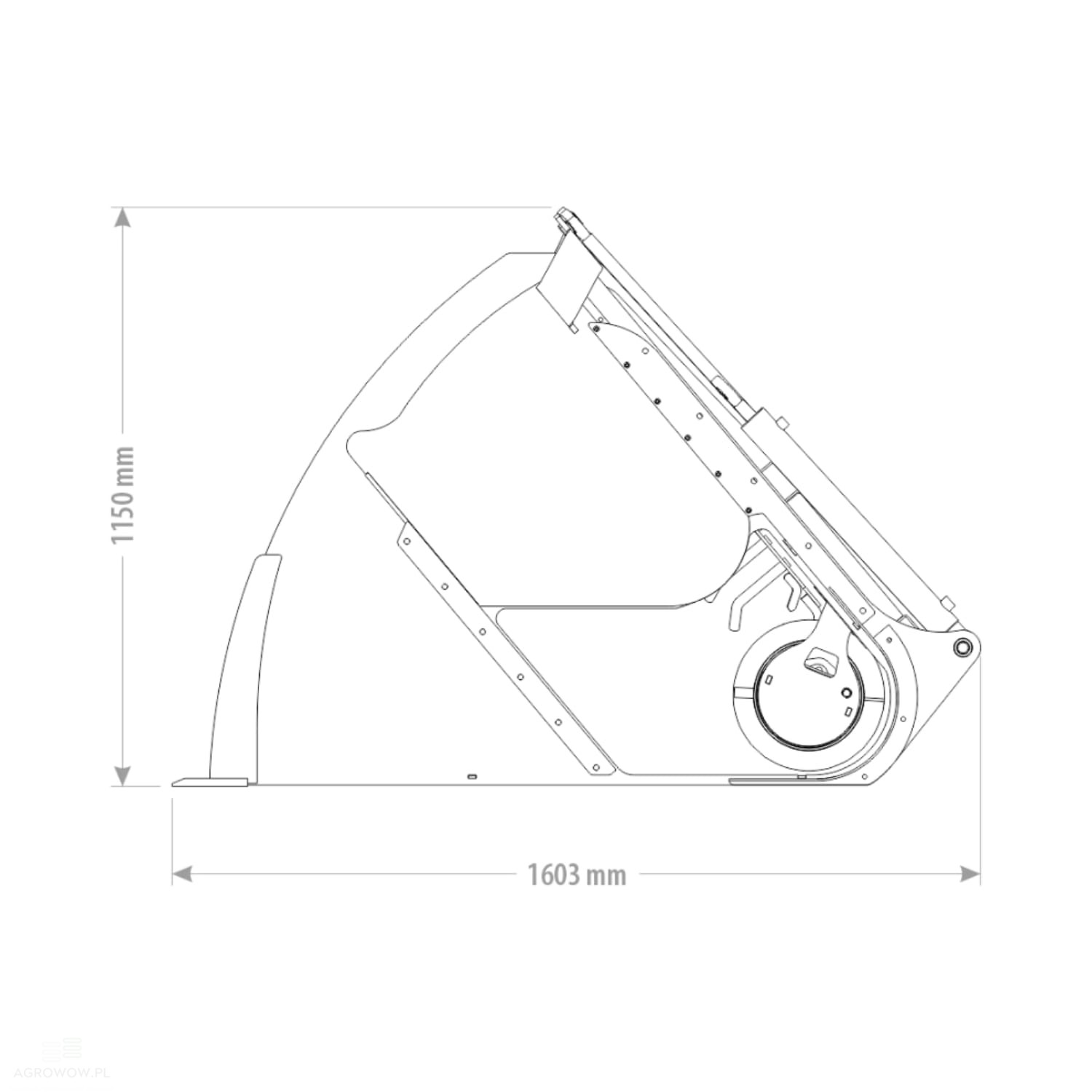

- Length: 1603 mm

- Height: 1150 mm

- Capacity: 1.27 m

- Weight: 519 kg

- Side wall thickness: 6 mm

- Main shell thickness: 5 mm

- HB500 cutting edge: 100x16 mm

- Dual-side discharge: Capable of feeding to both left and right sides

- Agitators: Internal anti-bridging agitators to prevent feed blockage

- Recommended oil flow: 45 L/min

- Hydraulic motors: 2

Optional Equipment (Extra Charge):

- VMP Relief Valve

The VMP relief valve is an important protective component in hydraulic systems, responsible for maintaining a safe operating pressure level. In the event that the preset pressure value is exceeded, the valve automatically diverts excess working fluid from the system, preventing overloads and protecting installation components from damage. Thanks to its adjustability, the VMP allows pressure parameters to be precisely adapted to the specifics of a particular device or application, which enhances the operational stability and safety of the entire hydraulic system.

- Additional Motor

Recommended for feed with grass and straw mixtures. The application of an additional hydraulic motor significantly increases the efficiency and durability of devices operating in conditions that require higher torque—such as dispensing feed containing grass, straw, or other fibrous materials. The auxiliary motor allows for a better distribution of drive forces, which translates into smoother and more uniform operation of the entire system. This solution increases productivity, minimizes the risk of overloads, and supports the long-term durability and reliability of the system, particularly during intensive use.

Detailed Description:

• The 1400 mm wide volumetric screw feeder bucket is a technologically advanced tool designed for efficient and precise feed dispensing on modern agricultural farms.

• The attachment performs excellently in the daily management of pigs, dairy cattle, and poultry, enabling rapid and uniform dosing of bulk forage, ground feed, grains, and loose mixtures.

• With a working capacity of 1.27 m³ and dimensions of 1603 mm in length and 1150 mm in height, the bucket ensures smooth filling and efficient feeding of large livestock groups while maintaining exceptional maneuverability—even within tight or restricted spaces.

• The built-in auger mechanism enables feed dosing to either the left or right side, which significantly streamlines operations and shortens handling times while ensuring high precision in material distribution.

• The integrated agitators effectively eliminate the risk of feed clogging or bridging, which is particularly crucial when utilizing moist or fibrous components.

• The entire structure is built from durable steel—featuring 6 mm thick side walls and a 5 mm main shell—guaranteeing high resistance to wear and mechanical damage, even under intensive use in challenging farming conditions.

• The lower edge of the bucket is additionally secured with a cutting edge made of wear-resistant HB500 steel (100x16 mm), which facilitates material scooping from the ground and protects the structural elements from excessive abrasion.

• A recommended hydraulic oil flow of 45 L/min ensures smooth, dependable operation of the auger screw mechanism and allows for accurate control over the livestock feeding process while maintaining low energy consumption.

• The 1400 mm wide model successfully works with tractors equipped with front loaders and auxiliary hydraulics from brands such as John Deere, Case IH, New Holland, Kubota, Massey Ferguson, Zetor, or Ursus. Additionally, the device can be mounted on telehandlers and compact loaders, making it an incredibly versatile tool for any farm setup.

• The 1400 mm screw feeder bucket is an indispensable asset for daily livestock feeding operations—a solution that seamlessly combines reliability, time savings, and exceptional functionality.
