Kołaszewski volumetric screw feeder bucket 1.6 x 1.15 m

- Manufacturer: Kołaszewski

- Catalogue number: FBSV160

- Manufacturer's name: Volumetric screw feeder bucket

- Width: 1600 mm

- Length: 1603 mm: 1603 mm

- Height: 1150 mm

- Capacity: 1.46 m³

- Weight: 568 kg

- ok: 6B mm

- Side wall thickness: 6 mm

- HB500 cutting edge: 100x16 mm

- Agitators: Internal anti-bridging agitators to prevent feed blockage

- Recommended oil flow: 45 L/min

- Hydraulic motors: 2

Optional Equipment (Extra Charge):

-VMP Relief Valve

The VMP relief valve serves a protective function in hydraulic systems by controlling the operating pressure level. In situations where the specified pressure threshold is exceeded, this valve automatically diverts excess hydraulic fluid, thereby protecting the system from overload and potential damage to installation components. The adjustable nature of the valve allows for the precise adaptation of its operating parameters to the specifics of a particular machine or application, resulting in smooth, reliable, and safe operation of the entire hydraulic system.

- Additional Motor

Recommended for feed with grass and straw mixtures. An additional hydraulic motor is utilized in situations requiring increased torque, especially when dispensing feed containing grass, straw, or other high-fiber materials. Its installation assists the primary drive by evenly distributing loads and ensuring more stable, efficient device performance. This solution improves operational effectiveness, increases overload resistance, and extends the lifespan of the entire system, which is particularly essential during intensive, daily use.

Detailed Description:

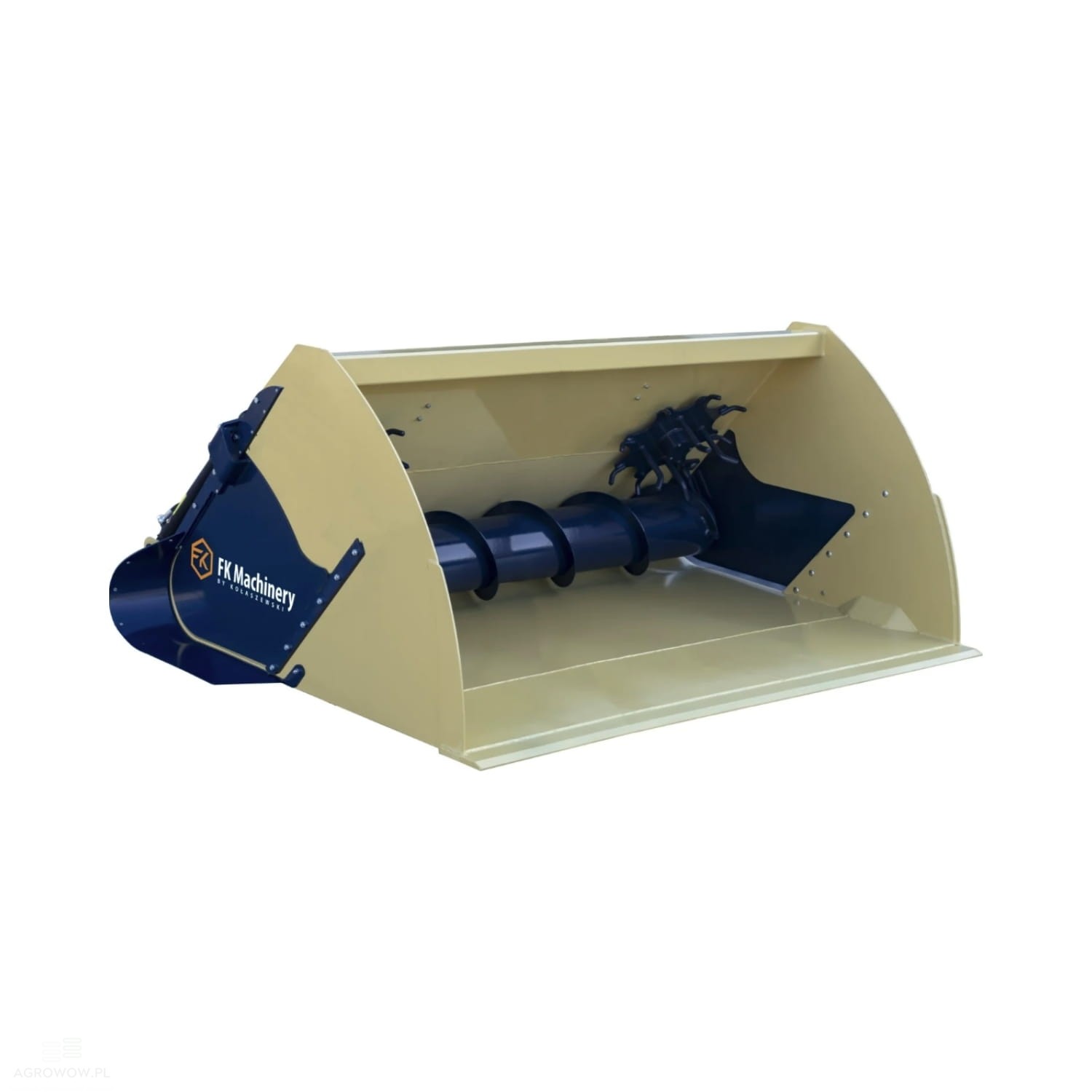

• The 1600 mm wide volumetric screw feeder bucket is an efficient and solidly constructed attachment designed for the precise dispensing of feed on livestock farms, where reliability, operator comfort, and high efficiency in daily animal care are paramount.

• It is perfectly suited for feeding dairy cattle, pigs, and poultry, enabling uniform and rapid distribution of loose feed, grains, meals, and volumetric mixtures, including those containing fibrous materials.

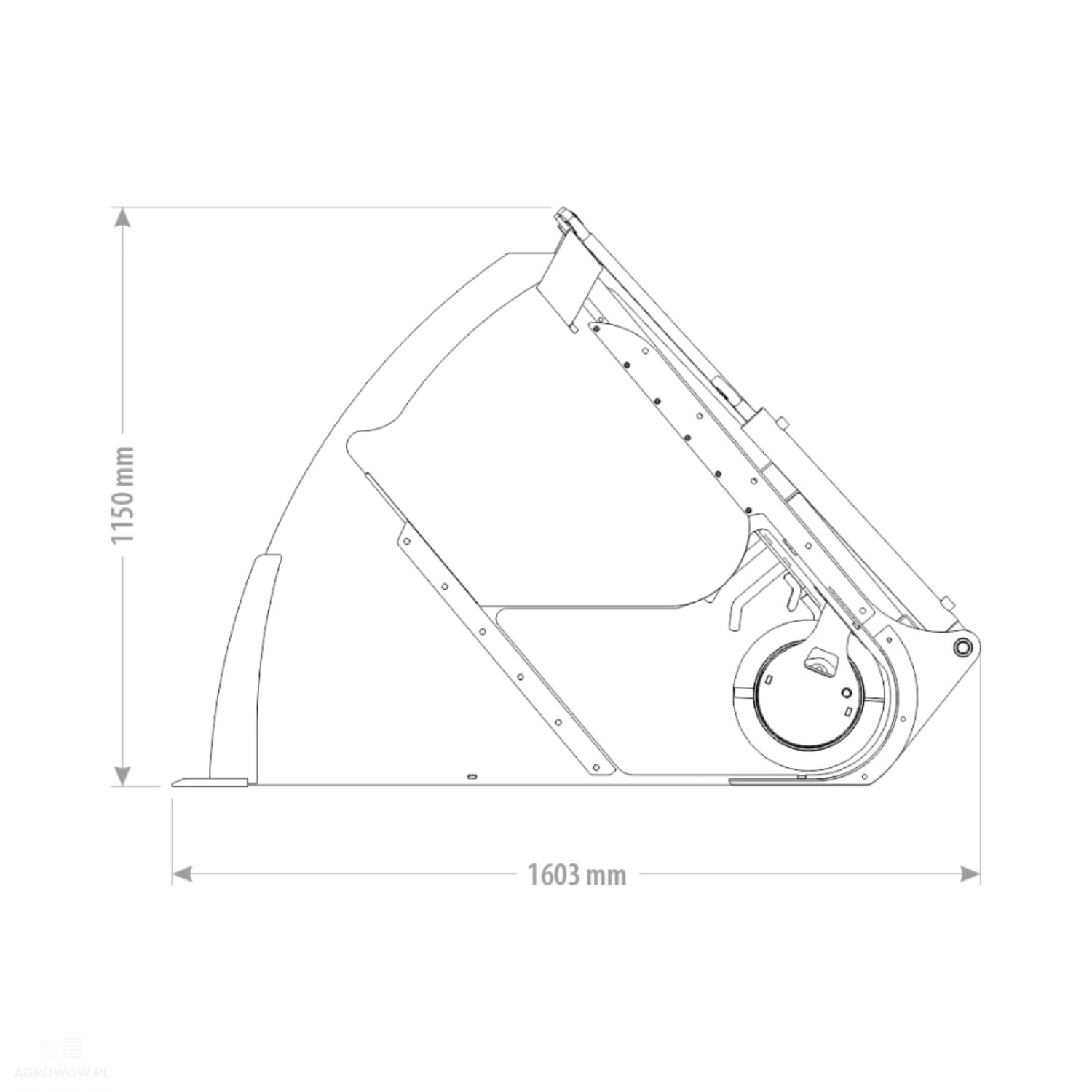

• Thanks to its optimized capacity of 1.46 m³ and dimensions of 1603 mm in length and 1150 mm in height, the attachment allows for a larger volume of feed to be distributed in a single fill while maintaining complete maneuverability—which is particularly vital in narrow barns and tight feed alleys.

• The auger mechanism built into the bucket enables feed dosing to both sides, which significantly streamlines the feeding process, saving operator time and reducing machine fuel consumption.

• Inside the hopper, special agitators are installed to eliminate feed bridging, particularly when handling more demanding components with a moist or sticky consistency.

• The rugged steel construction—featuring 6 mm thick side walls and a 5 mm main shell—ensures high resistance to wear and mechanical damage, even under conditions of intensive, daily operation.

• The lower section of the bucket is reinforced with a cutting edge made of wear-resistant HB500 steel (100x16 mm), which allows for efficient material scooping and protects the structure from abrasion and impacts during on-site operation.

• A recommended hydraulic oil flow of 45 L/min enables smooth operation of the auger screw mechanism, while ensuring precise control over the feed dispensing speed and low energy consumption.

• The 1600 mm version of the bucket is fully compatible with most tractors equipped with front loaders and auxiliary hydraulics—including brands such as John Deere, New Holland, Case IH, Massey Ferguson, Zetor, Kubota, and Ursus.

• It can also be mounted on telehandlers and compact wheel loaders, significantly expanding its range of applications on the farm.

• The 1600 mm screw feeder bucket is a modern, universal, and economical tool that effectively supports the livestock feeding routine, saving time, resources, and energy while boosting daily operational productivity.
