Kołaszewski volumetric screw feeder bucket 1.8 x 1.15 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: FBSV180

- Manufacturer's name: Volumetric screw feeder bucket

- Width: 1800 mm

- Length: 1603 mm

- Height: 1150 mm

- Capacity: 1.64 m³

- Weight: 614 kg

- Side wall thickness: 6 mm

- Main shell thickness: 5 mm

- HB500 cutting edge: 100x16 mm

- Dual-side discharge: Capable of feeding to both left and right sides

- Agitators: Internal anti-bridging agitators to prevent feed blockage

- Recommended oil flow: 45 L/min

- Hydraulic motors: 2

Optional Equipment (Extra Charge):

- VMP Relief Valve

The VMP-type relief valve is an essential safety component in hydraulic systems, designed to maintain operating pressure at a safe level. In the event that system pressure exceeds the maximum allowable threshold, the valve automatically diverts excess fluid, preventing damage and breakdowns of installation components. Thanks to its adjustability, the VMP valve allows its operation to be fine-tuned to a specific machine, which increases the overall reliability and operational stability of the entire hydraulic system.

- Additional Motor

Recommended for feed with grass and straw mixtures. The optional hydraulic motor serves as an excellent supplement to the main drive system in situations requiring higher torque—such as when dispensing feed that contains fibrous ingredients like grass or straw. Its application results in a better distribution of drive forces, smoother action, and increased efficiency of the entire system. The additional motor helps prevent overloads, extends the service life of the attachment, and ensures dependable operation even during intensive, daily use.

Detailed Description:

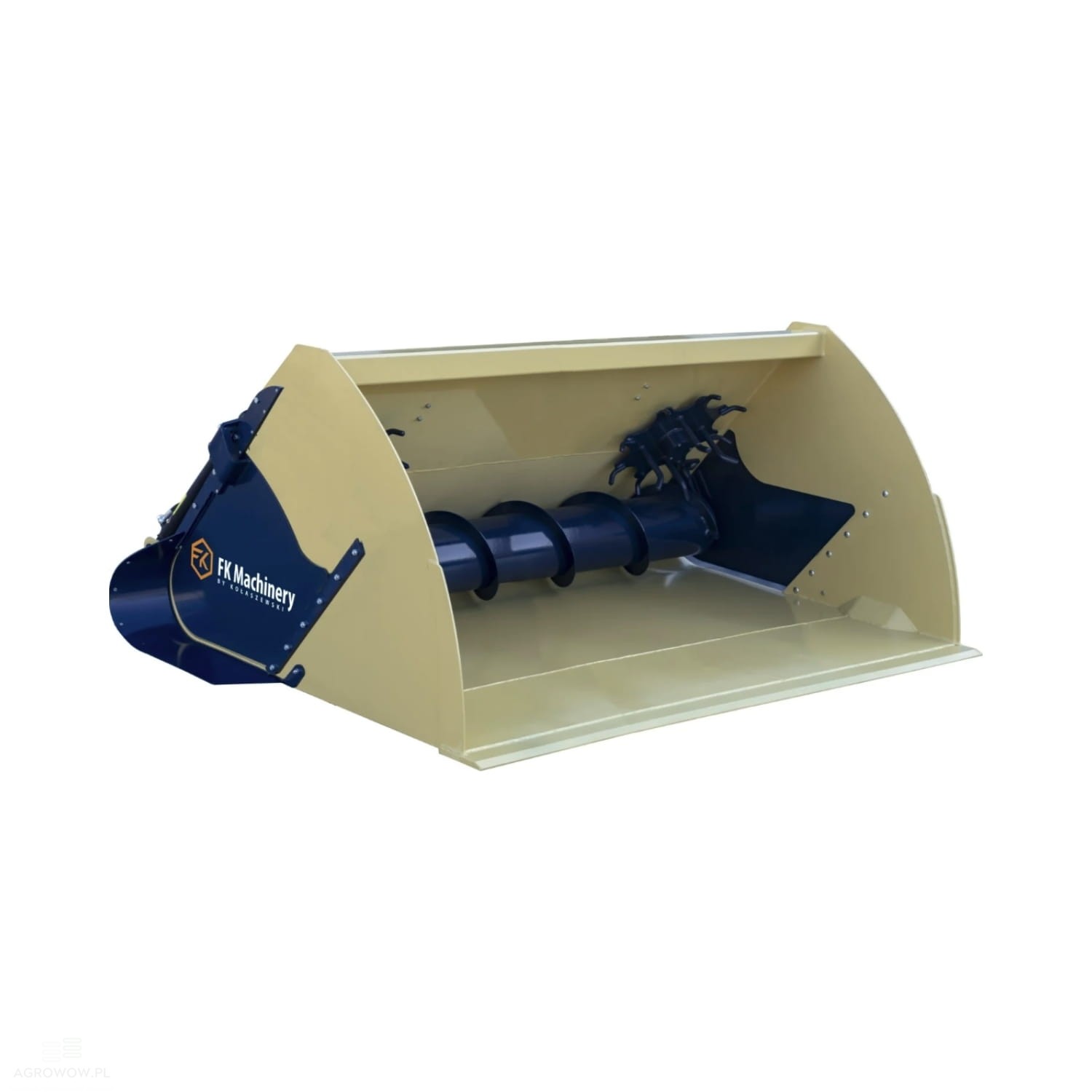

• The 1800 mm wide volumetric screw feeder bucket is a technologically advanced tool designed for the efficient and reliable dispensing of feed on modern livestock farms, where speed, precision, and attachment durability are paramount.

• The device is perfectly suited for the daily management of pigs, dairy cattle, and poultry, enabling uniform dosing of bulk forage, ground feed, grains, and mixtures containing fibrous components that are otherwise more challenging to process, such as grass or straw.

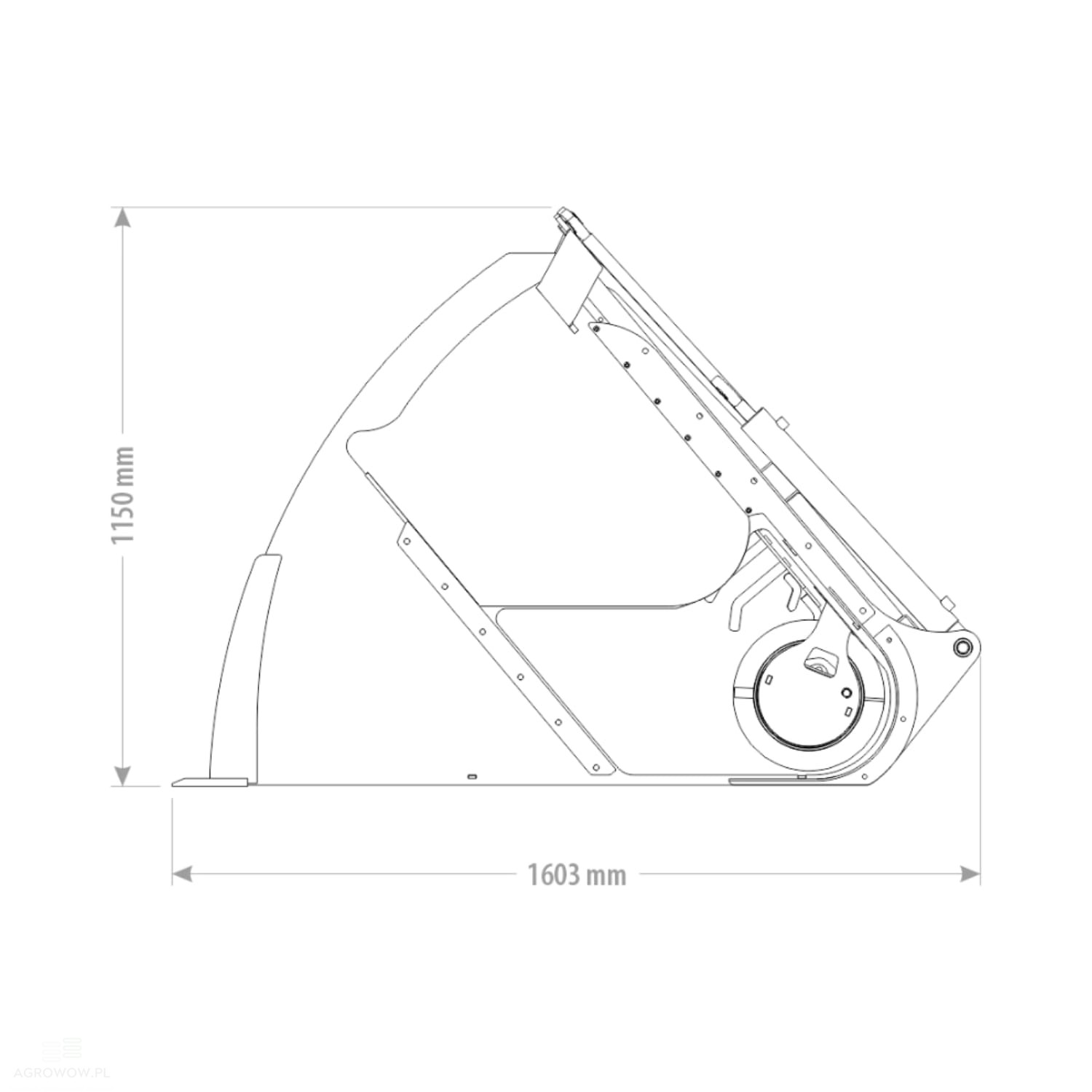

• With a working capacity of 1.64 m³ and dimensions of 1603 mm in length and 1150 mm in height, this bucket allows for the distribution of large volumes of feed from a single fill while ensuring complete control over the attachment, even within confined working spaces.

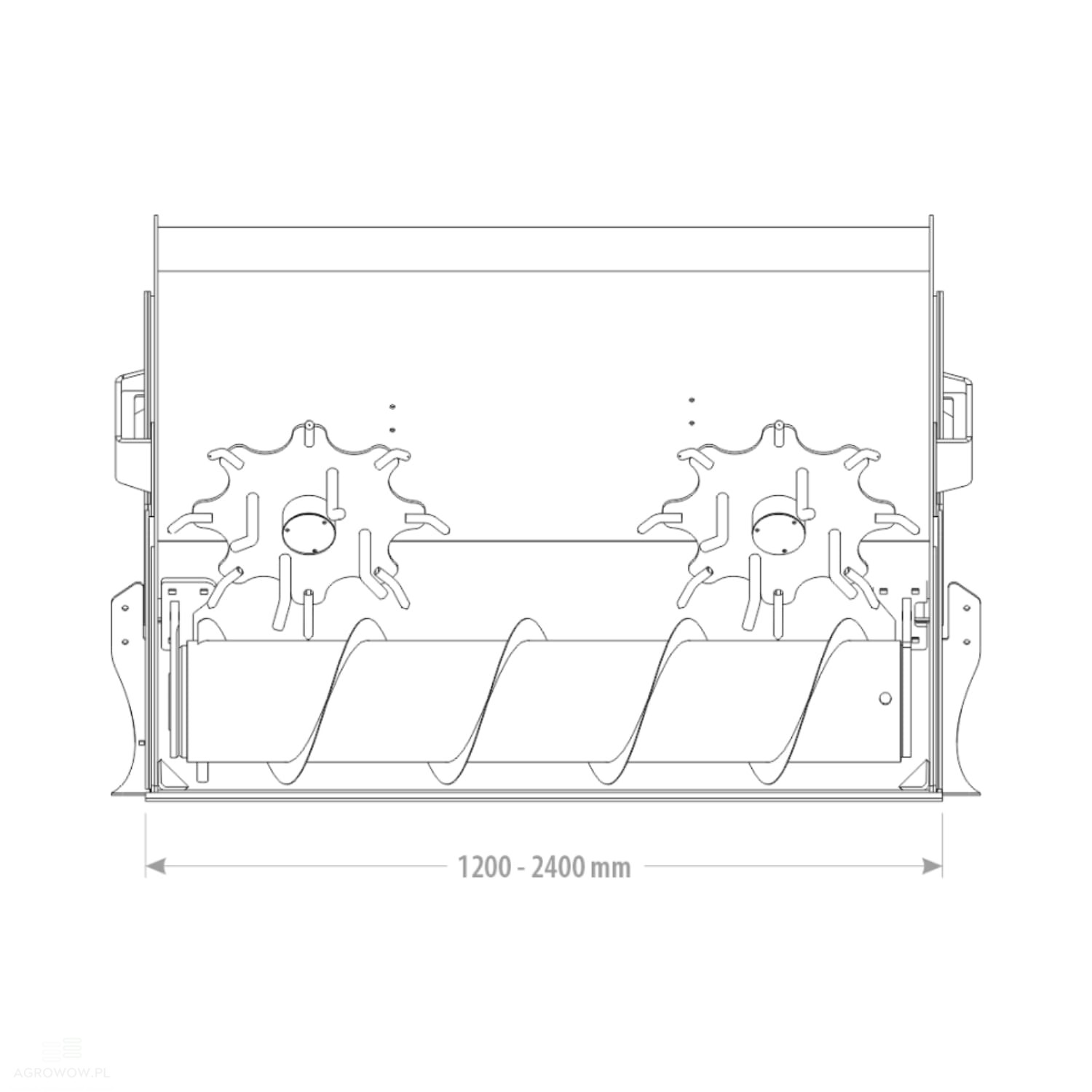

• An integrated auger mechanism powered by two hydraulic motors allows for rapid and even feed distribution to both sides, which significantly reduces labor time and improves the overall efficiency of the feeding routine.

• Furthermore, the built-in agitators effectively counteract any bridging of material inside the hopper, ensuring a smooth feed flow and eliminating the risk of clogs, even when handling forage with high moisture content.

• The rugged steel construction—featuring 6 mm thick side walls and a 5 mm main shell—provides long-term resistance to intensive use, mechanical impacts, and abrasion.

• A cutting edge made of wear-resistant HB500 steel (100x16 mm) positioned on the bottom lip further reinforces the structure, enabling efficient material scooping from the ground while protecting the bucket from operational wear and damage.

• A recommended hydraulic oil flow of 45 L/min guarantees smooth operation of the auger screw mechanism and full control over dosing, while optimizing energy consumption.

• The 1800 mm wide bucket is compatible with the majority of tractors equipped with front loaders and auxiliary hydraulics—including brands such as John Deere, Case IH, New Holland, Zetor, Kubota, Ursus, and Massey Ferguson—and can also be mounted on telehandlers and compact loaders.

• This model represents an excellent choice for farms seeking reliable, powerful, and functional equipment for heavy-duty applications that streamlines the animal feeding process and enhances daily operational efficiency.
