kolaszewski-volumetric-screw-feeder-bucket-2-0-x-1-15-m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Skontaktuj się z naszym inżynierem sprzedaży!

Adres e-mail: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have..

- Manufacturer: Kołaszewski

- Catalogue number: KFBSV200

- Manufacturer's name: Volumetric screw feeder bucket

- Width: 2000 mm

- Length: 1603 mm

- Height: 1150 mm

- Capacity: 1.82 m³

- Waga: 655 kg

- Side wall thickness: 6 mm

- Main shell thickness: 5 mm

- HB500 cutting edge: 100x16 mm

- Dual-side discharge: Capable of feeding to both left and right sides

- Agitators: Internal anti-bridging agitators to prevent feed blockage

- Recommended oil flow: 45 L/min

- Hydraulic motors: 2

Optional Equipment (Extra Charge):

- VMP Relief Valv

The VMP relief valve is a crucial protective component in hydraulic systems, with the main function of maintaining pressure at a safe operating level. When the set value is exceeded, the valve opens, discharging excess hydraulic fluid from the system. This prevents overloads and protects all installation elements from potential damage. The ability to adjust the valve settings allows its operation to be precisely tailored to the specifics of a given system, significantly enhancing the stability and safety of the entire system's operation.

- Additional Motor

Recommended for feed with grass and straw mixtures. An additional hydraulic motor provides effective support for the drive system, particularly recommended when working with feed containing grass, straw, or other high-fiber components. Its application increases the available torque, enables smoother mechanism operation, and improves the overall efficiency of the device. Thanks to a better distribution of the drive load, the additional motor reduces the risk of overloads, supports operational continuity, and extends the lifespan of the entire system—even under intensive use in demanding conditions.

Detailed Description:

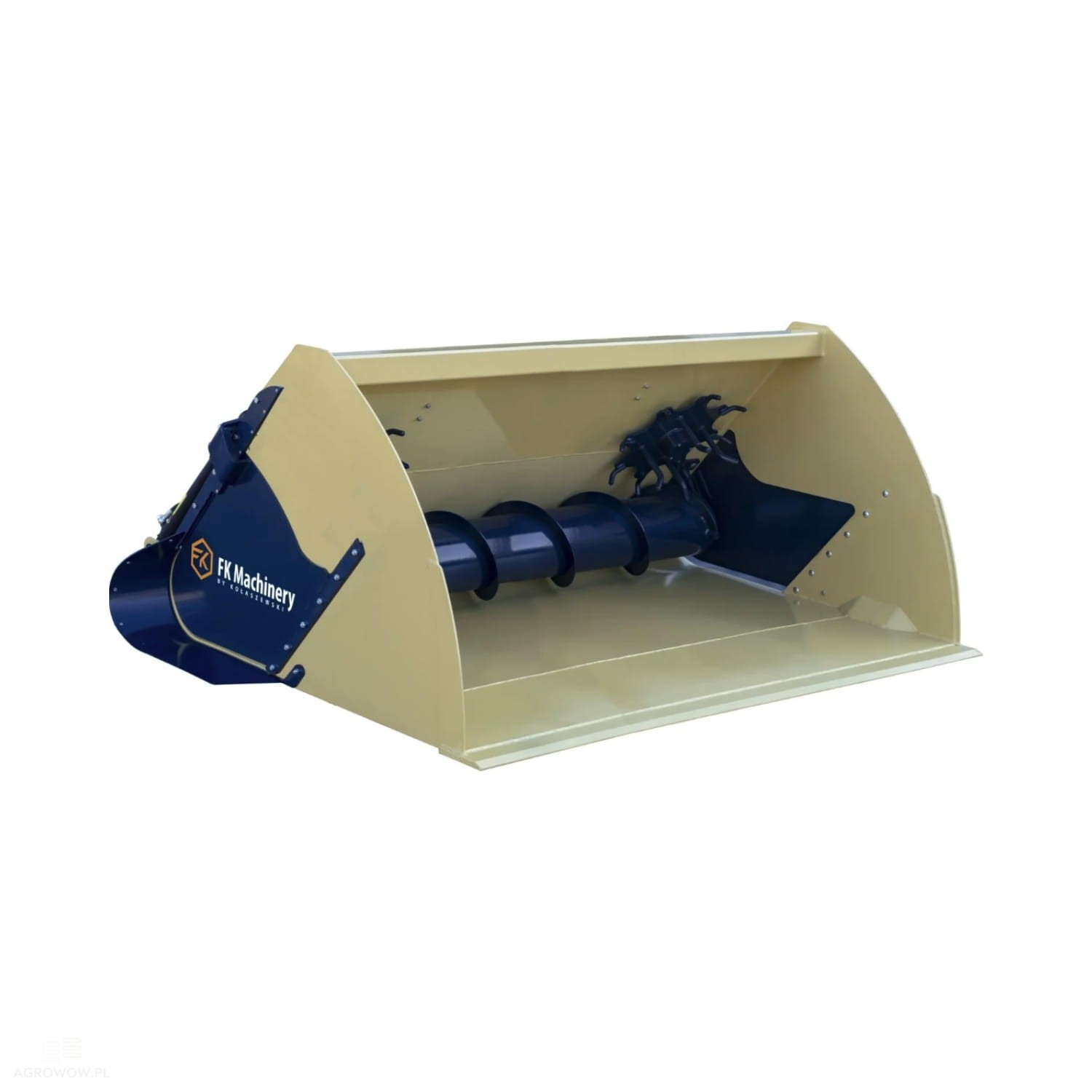

• The 2000 mm wide volumetric screw feeder bucket is a modern and highly efficient solution designed for intensive feed dispensing on large livestock farms.

• Its structure has been engineered for high reliability, operational precision, and resistance to harsh operating conditions.

• The attachment performs excellently in feeding cattle, pigs, and poultry, enabling fast and uniform distribution of bulk forage, meals, grains, and mixtures containing fibrous ingredients such as grass or straw.

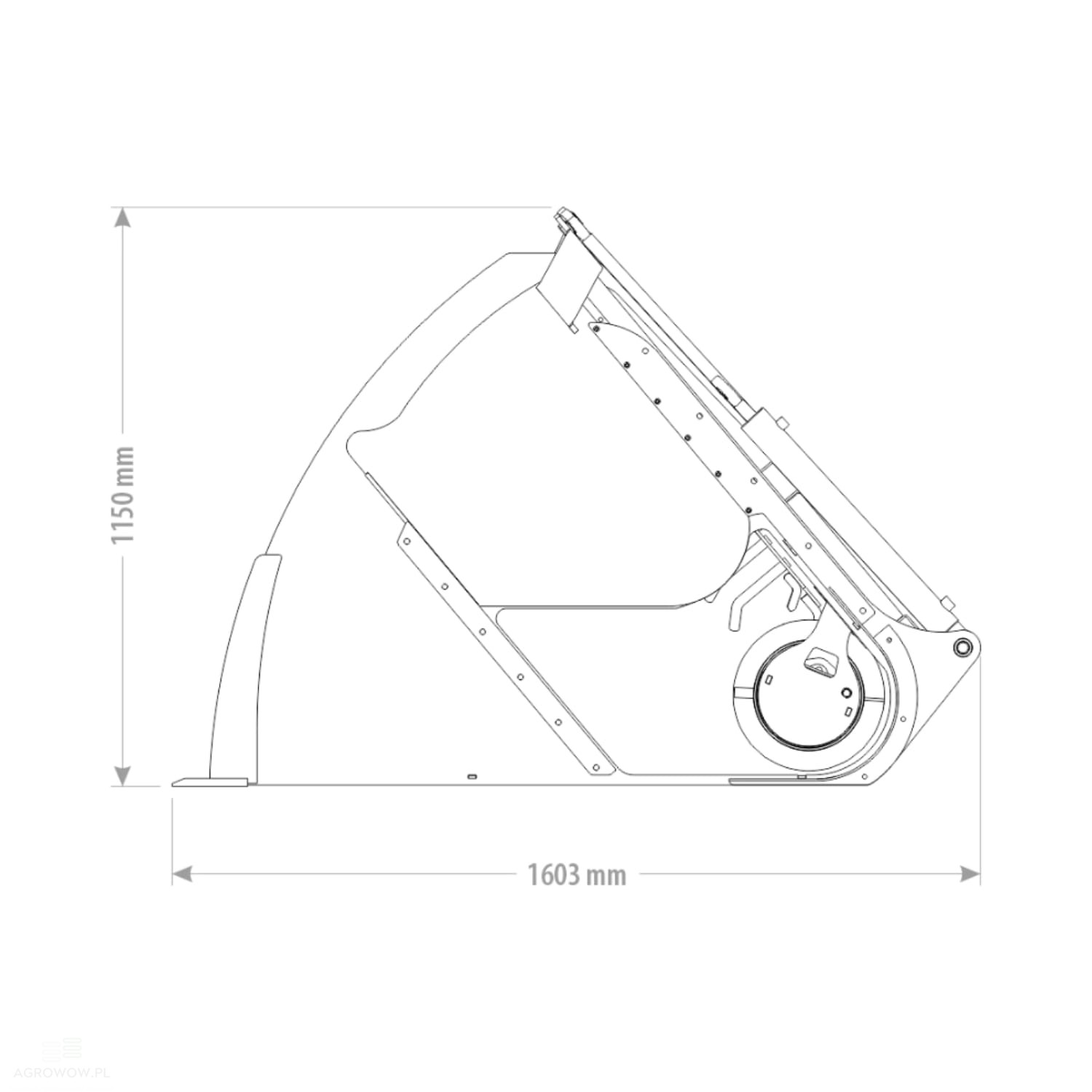

• With a capacity of 1.82 m³ and dimensions of 1603 mm in length and 1150 mm in height, this model allows large quantities of feed to be delivered in a single fill while maintaining ease of operation and maneuvering, even within confined working spaces.

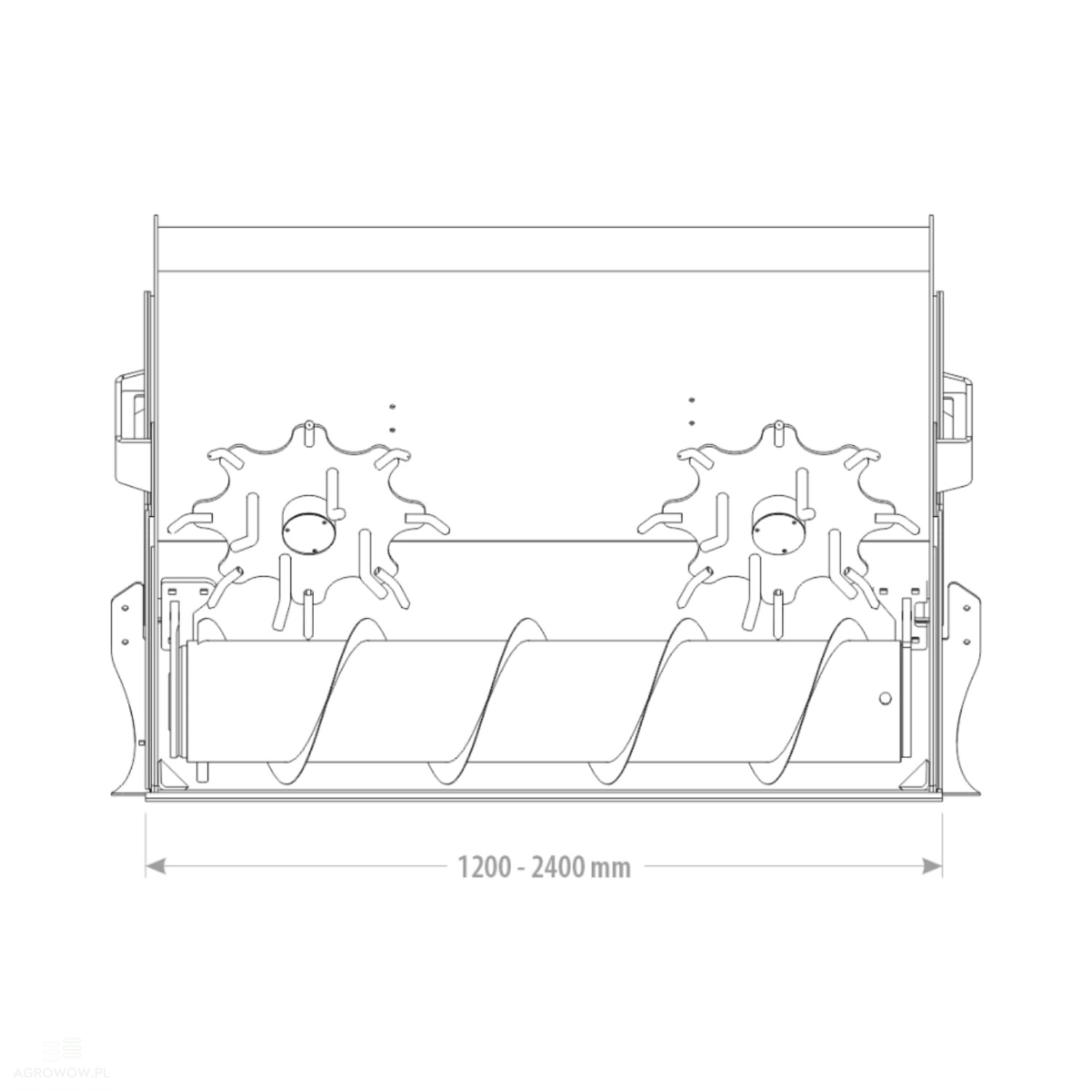

• The dual-motor auger mechanism enables feeding to both sides, which significantly increases work efficiency and shortens the time required to manage the herd, guaranteeing uniform feed distribution along the feed alleys.

• Integrated agitators effectively prevent material from bridging inside the hopper, ensuring a continuous and uninterrupted flow even with more demanding nutritional components.

• The bucket's construction is based on durable materials—6 mm thick side walls and a 5 mm main shell guarantee resistance to mechanical damage and long-term operation without losing functionality.

• The lower edge of the bucket is reinforced with a cutting edge made of wear-resistant HB500 steel (100x16 mm), which protects against wear and ensures effective feed scooping from the ground, even under more challenging working conditions.

  An optimal hydraulic oil flow of 45 L/min allows for efficient and economical operation of the auger screw, while guaranteeing precise material dosing with minimal energy consumption.

• The 2000 mm model is compatible with a wide range of tractors equipped with front loaders and auxiliary hydraulics—including brands such as John Deere, New Holland, Zetor, Case IH, Ursus, Massey Ferguson, and Kubota—as well as telehandlers and compact loaders.

  It is the ideal solution for farms geared toward intensive livestock production that require a dependable tool for efficient, fast, and trouble-free feed dispensing every single day.
