Kołaszewski volumetric screw feeder bucket 2.2 x 1.15 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

Numer telefonu: +48 880 261 210 | +48 504 947 222

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KFBSV220

- Manufacturer's name: Volumetric screw feeder bucket

- Width: 2200 mm

- Length: 1603 mm

- Height: 1150 mm

- Capacity: 2.0 m³

- Weight: 701 kg

- Side wall thickness: 6 mm

- Main shell thickness: 5 mm

- HB500 cutting edge: 100x16 mm

- Dual-side discharge: Capable of feeding to both left and right sides

- Agitators: Internal anti-bridging agitators to prevent feed blockage

- Recommended oil flow: 45 L/min

- Hydraulic motors: 2

Optional Equipment (Extra Charge):

- VMP Relief Valve

The VMP-type relief valve is a key protective component in hydraulic systems, responsible for maintaining a safe operating pressure level. When the system pressure exceeds a specific threshold limit, the valve opens, allowing excess working fluid to discharge. This protects individual system components from overload and potential damage. The VMP valve features an adjustment function, allowing its operation to be tailored to the specific application—ensuring stability, reliability, and protection for the entire hydraulic installation.

- Additional Motor

Recommended for feed with grass and straw mixtures. An additional hydraulic motor is a significant addition to the primary drive system, particularly in situations where increased rotational force is required—such as when dispensing feed containing fibrous ingredients like grass or straw. Installing an additional motor allows for a more uniform load distribution, improves operational smoothness and efficiency, and reduces the risk of system overloads. This solution greatly enhances the durability and reliability of the device, especially during intensive use in demanding livestock farming environments.

Detailed Description:

• The 2200 mm wide volumetric screw feeder bucket is a high-performance and reliable tool designed for large-scale agricultural farms where fast, uniform, and trouble-free feed dispensing is crucial.

• Its structure is engineered for intensive, daily operation under demanding working conditions

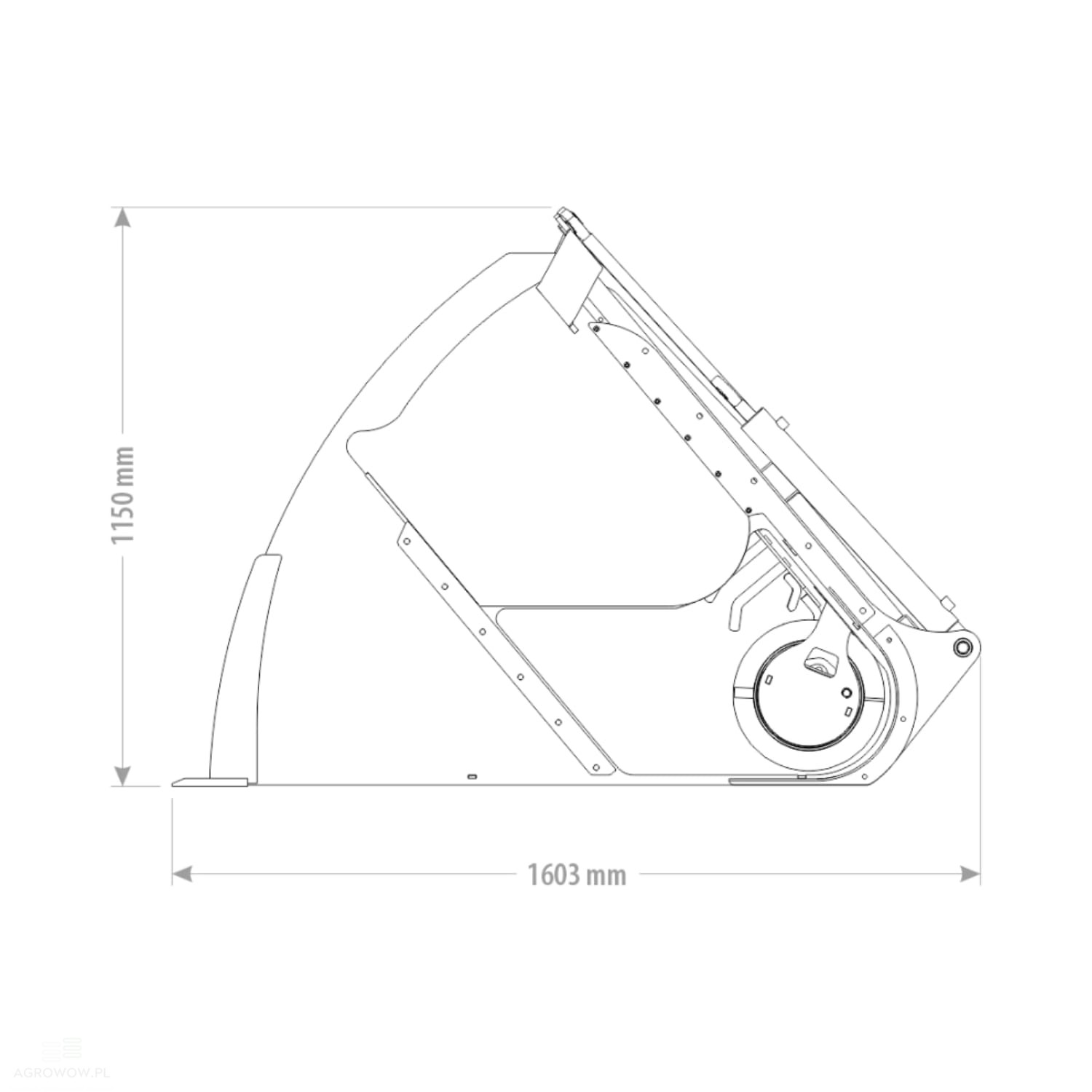

• With an impressive working capacity of up to 2.0 m³ and dimensions of 1603 mm in length and 1150 mm in height, the bucket allows for the distribution of a large volume of feed from a single fill.

• This translates into significant savings in both time and energy when managing large herds of cattle, pigs, or poultry.

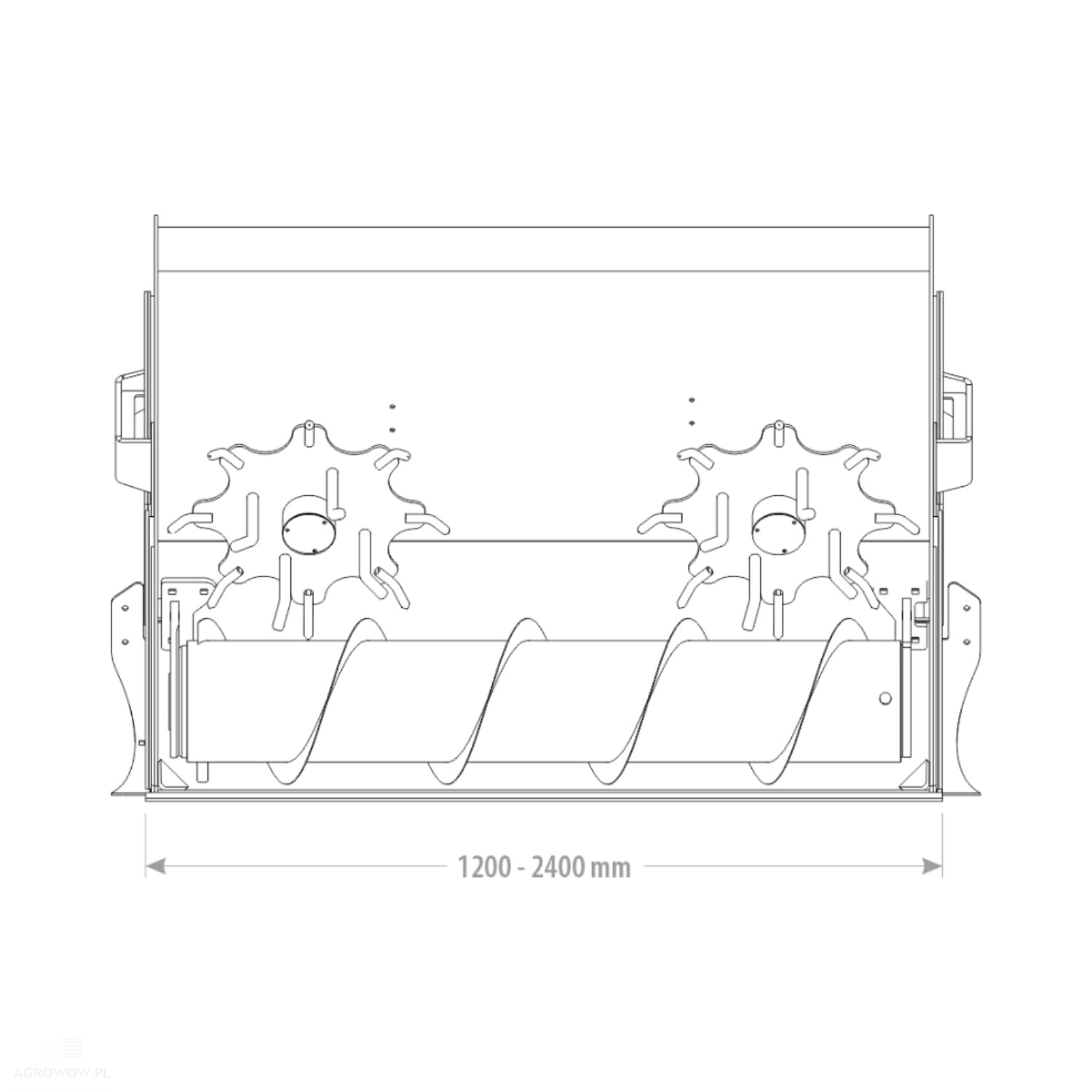

• Equipped with a dual-motor auger mechanism, the bucket enables feed distribution to both the left and right sides, which greatly accelerates the feeding routine and ensures an even layout of material along the entire feeding line.

• Additionally, the specially designed agitators effectively prevent feed from clumping and bridging inside the hopper—even when handling forage containing grass, straw, or other fibrous components—ensuring operational smoothness and a continuous material flow.

• The rugged steel construction—featuring 6 mm thick side walls and a 5 mm main shell—provides high resistance to mechanical damage and ensures the longevity of the attachment, even under intensive use with feed of varied structures.

• The lower edge is fitted with a cutting edge made of wear-resistant HB500 steel (100x16 mm), which facilitates efficient material scooping from the ground while protecting the bucket from abrasion and operational wear.

• A recommended oil flow of 45 L/min allows for the smooth and efficient operation of the auger system, guaranteeing low energy consumption and precise control over the feed dispensing process.

• The feeder bucket is fully compatible with most tractors equipped with front loaders and auxiliary hydraulics—such as John Deere, Zetor, New Holland, Case IH, Massey Ferguson, Kubota, or Ursus—and can also be utilized with telehandlers and compact wheel loaders.

• The 2200 mm model is the definitive solution for professional farms that require dependable equipment for intensive livestock feeding, focusing heavily on functionality, durability, and top-tier operational efficiency.
