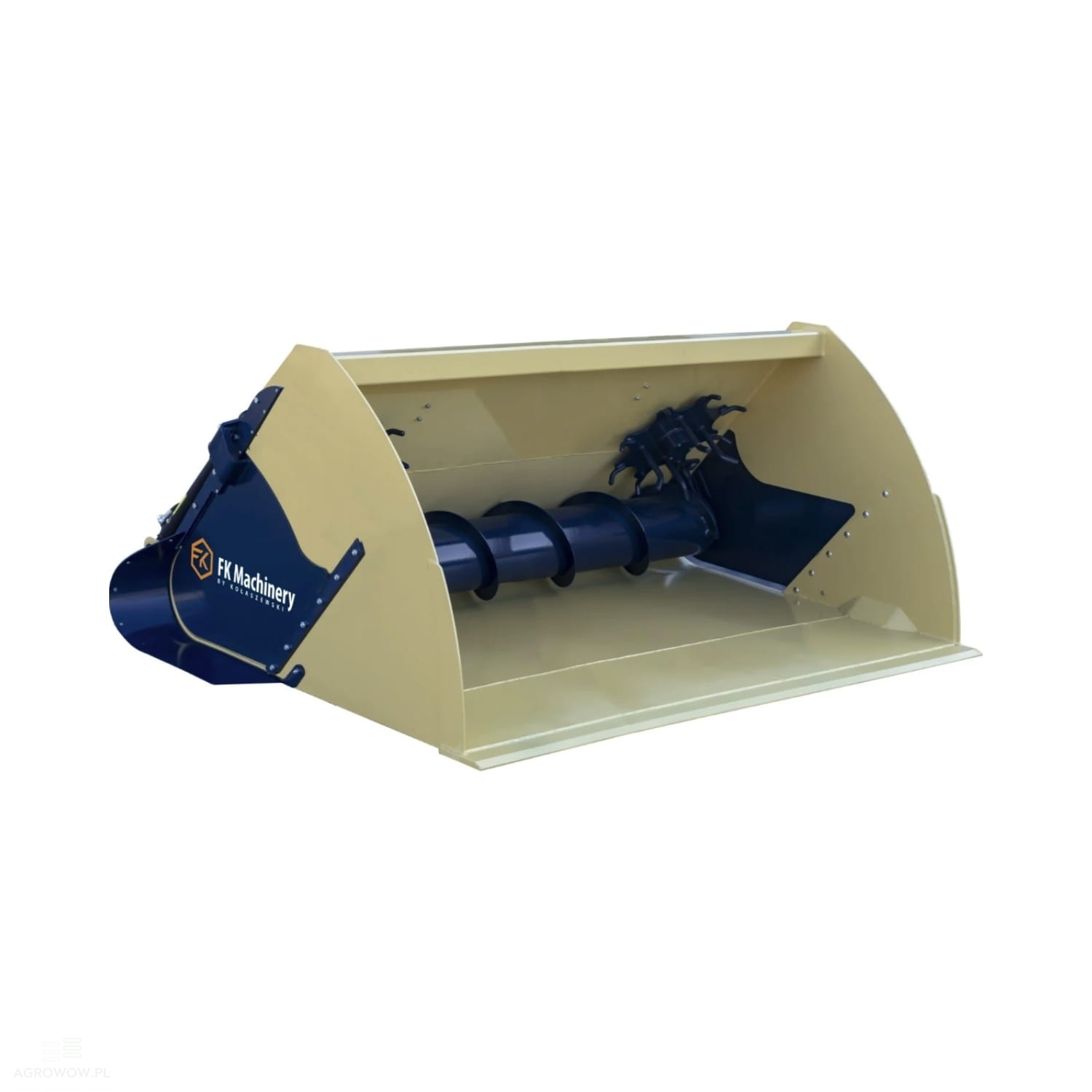

Kołaszewski volumetric screw feeder bucket 2.4 x 1.15 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KFBSV240

- Manufacturer's name: Volumetric screw feeder bucket

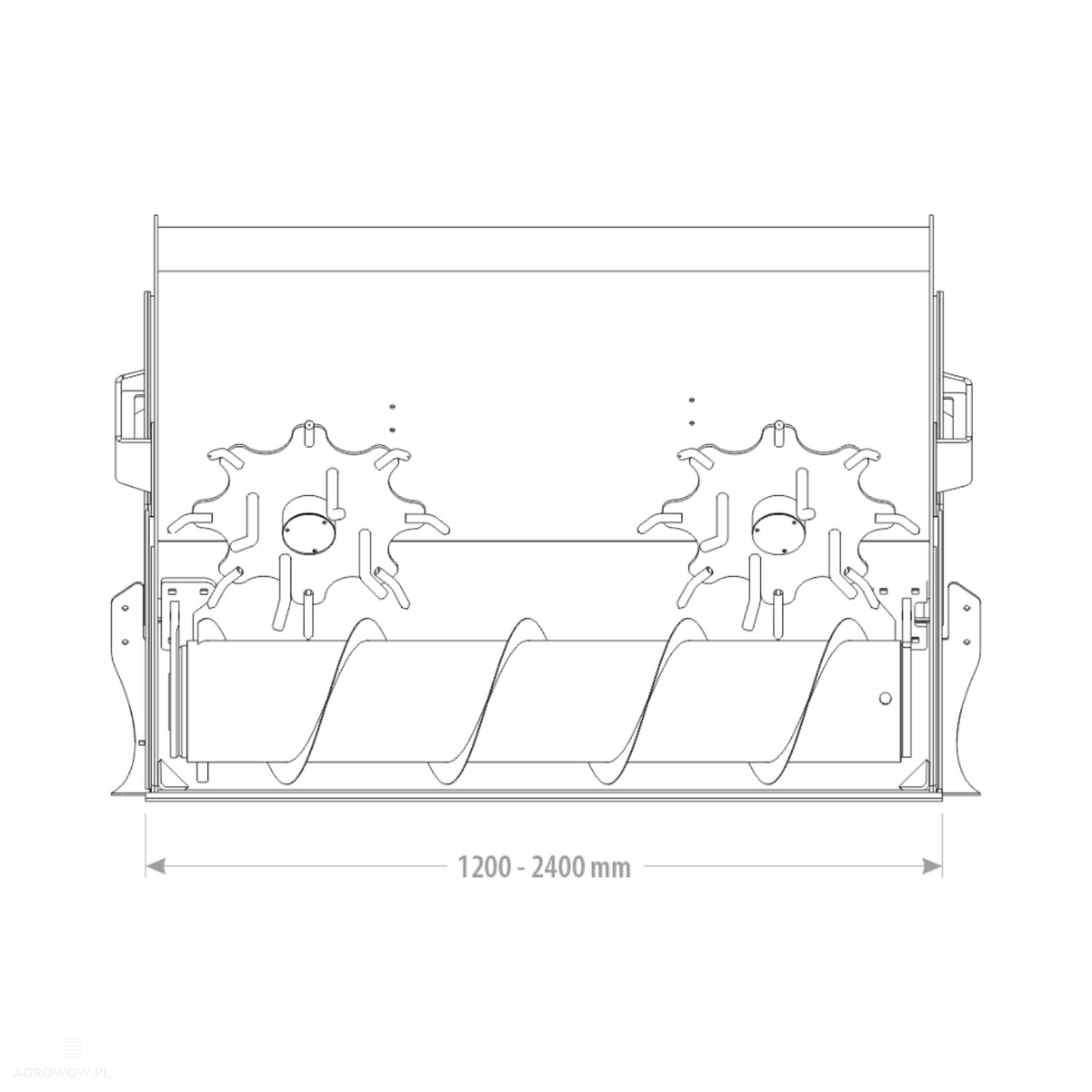

- Width: 2400 mm

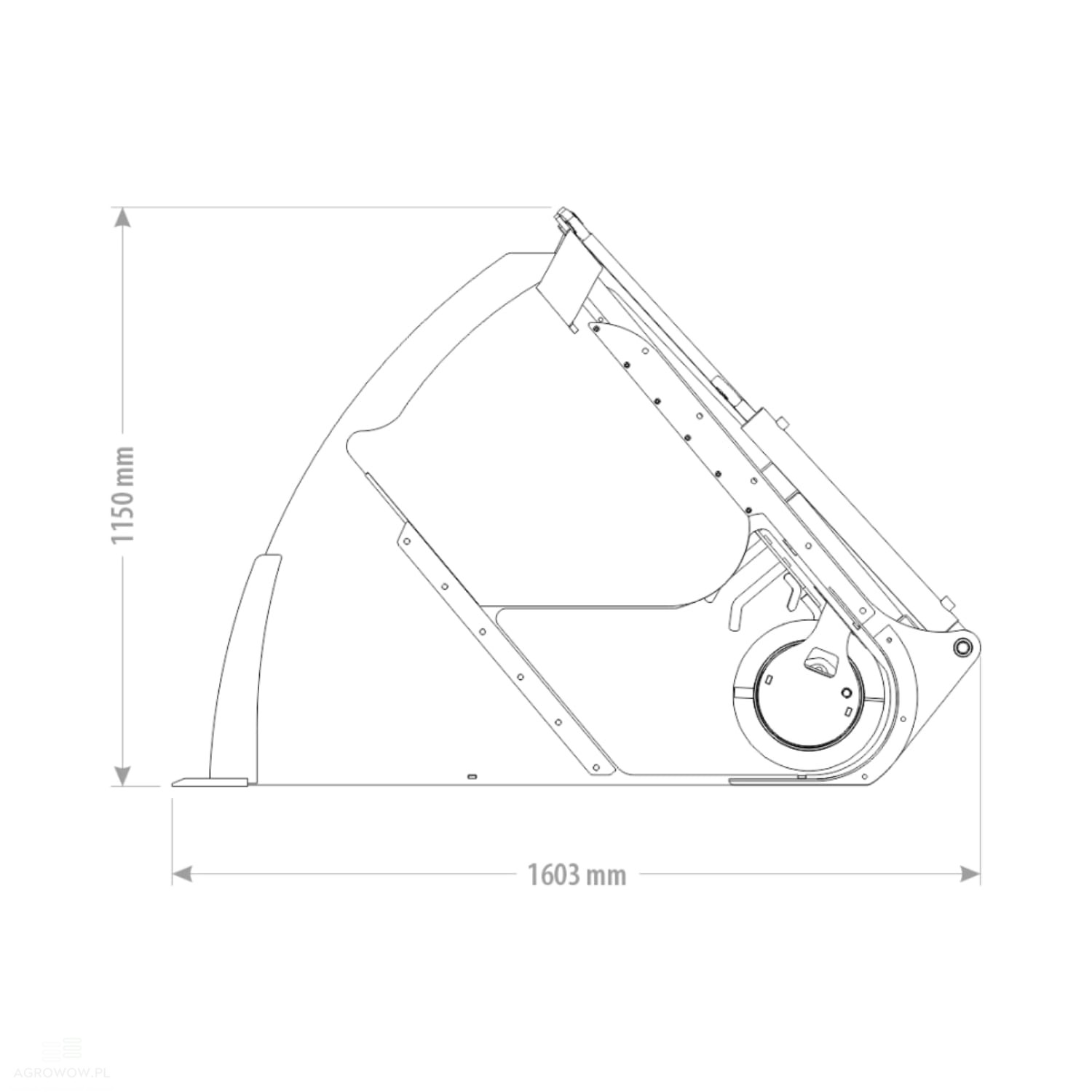

- Length: 1603 mm

- Height: 1150 mm

- Capacity: 2.18 m³

- Weight: 745 kg

- Side wall thickness: 6 mm

- Main shell thickness: 5 mm

- HB500 cutting edge: 100x16 mm

- Dual-side discharge: Capable of feeding to both left and right sides

- Agitators: Internal anti-bridging agitators to prevent feed blockage

- Recommended oil flow: 45 L/min

- Hydraulic motors: 2

Optional Equipment (Extra Charge):

- VMP Relief Valve

The VMP relief valve plays a crucial role in protecting hydraulic systems, responsible for maintaining pressure at a level that is safe for the circuit. When the pressure exceeds a specified limit, the valve automatically opens, discharging excess working fluid. This protects installation components from overload and potential damage. Its adjustable design allows for precise tuning to a specific application, resulting in stable, safe, and reliable operation of the entire hydraulic system.

- Additional Motor

Recommended for feed with grass and straw mixtures. The optional hydraulic motor is an efficient expansion of the drive system, particularly recommended when dispensing feed containing grass, straw, or other high-fiber materials. Its presence increases the available torque, enabling smoother and more efficient device operation. The additional motor contributes to a uniform load distribution, reduces the risk of overloads, and supports the durability and reliability of the system under intensive, daily use.

Detailed Description:

• The 2400 mm wide volumetric screw feeder bucket is an exceptionally high-capacity, professional attachment designed for intensive operation on large-scale agricultural farms where efficiency, reliability, and daily livestock feeding comfort are of paramount importance.



• Thanks to its impressive capacity of 2.18 m³ and dimensions of 1603 mm in length and 1150 mm in height, the bucket allows for the rapid distribution of large quantities of feed from a single fill.

• This significantly shortens labor time and increases the efficiency of feed dispensing in cattle, pig, or poultry farming.



• The dual-motor auger mechanism enables feed distribution in two directions—to either the left or right side—which streamlines the feeding routine and ensures an even layout of forage along the entire length of the feed alley.

• Furthermore, the integrated internal agitators effectively prevent feed from bridging or hanging up inside the hopper.

• This is crucial when distributing mixtures containing fibrous materials such as grass, straw, or wet meals, guaranteeing uninterrupted and smooth operation.



• The high-quality steel construction—featuring 6 mm thick side walls and a 5 mm main shell—ensures exceptional durability and resistance to heavy loads, impacts, and long-term wear in demanding agricultural environments.

• The lower section of the device is additionally reinforced with a cutting edge made of wear-resistant HB500 steel (100x16 mm), which ensures clean feed scooping from the ground while protecting the structure from mechanical wear.



• A recommended hydraulic oil flow of 45 L/min enables smooth and precise operation of the auger screw, minimizing energy consumption while maximizing control over the dosing process.

• The 2400 mm bucket is fully compatible with agricultural tractors equipped with front loaders and auxiliary hydraulics—including brands such as John Deere, New Holland, Zetor, Case IH, Massey Ferguson, Kubota, and Ursus—as well as telehandlers and compact wheel loaders.



• This model is an excellent solution for farms requiring high-performance equipment for daily herd feeding, successfully combining large working volume, rugged craftsmanship, and versatility into one highly dependable tool.
