Kołaszewski volumetric screw feeder bucket with top clamp 1.8 x 1.2 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KFBWGV180

- Manufacturer's name: Volumetric screw feeder bucket with top clamp

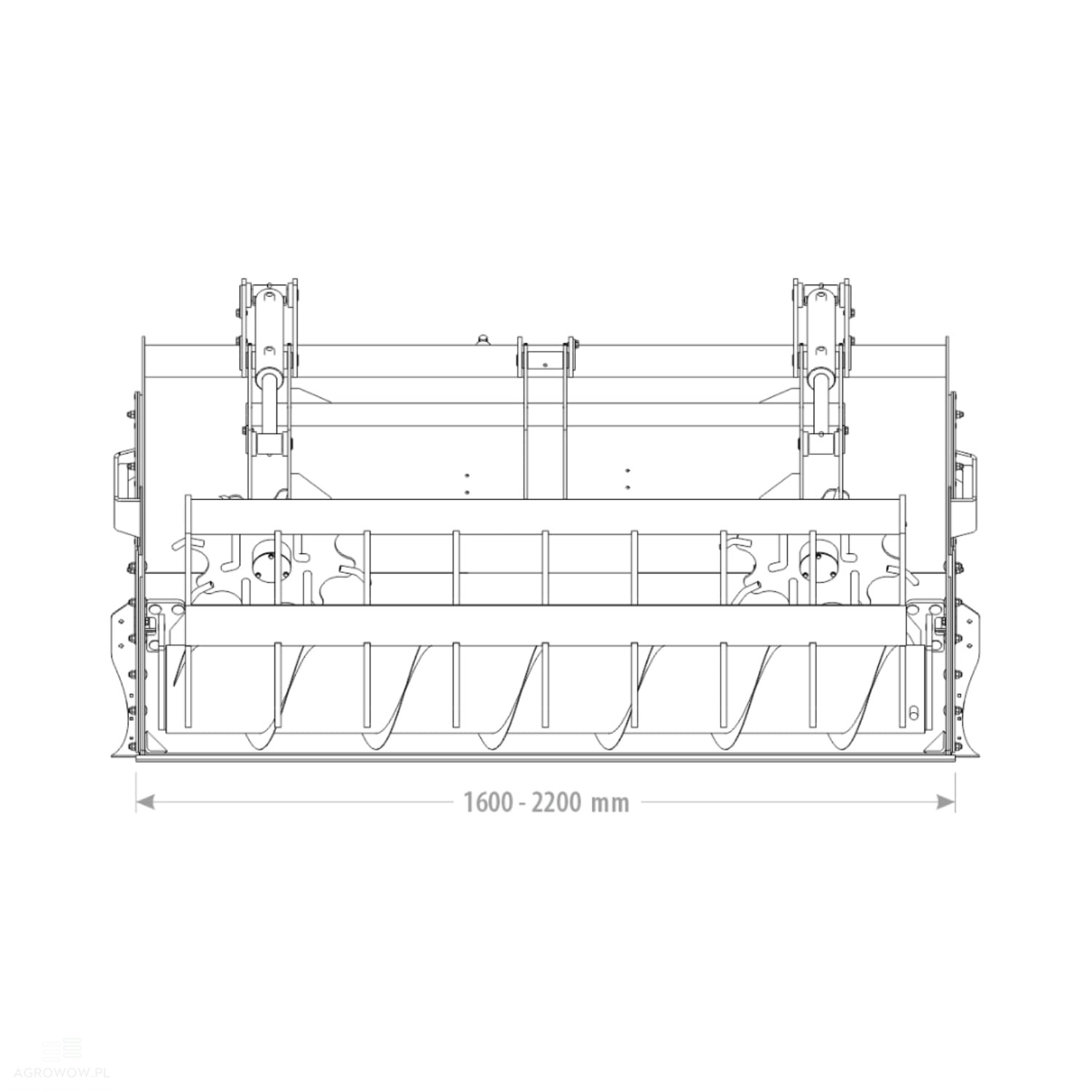

- Width: 1800 mm

- Length: 1600 mm

- Bucket height: 1200 mm

- Bucket height with top clamp: 1416 mm

- Capacity: 1.64 m³

- Weight: 780 kg

- Side wall thickness: 6 mm

- Main shell thickness: 5 mm

- HB500 cutting edge: 100x16 mm

- Recommended oil flow: 45 L/min

- Hydraulic motors: 2

- Feeder motor: Integrated hydraulic motor in the feeder mechanism

- Holding clamp: High-capacity clamp for feed harvesting and containment

Optional Equipment (Extra Charge):

- VMP Relief Valve

The VMP-type relief valve plays a crucial role in hydraulic systems, protecting the circuit from exceeding the maximum allowable operating pressure. In a situation where the pressure reaches its limit, the valve opens automatically to allow excess fluid to escape. This minimizes the risk of overload and safeguards system components against damage. The adjustable pressure settings allow the valve to be tailored to the specific nature of a given system, resulting in safe, stable, and reliable operation of the entire hydraulic installation.

- Additional Motor

Recommended for feed with grass and straw mixtures. This optional hydraulic motor serves as a valuable addition to the equipment's main drive, particularly when working with feeds containing fibrous components such as grass or straw. Its application increases torque, making it easier to process more demanding materials. The additional motor improves smooth operation, ensures better load distribution, and protects the mechanism from premature wear. This solution increases the longevity of the entire system and raises its efficiency, especially under intensive daily operating conditions.

Detailed Description:

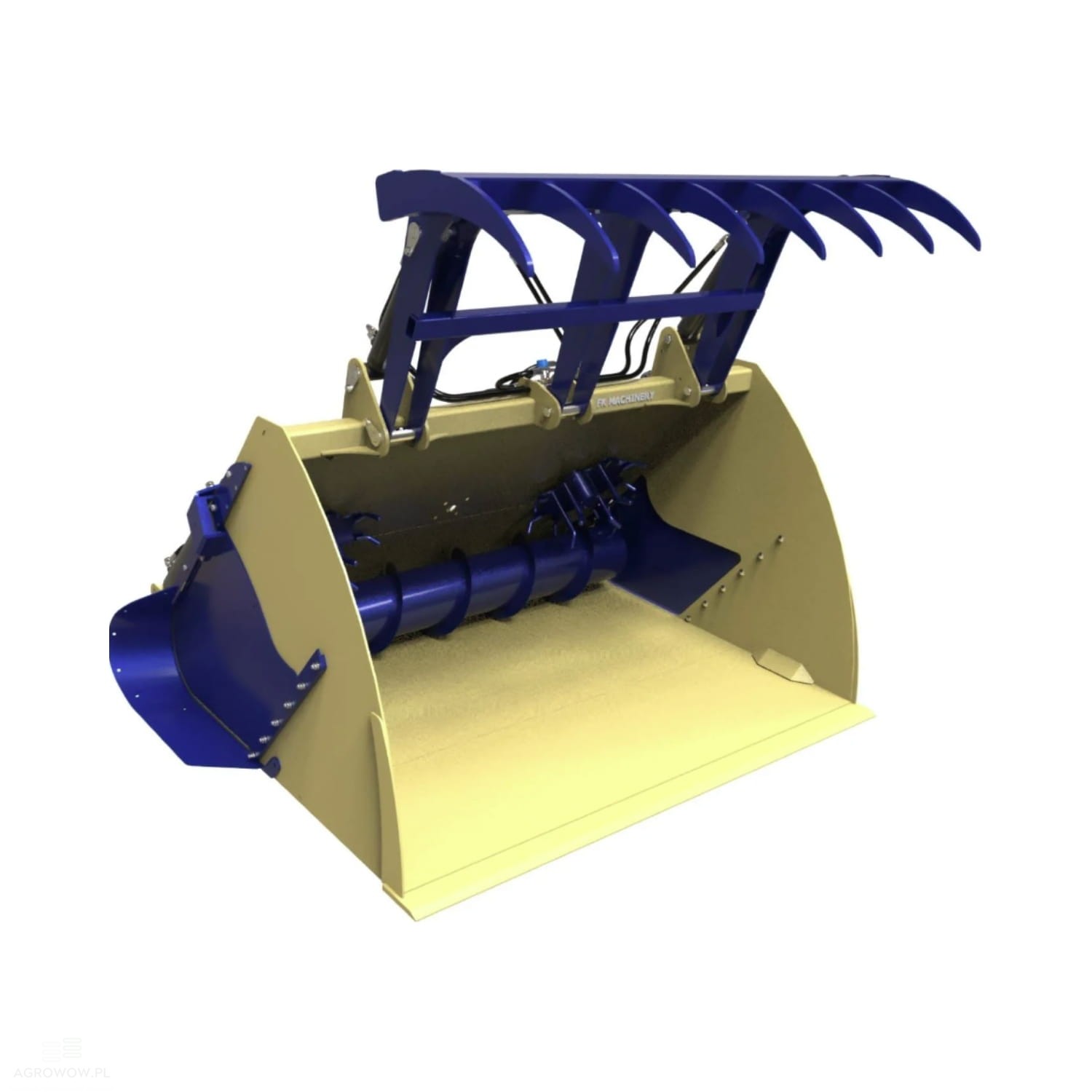

• The 1800 mm wide volumetric screw feeder bucket with a top clamp is an efficient and solidly constructed attachment designed for intensive feeding operations on large-scale agricultural farms.

• This device performs exceptionally well in cattle, pig, and poultry farming, offering precise and reliable distribution of bulk forage, meals, and grains.

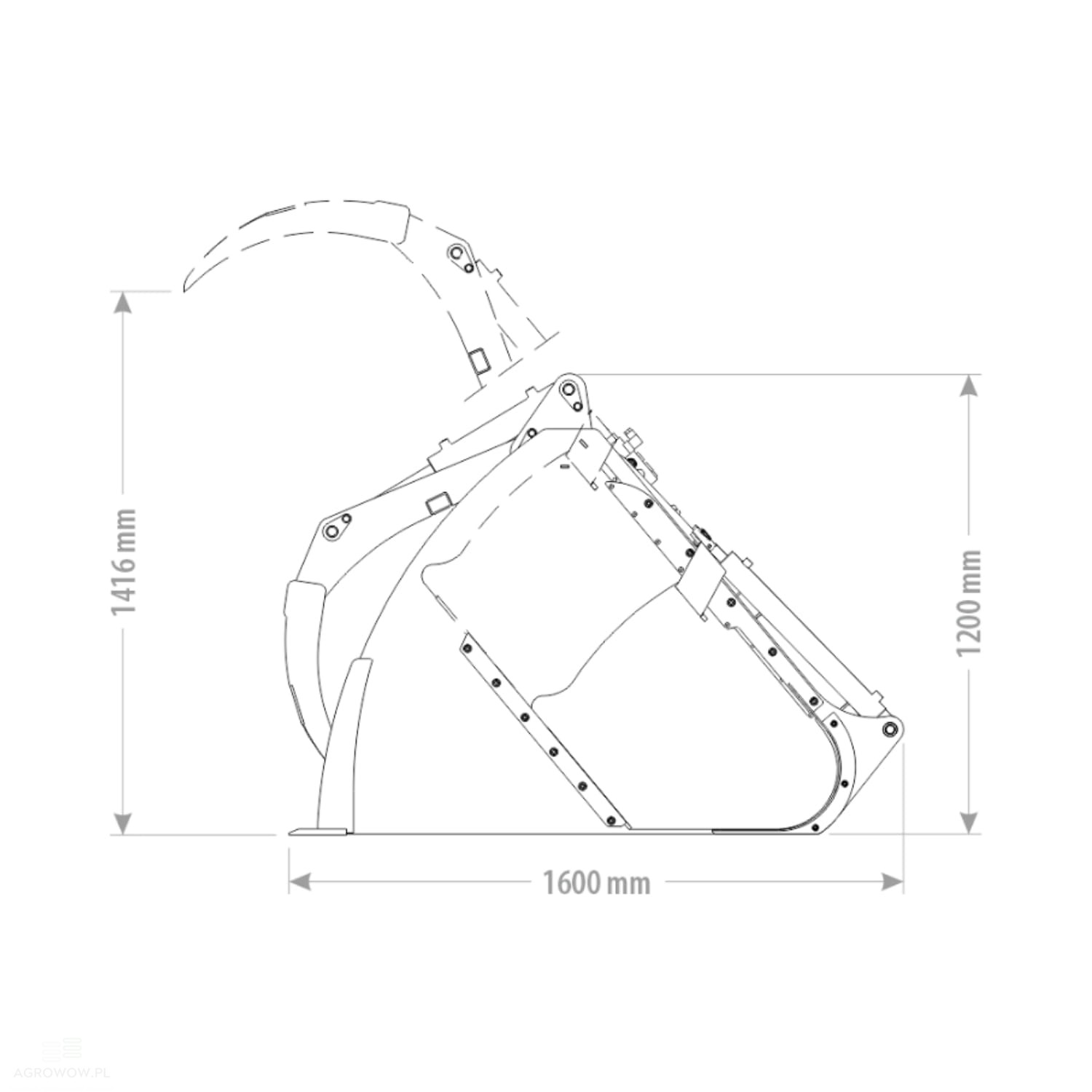

• With a working capacity of 1.64 m³ and dimensions of 1600 mm in length, 1200 mm in bucket height, and 1416 mm with the clamp engaged, it allows for quick filling and transport of large material volumes while maintaining working comfort even within confined feeding spaces.

• The auger screw mechanism, driven by two hydraulic motors, guarantees smooth and uniform feed dispensing, even for material with higher density or moisture content.

• An additional hydraulic motor placed directly in the feeder mechanism ensures stable and trouble-free system operation even with more demanding components, increasing the overall reliability of the machine.

• The built-in front top clamp significantly eases feed harvesting from silage pits and silos—stabilizing the material, preventing it from shifting during transport, and streamlining the loading process.

• Constructed from heavy-duty materials, featuring 6 mm thick side walls and a 5 mm main shell, the structure provides high resistance to impacts, abrasion, and intensive wear under daily operating conditions.

• The lower section of the bucket is fitted with a durable cutting edge made of wear-resistant HB500 steel (100x16 mm), which extends the lifespan of the structure and improves material scooping from the ground.

• A recommended oil flow of 45 L/min enables energy-efficient and highly effective operation of the entire hydraulic system, providing full control over the feed dispensing process.

• This 1800 mm volumetric model with a top clamp is an indispensable tool for professionals looking for a proven, functional solution for livestock feeding.

• The bucket is fully compatible with tractors equipped with front loaders and hydraulic systems from renowned manufacturers such as John Deere, New Holland, Zetor, Ursus, Case IH, Kubota, and Massey Ferguson.
