Kołaszewski volumetric screw feeder bucket with top clamp 2.0 x 1.2 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KFBWGV200

- Manufacturer's name: Volumetric screw feeder bucket with top clamp

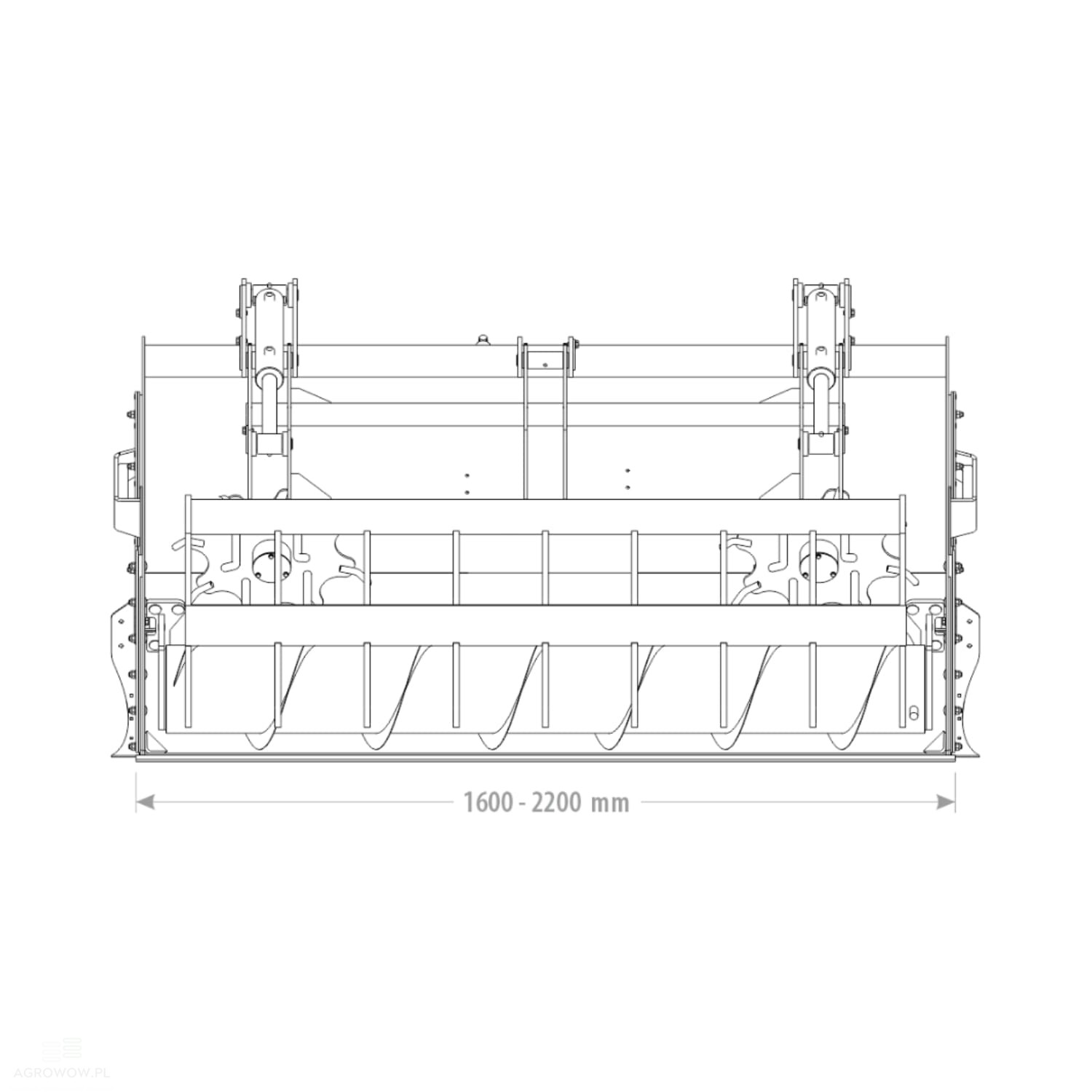

- Width: 2000 mm

- Length: 1600 mm

- Bucket height: 1200 mm

- Bucket height with top clamp: 1416 mm

- Capacity: 1.82 m³

- Weight: 845 kg

- Side wall thickness: 6 mm

- Main shell thickness: 5 mm

- HB500 cutting edge: 100x16 mm

- Recommended oil flow: 45 L/min

- Hydraulic motors: 2

- Feeder motor: Integrated hydraulic motor in the feeder mechanism

- Holding clamp: High-capacity clamp for feed harvesting and containment

Optional Equipment (Extra Charge):

- VMP Relief Valve

The VMP relief valve is an essential protective component in hydraulic systems, with the primary task of controlling and maintaining pressure within a safe range. If the maximum allowable limit is exceeded, the valve automatically opens to discharge excess fluid from the circuit, safeguarding system components from overloads and potential damage. Thanks to its adjustability, the valve can be precisely tailored to the specific requirements of a given installation, guaranteeing the reliable, stable, and safe operation of the entire hydraulic system.

- Additional Motor

Recommended for feed with grass and straw mixtures. An additional hydraulic motor serves as a practical extension of the main drive system, particularly recommended when working with high-fiber feeds such as straw or grass. Its application increases the available torque, allowing for more efficient processing of more difficult materials. This auxiliary motor ensures a more uniform distribution of working forces, reduces the risk of overloads, and extends the service life and reliability of the entire system—especially during intensive use under daily operating conditions.

Detailed Description:

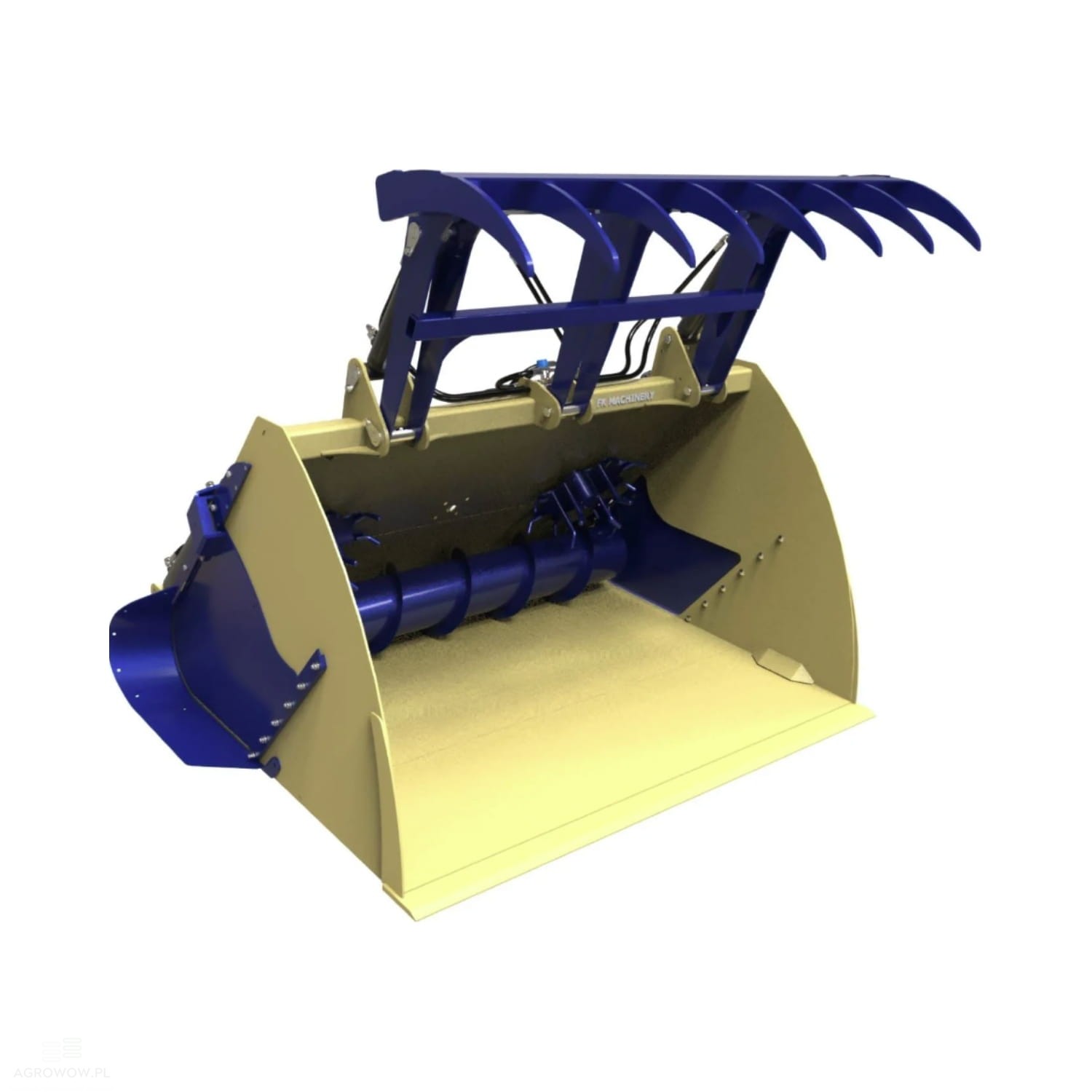

• The 2000 mm wide volumetric screw feeder bucket with a top clamp is a reliable and highly efficient solution dedicated to large-scale agricultural farms, where quick, precise, and safe feed dispensing is of key importance.

• Thanks to its rugged build and functional design, the device performs excellently in intensive livestock management—including cattle, pigs, and poultry—offering uniform dosing of bulk forage, meals, grains, and mixtures with diverse structural properties.

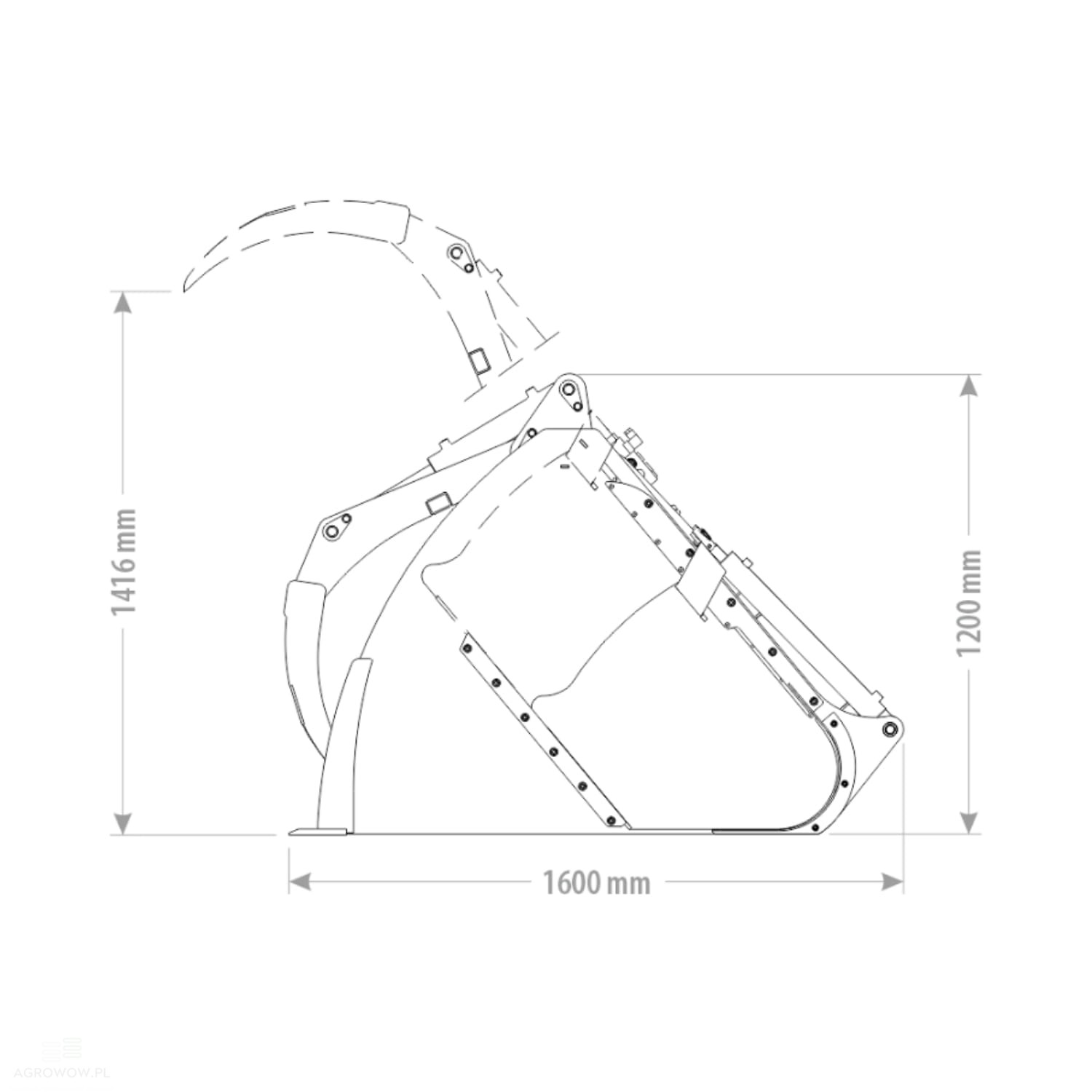

• With a working capacity of 1.82 m³ and dimensions of 1600 mm in length, 1200 mm in bucket height, and 1416 mm with the clamp fully engaged, it allows for the loading of large material volumes in a single batch.

• This translates directly into more efficient feeding routines and substantial time savings during daily farm duties.

• The dual-driven auger screw mechanism, powered by two hydraulic motors, ensures smooth, uninterrupted operation and a highly uniform feed output, even when handling materials of increased density or high moisture content.

• Furthermore, the additional hydraulic motor integrated into the feeder supports the main drive, guaranteeing constant performance even when dealing with more challenging feed components like grass or straw.

• The front-mounted top clamp greatly facilitates feed harvesting directly from silage pits and silos, significantly improving material stabilization and protecting it from shifting or spilling during transport across the farm yard.

• Constructed from premium-grade steel, featuring 6 mm thick side walls and a 5 mm main shell, the frame guarantees exceptional durability, abrasion resistance, and absolute reliability under heavy everyday use.

• The lower scraping edge is fitted with a durable cutting edge made of wear-resistant HB500 steel (100x16 mm), which protects the bucket frame from mechanical damage and facilitates clean material scooping from the ground.

• A recommended hydraulic oil flow of 45 L/min ensures an energy-efficient and highly effective operation of the auger system, providing the operator with complete control over the entire feeding process.

• This 2000 mm volumetric model with a holding clamp integrates seamlessly with tractors equipped with front loaders, as well as telehandlers, making it fully compatible with machinery from leading brands such as John Deere, New Holland, Case IH, Zetor, Ursus, Massey Ferguson, and Kubota.

• It remains an irreplaceable asset for professional farms prioritizing peak efficiency, longevity, and working comfort in daily herd nutrition.
