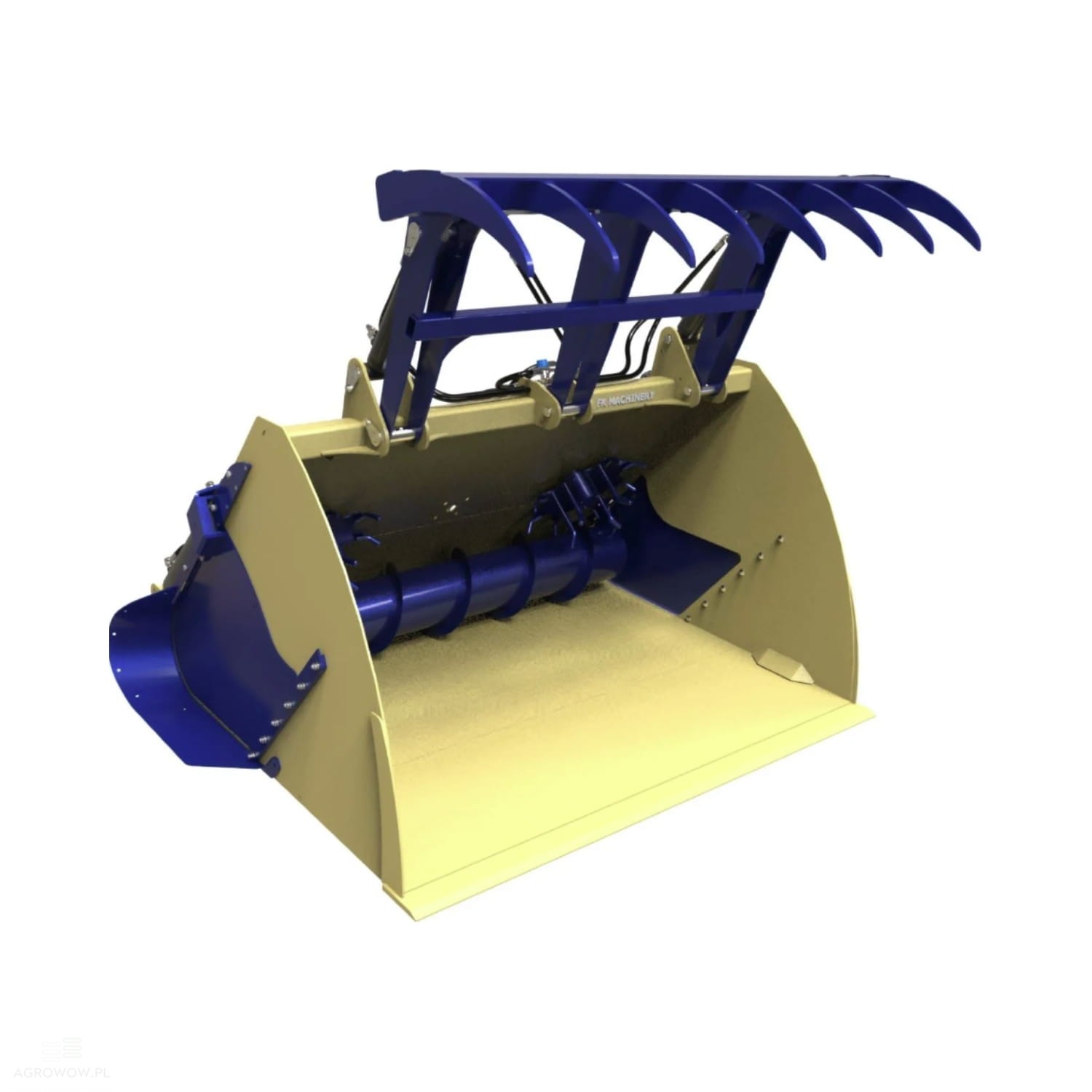

Kołaszewski volumetric screw feeder bucket with top clamp 2.2 x 1.2 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KFBWGV220

- Manufacturer's name: Volumetric screw feeder bucket with top clamp

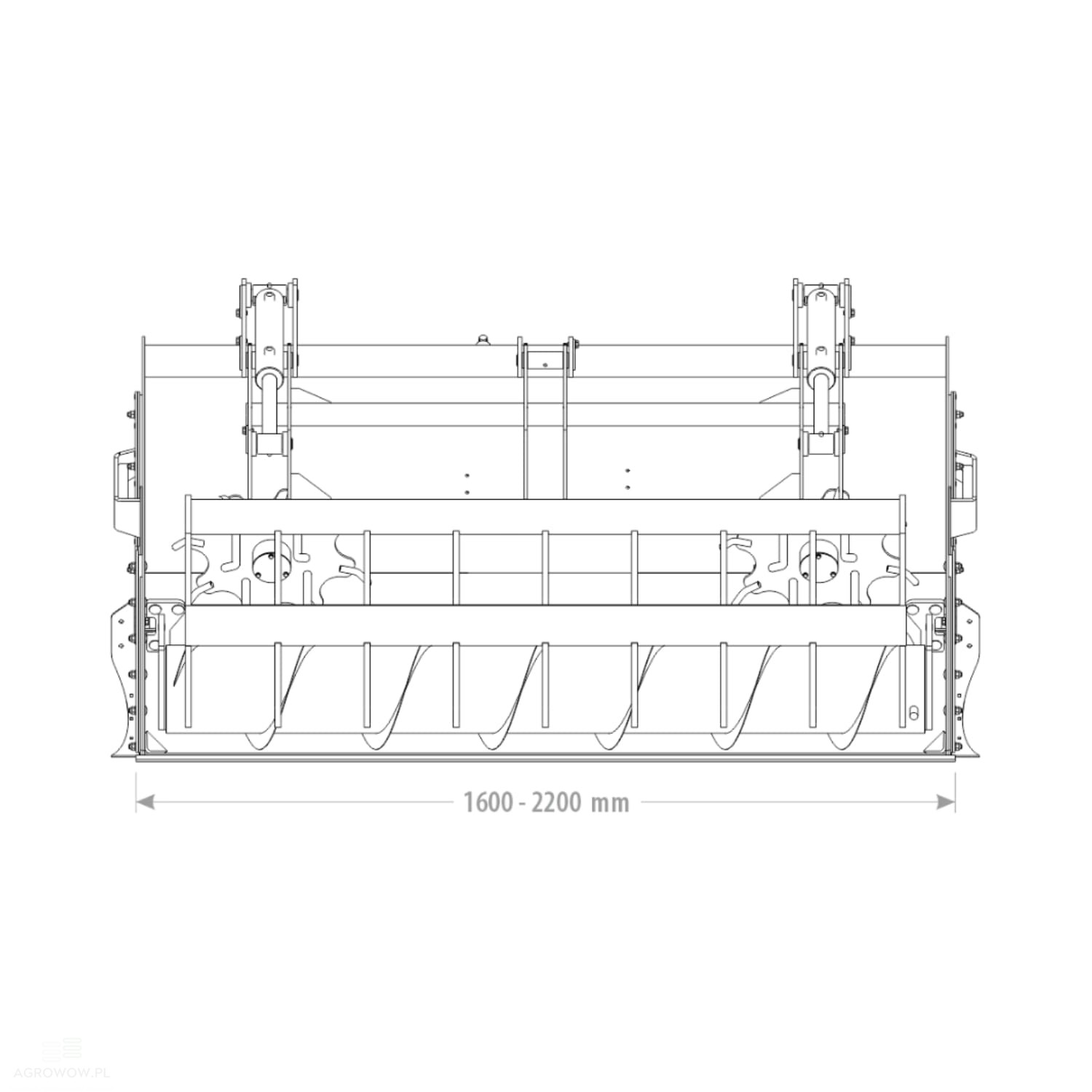

- Width: 2200 mm

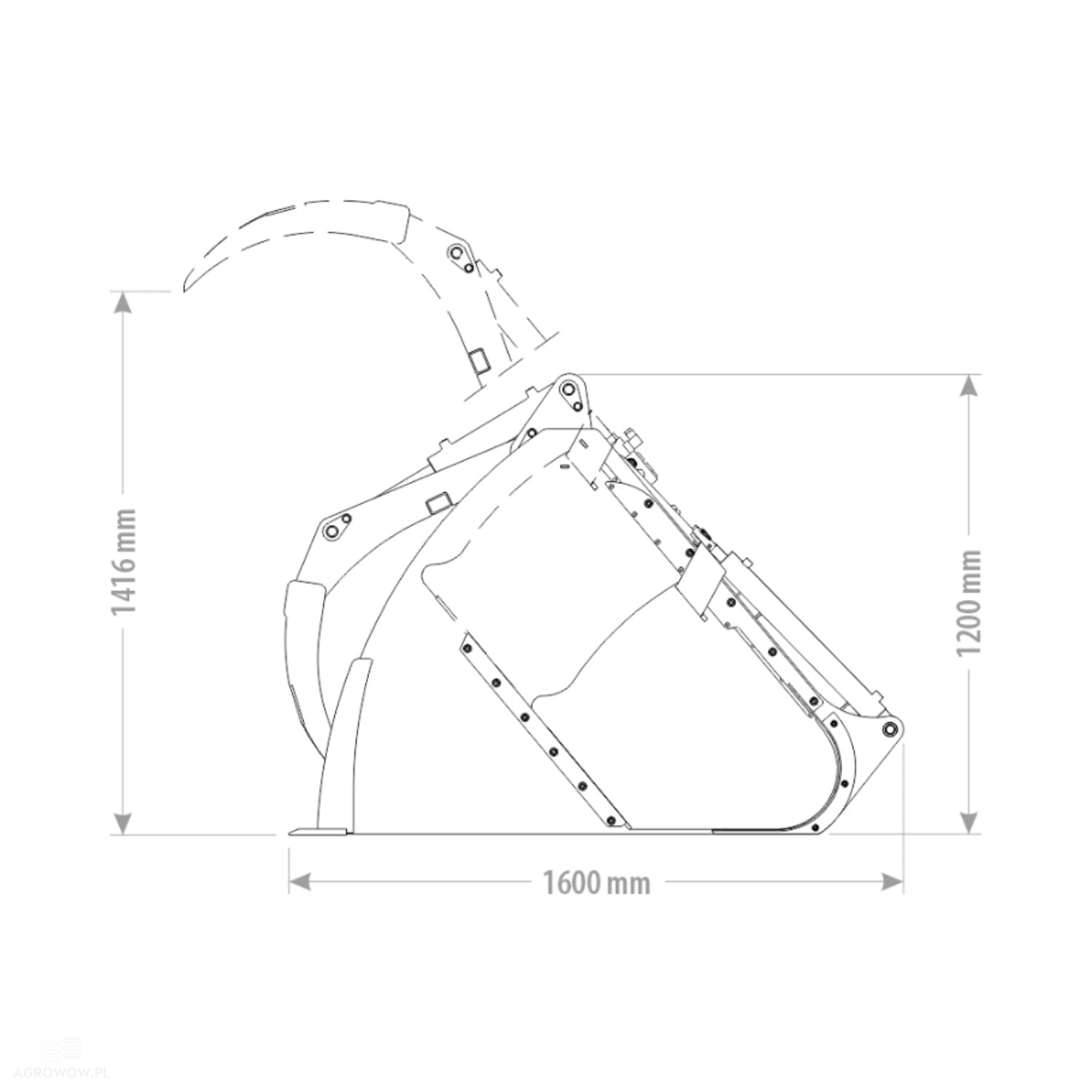

- Length: 1600 mm

- Bucket height: 1200 mm

- Bucket height with top clamp: 1416 mm

- Capacity: 2 m³

- Weight: 910 kg

- Side wall thickness: 6 mm

- Main shell thickness: 5 mm

- HB500 cutting edge: 100x16 mm

- Recommended oil flow: 45 L/min

- Hydraulic motors: 2

- Feeder motor: Integrated hydraulic motor in the feeder mechanism

- Holding clamp: High-capacity clamp for feed harvesting and containment

Optional Equipment (Extra Charge):

- VMP Relief Valve

The VMP-type relief valve plays a crucial protective role in hydraulic systems, responsible for keeping the operating pressure within safe boundaries for the entire system. When pressure exceeds the preset limit, the valve automatically opens to release excess fluid, effectively preventing overloads and component failures across the installation. The valve design allows for precise pressure parameter adjustments, enabling its operation to be perfectly matched to the specifics of the given application, thereby ensuring the continuity, safety, and reliability of the hydraulic system.

- Additional Motor (zalecany przy paszach z domieszką trawy i słomy)

Recommended for feed with grass and straw mixtures. This optional hydraulic motor serves as a functional addition to the main drive system, specifically recommended when handling fibrous types of feed such as grass or straw. Its inclusion boosts the equipment's torque, significantly easing the processing of more demanding materials. The additional motor supports uniform distribution of working forces within the system, reduces overload risks, and protects components from premature wear. This solution enhances overall system performance and guarantees long-term durability, even under intensive daily operation.

Detailed Description:

• The 2200 mm wide volumetric screw feeder bucket with a top clamp is a high-class attachment engineered for intensive use on large-scale agricultural farms that prioritize maximum productivity, precision, and reliability during daily feeding routines.

• With a working capacity of 2 m³ and dimensions of 1600 mm in length and 1200 mm in height (1416 mm with the clamp fully engaged), this bucket allows for the single-batch loading of large material volumes.

• This significantly streamlines the livestock feeding process and reduces the number of trips required, saving both time and fuel.

• The twin-auger screw mechanism, driven by two heavy-duty hydraulic motors, guarantees smooth, continuous, and uniform feed distribution—regardless of its structure or moisture content.

• An additional hydraulic motor positioned directly in the feeder mechanism supports the primary drive setup, increasing working torque and performance.

• This configuration is particularly vital when dispensing feed mixtures mixed with grass, straw, or other highly fibrous ingredients.

• The heavy-duty front top clamp ensures efficient and convenient feed harvesting directly from silage pits, clamps, or silos, stabilizing the bulk material during transit and minimizing spillage losses while driving across the farm yard.

• Built to withstand heavy workloads, the structure is fabricated from high-grade steel featuring 6 mm thick side walls and a 5 mm main shell, providing outstanding resistance to intensive impacts, deformation, and abrasive wear to guarantee a long service life.

• The lower edge of the bucket is outfitted with a cutting edge made of wear-resistant HB500 steel (100x16 mm), which maximizes clean scraping from the ground while protecting the main frame against mechanical wear.

• A recommended hydraulic oil flow of 45 L/min enables an energy-efficient, precise, and quiet operation of the auger screw assembly, translating directly into better operator comfort and exact feed dosing.

• This 2200 mm wide model integrates seamlessly with most tractors equipped with front loaders, as well as telehandlers and wheel loaders from major brands such as John Deere, Zetor, New Holland, Case IH, Ursus, Massey Ferguson, and Kubota.

• It is a highly versatile and irreplaceable tool for professional livestock farms demanding peak efficiency, durability, and convenience in daily herd management.
