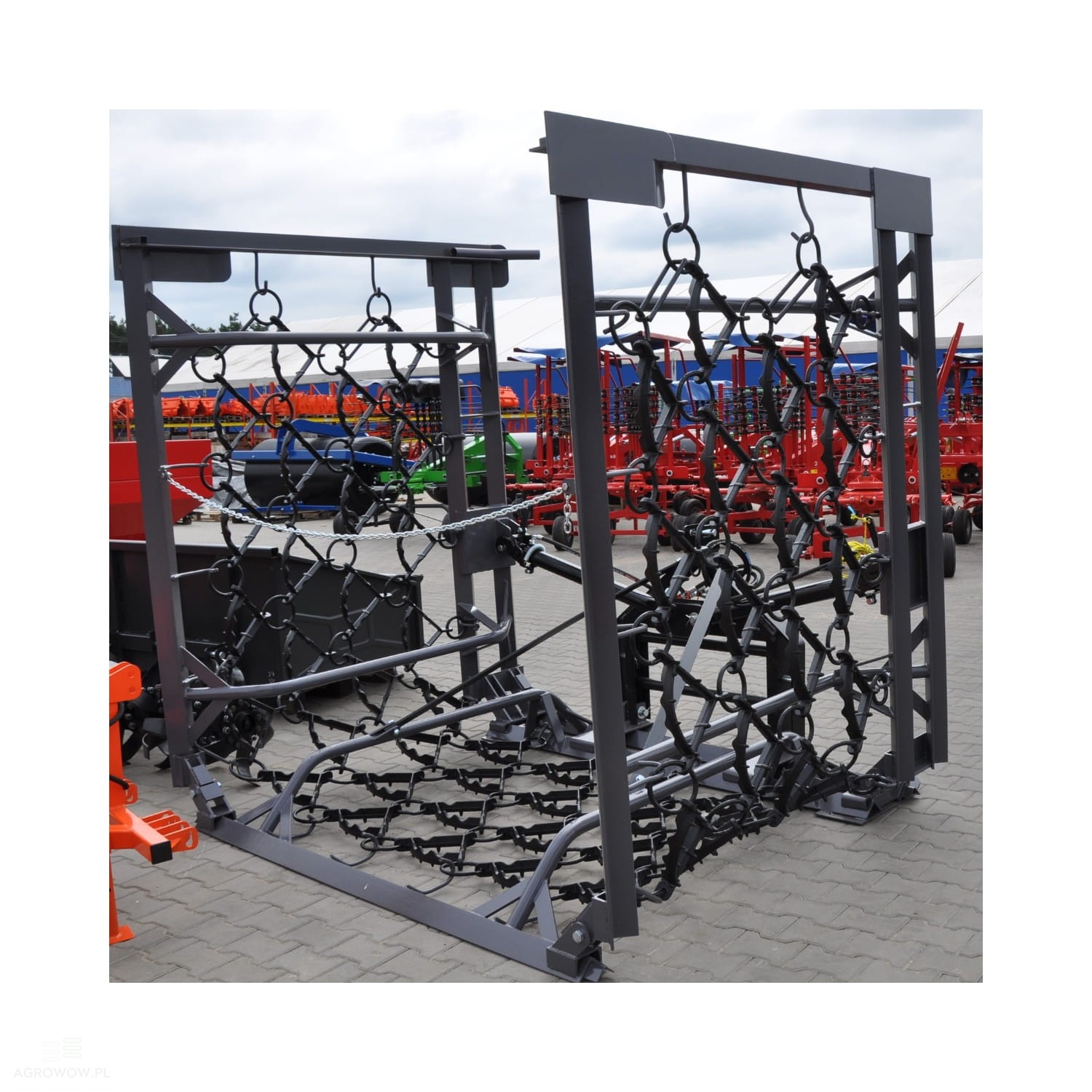

Metal-Technik chain harrow 4 m / 3 rz / 1

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Metal-Technik

- Catalogue number: MT43WB

- Manufacturer's name: Chain harrow

- Width: 4000 mm

- Height: 1350 mm

- Weight: 551 kg

- Cylinders: 1

- Hitch/Mounting: Three-point linkage (TUZ) Cat. II

- Version: 3-row

- Folding: Hydraulic

- Breaks up soil crusts formed during winter

- The frame and mesh consist of toothed, cast-iron working elements

- Special hinges ensuring stability during operation and transport

- The chain harrow meshes are equipped with reversible working elements for dual-purpose use

Detailed Description:

• The 4000 mm wide, 3-row chain harrow is a solid and reliable agricultural tool designed for intensive work on farmlands, pastures, and meadows.

• It finds application on individual farms as well as within commercial firms providing agrotechnical services.

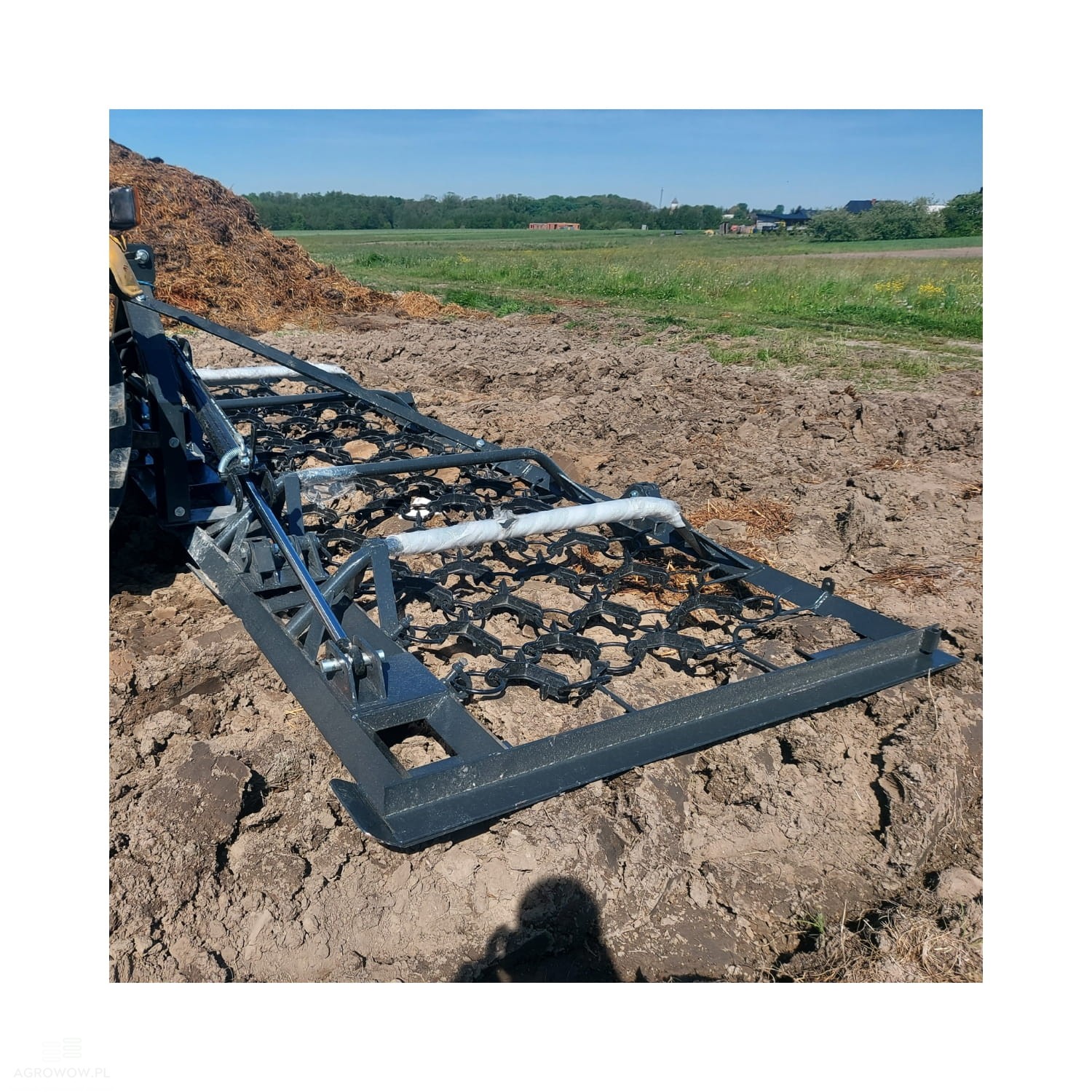

• The structure is engineered to effectively level the soil surface, break up winter soil crusts, and maintain lawns and grasslands.

• By firming the soil and eliminating small, germinating weeds, the machine improves plant growth conditions and enhances fertilizer efficiency.

• With a height of 1350 mm and a weight of 551 kg, the model ensures proper downward pressure against the ground, guaranteeing high operational efficiency even on difficult and uneven terrain.

• This balanced weight distribution allows the working elements to contour perfectly to the ground surface.

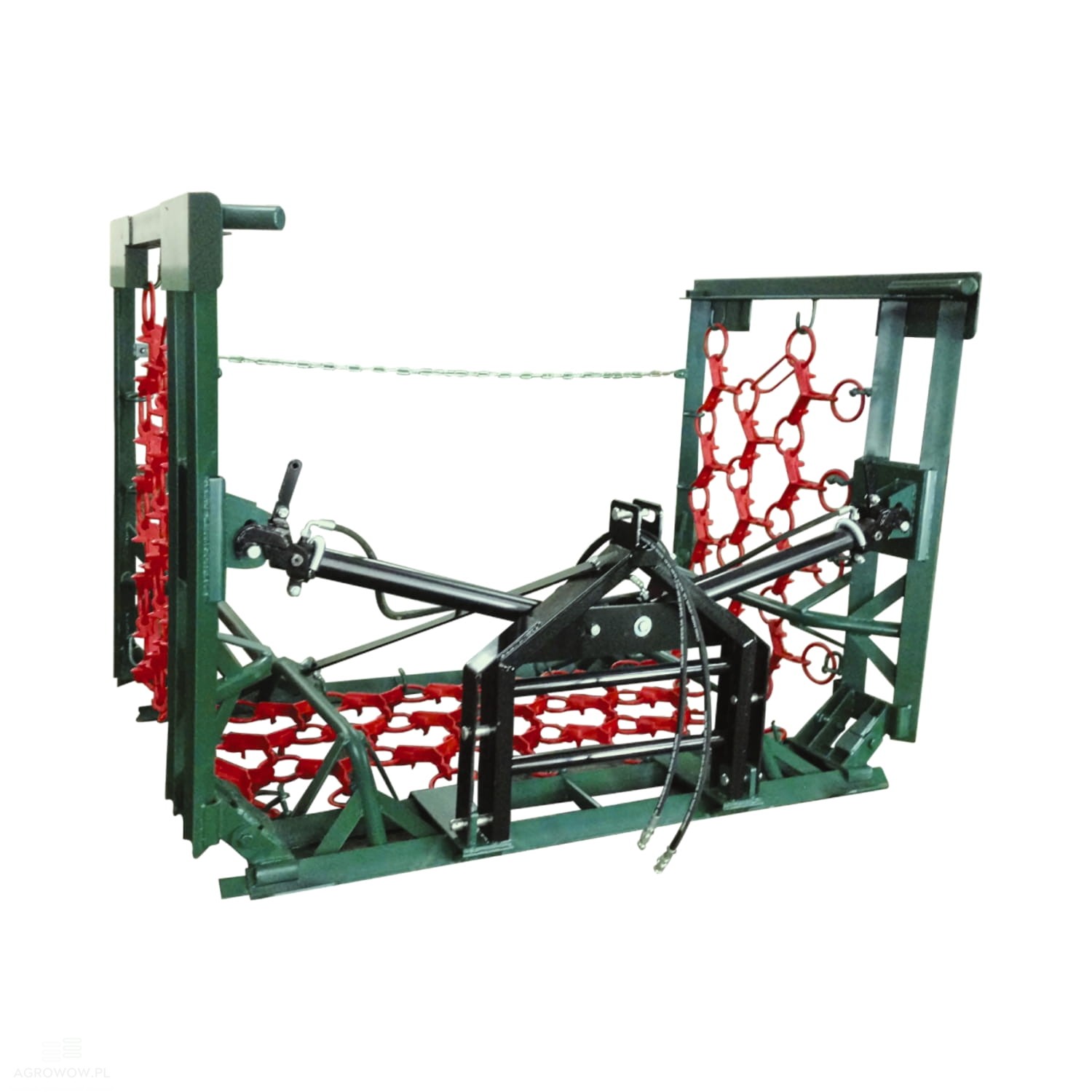

• The three-row configuration and the integration of a single hydraulic cylinder enable efficient folding and unfolding of the frame, significantly simplifying transport and fieldwork preparation.

• Operation is carried out without the need to leave the tractor cabin, which increases overall user comfort.

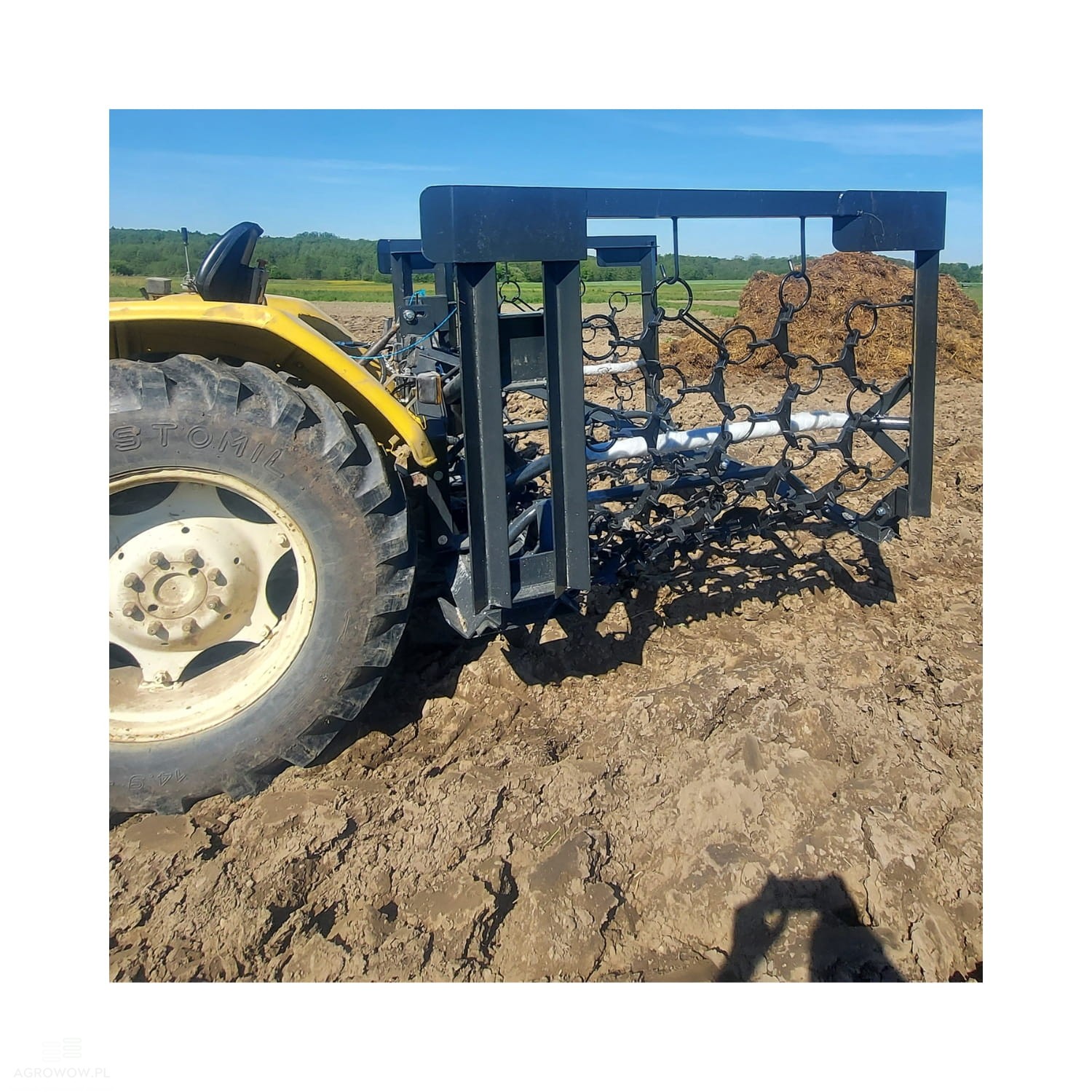

• The three-point linkage (TUZ) Cat. II hitch provides wide compatibility with popular agricultural tractor models, making the chain harrow an exceptionally versatile solution for many users.

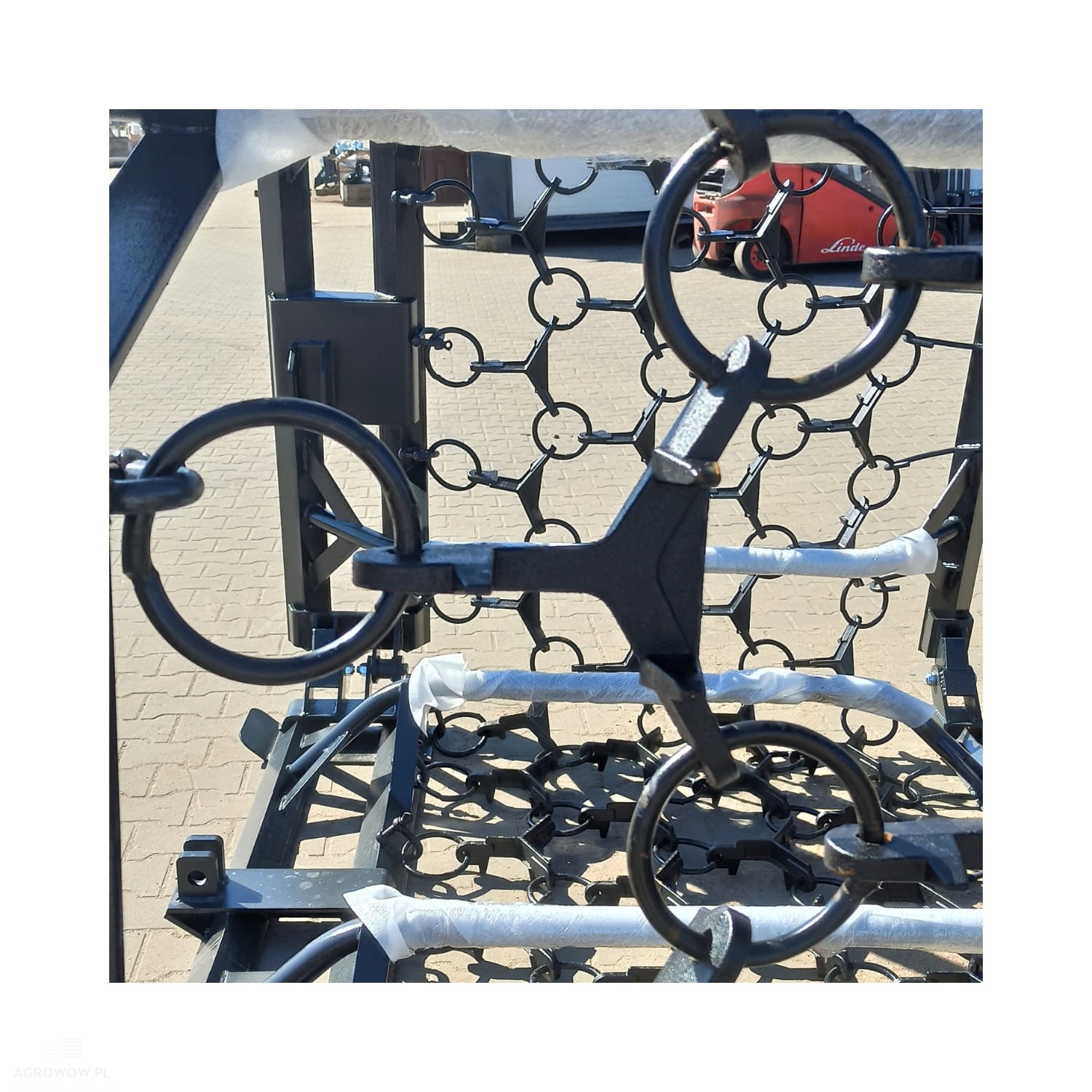

• The working elements, made of durable cast iron, feature specially profiled teeth that effectively loosen and clear the soil.

• Their fully reversible design allows them to be turned over once one side is worn, resulting in a longer tool lifespan and lower operating costs.

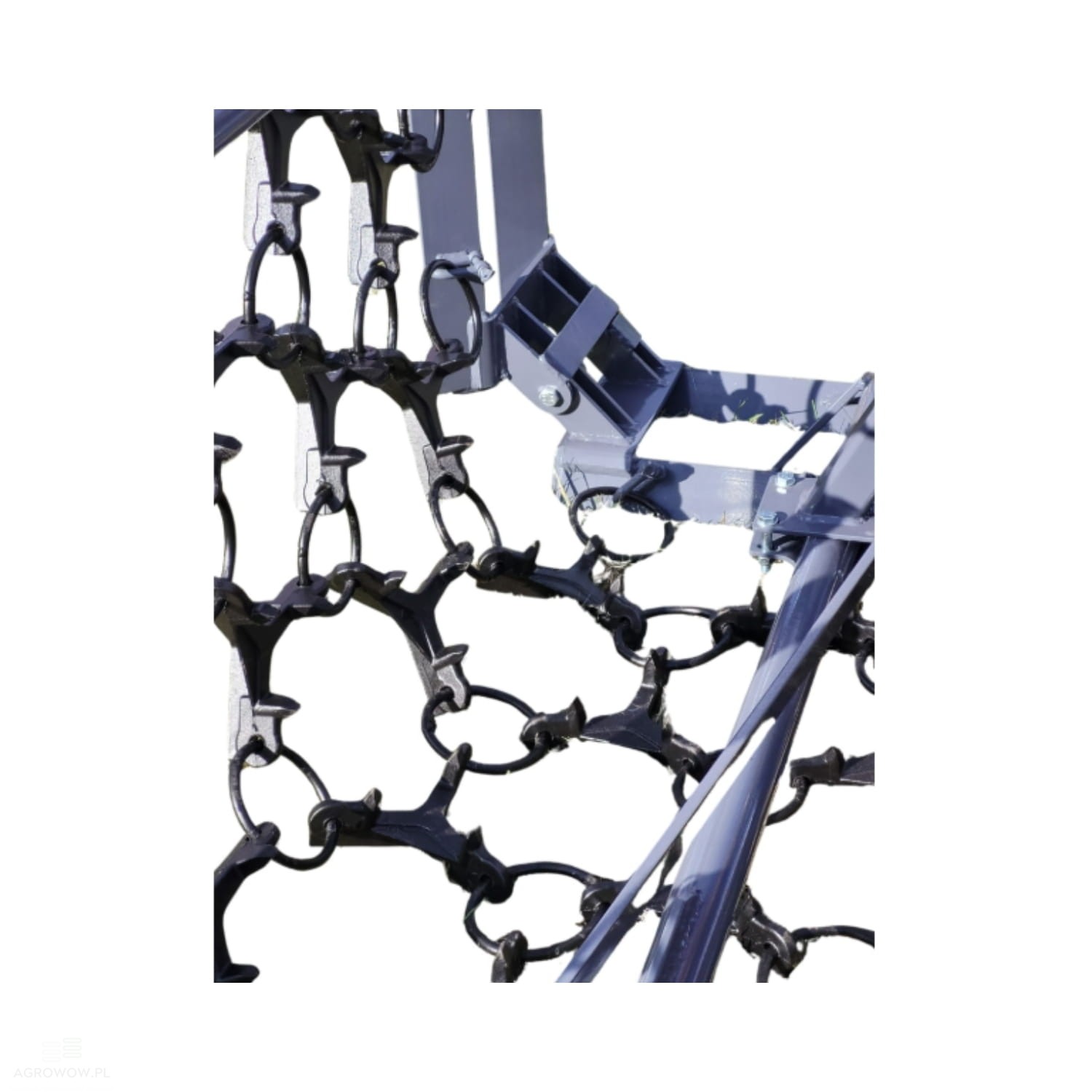

• Special hinges within the frame structure increase the stability of the entire machine during both fieldwork and transport, which is especially important when navigating uneven terrain and access roads.

• The 4000 mm chain harrow is an ideal tool for operations related to harrowing meadows, spreading molehills, reclaiming green areas, and preparing fields for sowing.

• Thanks to its solid construction and well-thought-out technical solutions, this chain harrow ensures many years of trouble-free operation under all field conditions.
