Metal-Technik chain harrow 5 m / 3 rz / 1

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Metal-Technik

- Catalogue number: MT531WB

- Manufacturer's name: Chain harrow

- Width: 5000 mm

- Height: 1630 mm

- Weight: 506 kg

- Cylinders: 1

- Hitch/Mounting: Three-point linkage (TUZ) Cat. II

- Version: 3-row

- Folding: Hydraulic

- Breaks up soil crusts formed during winter

- Firms the soil and destroys small, germinating weeds

- The frame and mesh consist of toothed, cast-iron working elements

- Special hinges ensuring stability during operation and transport

- The chain harrow meshes are equipped with reversible working elements for dual-purpose use

Detailed Description:

• The 3-row chain harrow with a working width of 5000 mm is a versatile and solid tool designed for intensive work on meadows, pastures, and cultivated fields.
• It provides indispensable support on farms and for commercial service enterprises specializing in the maintenance and reclamation of green areas.
• Thanks to its carefully engineered design, the machine effectively breaks up soil crusts formed over the winter, levels the ground surface, firms the soil, and eliminates tiny weeds in their germination phase.
• A transport height of 1630 mm and a weight of 506 kg ensure appropriate downward pressure against the ground, translating into efficient and precise operation even under challenging terrain conditions.
• The hydraulic folding system, operated by a single cylinder, allows for efficient preparation of the machine for fieldwork or transport without the operator ever needing to leave the tractor cabin.
• This system ensures operating convenience and shortens the time required to change between working and transport positions.
• Equipped with a three-point linkage (TUZ) Cat. II hitch, the chain harrow is compatible with most standard agricultural tractors, making it a highly versatile piece of machinery that is easy to implement across different types of farms.

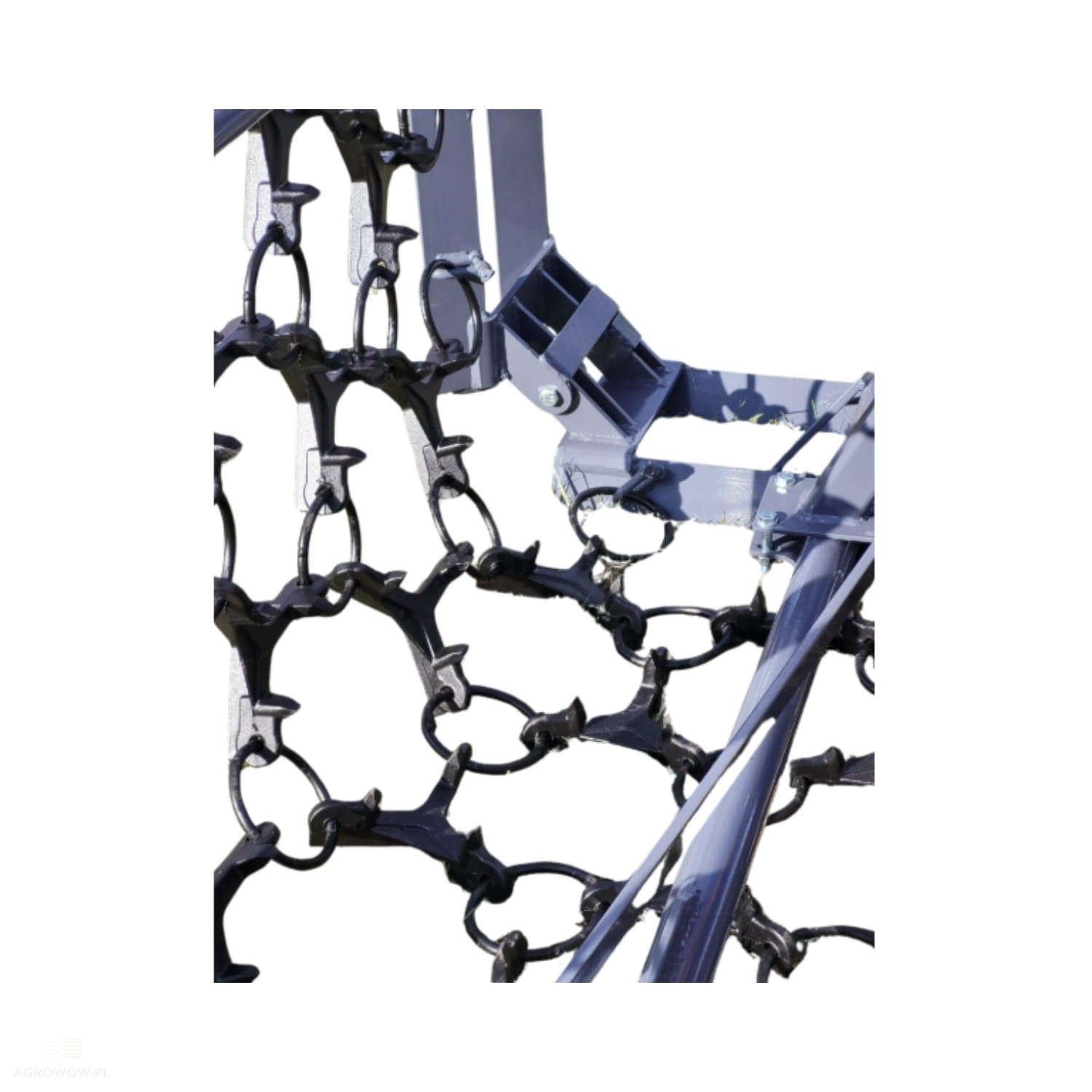

• The working elements, made of durable cast iron and equipped with sharp teeth, effectively loosen the soil, help spread molehills, and improve overall soil structure.
• The fully reversible design of these elements significantly extends their operating lifespan and helps minimize maintenance costs.
• Specially designed hinges within the frame structure increase stability during both fieldwork and transport, which is particularly important when operating on uneven ground.
• The 5000 mm chain harrow is an excellent solution for all tasks related to field preparation, pasture maintenance, or grassland reclamation, guaranteeing durability and operational efficiency for many seasons to turn.
