Metal-Technik chain harrow 6 m / 4 rz / 2

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Metal-Technik

- Catalogue number: MT64WB

- Manufacturer's name: Chain harrow

- Width: 6000 mm

- Height: 2250 mm

- Weight: 719 kg

- Cylinders: 2

- Hitch/Mounting: Three-point linkage (TUZ) Cat. II

- Version: 4-row

- Folding: Hydraulic

- Breaks up soil crusts formed during winter

- Firms the soil and destroys small, germinating weeds

- The frame and mesh consist of toothed, cast-iron working elements

- Special hinges ensuring stability during operation and transport

- The chain harrow meshes are equipped with reversible working elements for dual-purpose use

Detailed Description:

• The 4-row chain harrow with a working width of 6000 mm is a highly efficient agricultural tool built for intensive operations on both meadows and cultivated fields.

• Thanks to its robust build and wide working coverage, it is perfectly suited for harrowing fields, maintaining pastures, leveling surfaces, and breaking up soil crusts formed over the winter. Additionally, it effectively firms the soil and eliminates small, germinating weeds.

• The machine has a transport height of 2250 mm and weighs 719 kg, which provides appropriate downward pressure against the ground, guaranteeing operational efficiency even under challenging terrain conditions.

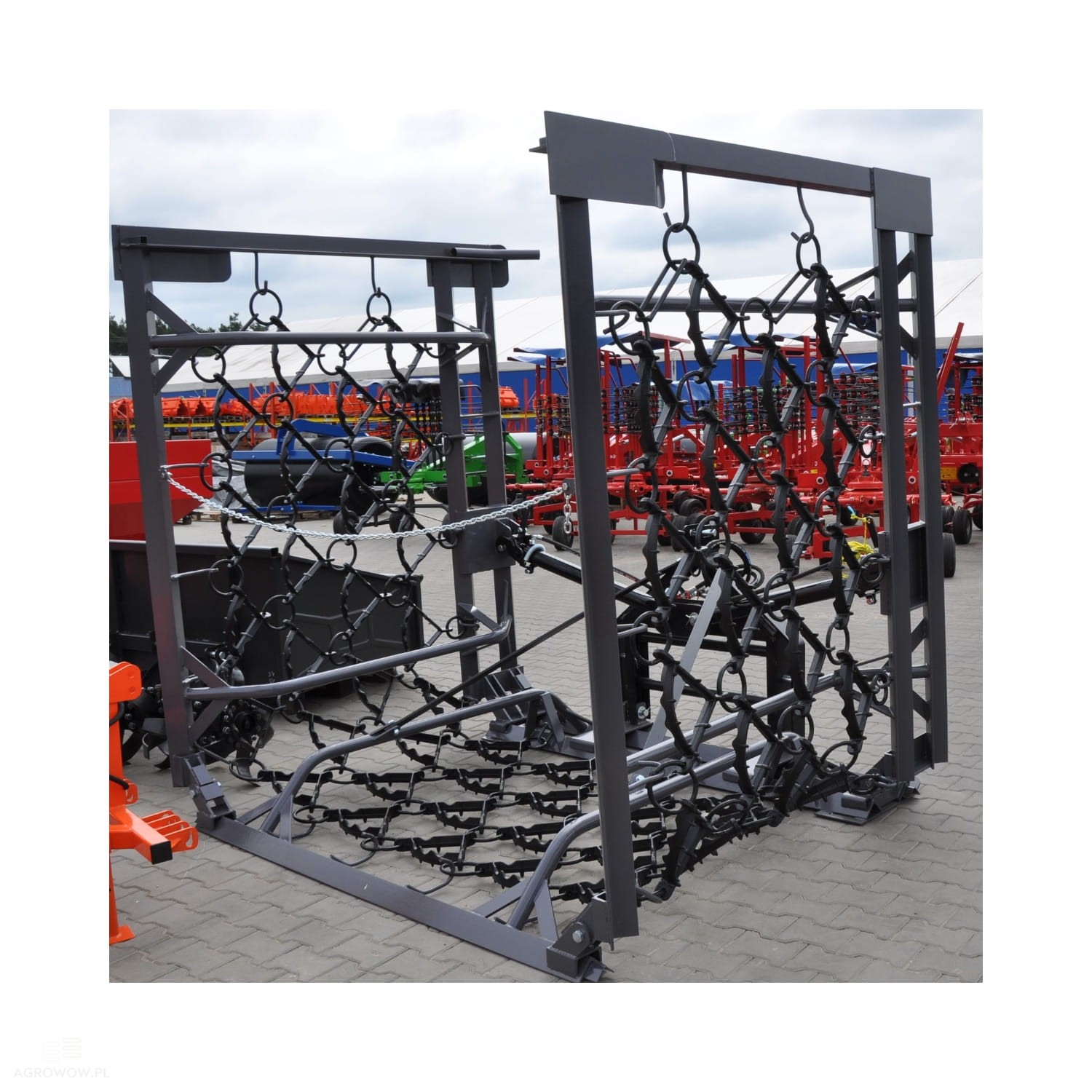

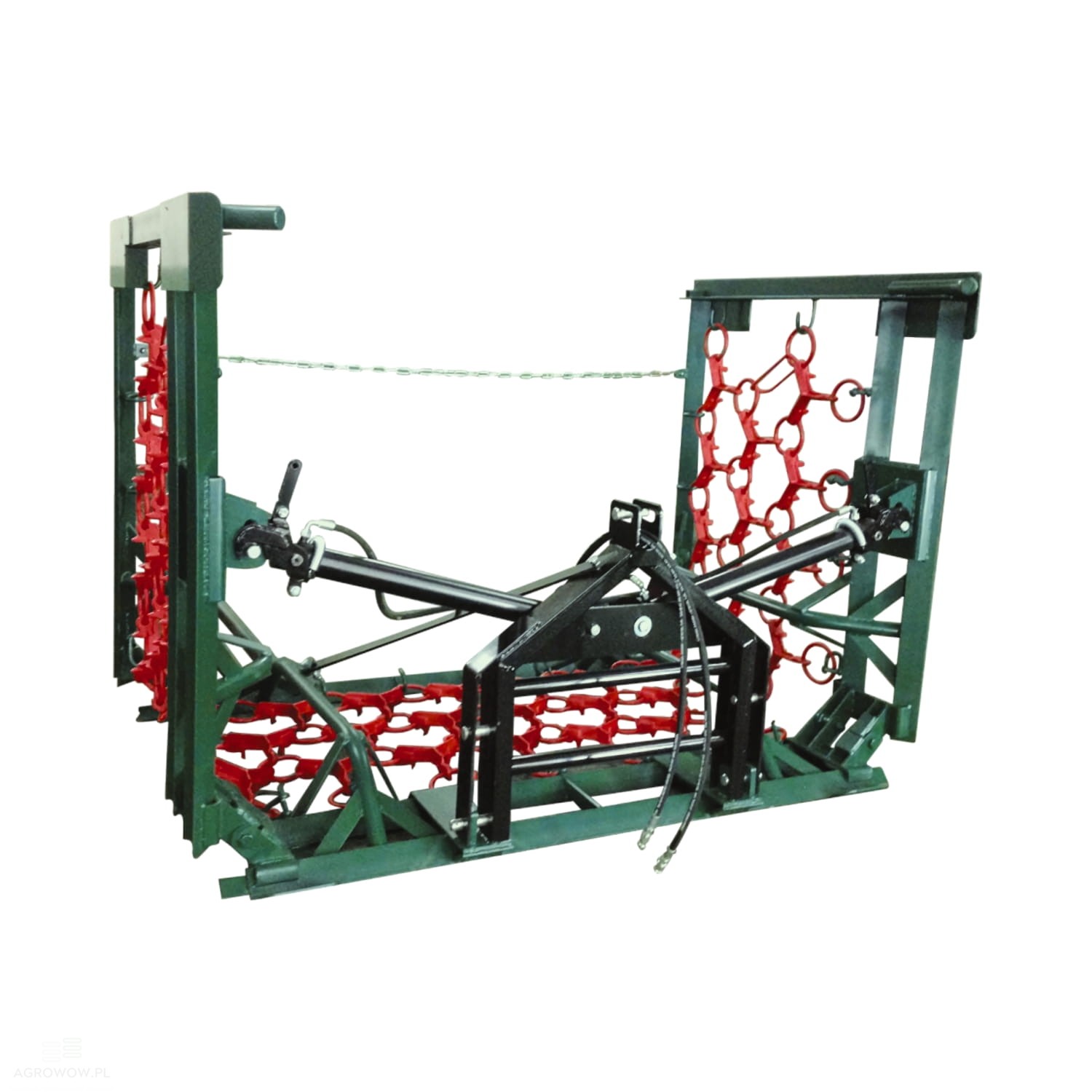

• The four-row configuration, combined with two hydraulic cylinders, enables quick and trouble-free folding and unfolding of the machine without the operator needing to leave the tractor cabin.

• This facilitates maneuvering and significantly increases overall user comfort.

• The integrated three-point linkage (TUZ) Cat. II hitch allows for easy coupling of the chain harrow with most popular tractors, making it a highly versatile implement.

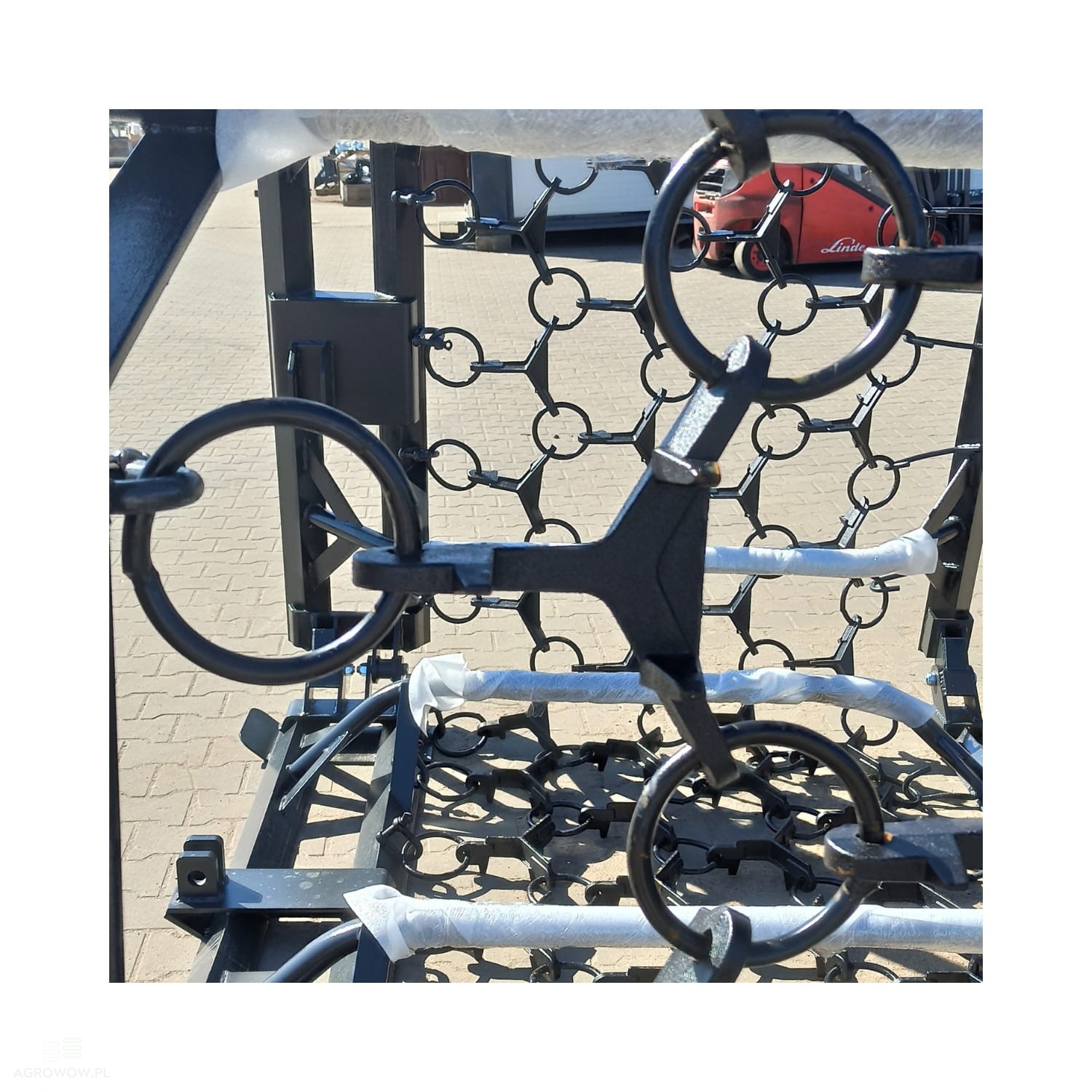

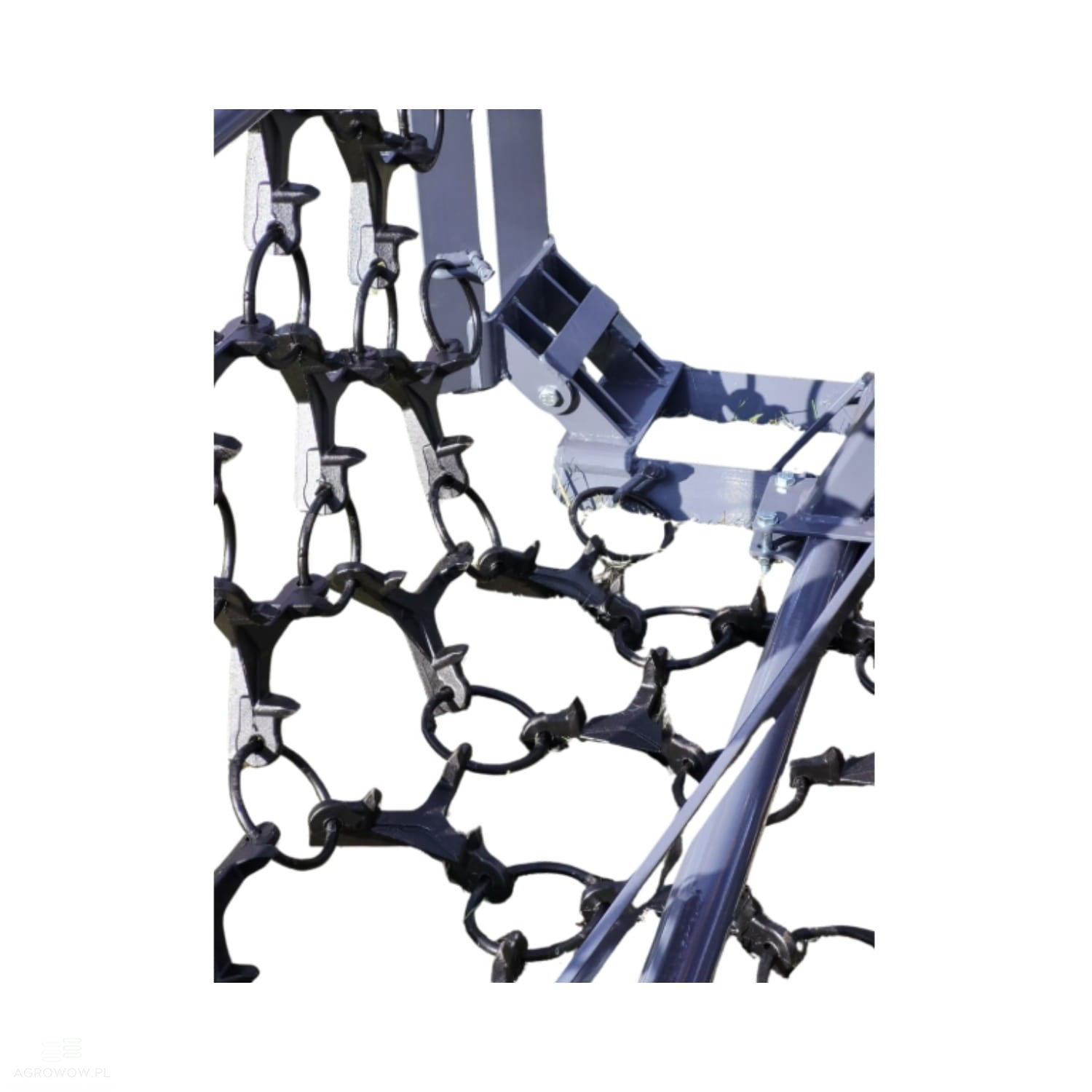

• Both the frame and the working mesh are made of cast-iron, toothed elements with high wear resistance.

• Thanks to special hinges, the entire structure remains completely stable during fieldwork as well as during transport.

• The working elements used in the meshes feature a fully reversible design, allowing them to be turned over for continued operation — significantly extending the machine's lifespan and reducing its running costs.

• The 6000 mm chain harrow is an agricultural machine created for large farms and commercial service enterprises where durability, high output, and work efficiency matter most.

• It is excellent for harrowing meadows, leveling irregularities, maintaining pastures, and anywhere land reclamation and soil structure improvement are required.
